__________________________________________________________________________________________
Congratulations on your new Sable Frame B2 purchase! The material included is our ISF Certified
CineWhite® UHD-B which produces accurate colors in a light controlled environment as the director intended.
In order for the CineWhite® UHD-B to maintain its projection qualities and optimum performance
please refer to the list below for proper maintenance and cleaning.
•
Use a dry microfiber cloth to remove dust from the screen's surface.
•
When cleaning, use a damp microfiber cloth with warm water to remove any marks.
•
Never rub or apply pressure when cleaning the surface.
•
Never attempt to use any solutions, chemicals, or abrasive cleaners on the screen surface.
•
To avoid damaging the screen, avoid touching it directly with your fingers, pens/pencils or any other
sharp or abrasive objects.
JA12142021

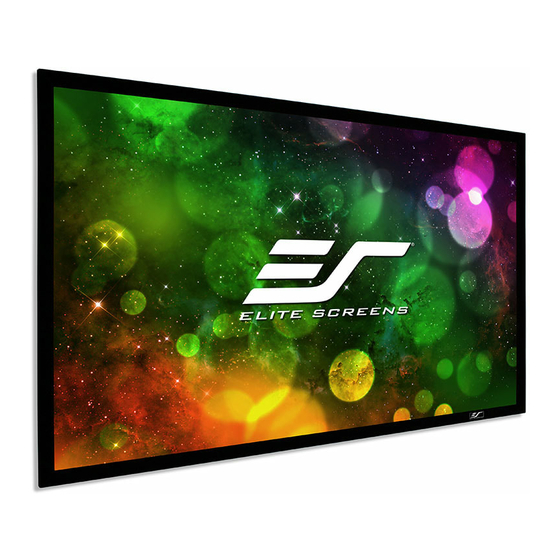

Matte White Fixed Frame Screen
www.elitescreens.com
Sable Frame B2 Series
Featuring CineWhite® UHD-B
USER'S GUIDE – M Type
U-00199
V 2.1
1
Advertisement
Related Manuals for Elite Screens Sable Frame B2 Series
Summary of Contents for Elite Screens Sable Frame B2 Series
- Page 1 Sable Frame B2 Series Matte White Fixed Frame Screen Featuring CineWhite® UHD-B USER’S GUIDE – M Type V 2.1 __________________________________________________________________________________________ Congratulations on your new Sable Frame B2 purchase! The material included is our ISF Certified CineWhite® UHD-B which produces accurate colors in a light controlled environment as the director intended.
- Page 2 Frame Parts List A. Vertical Frame x 2pcs B. ½ Horizontal Frame x2 pcs C. ½ Horizontal Frame x 2 pcs Hardware Parts List M4*4 D5*4 M4*4 D5*4 Black 92” 100” 110” 120” 135” 150” 165” 180” 200” Item Parts List Center Joints- M4 (bottom position) Center Joints-D5 (top position) Elbow Joints M4 (bottom position)
-
Page 3: Frame Assembly
Frame Assembly Step 1: Place the EPE sponge (foam) sheet on the ground of the area where the screen will be assembled. Step 2: Position the pieces of the frame on the EPE sponge in the arrangement shown below. Step 3: Insert center joint (a/b) connectors into one-half of the horizontal frame (B/C) and secure with the M4x7 screws (g) as shown in the illustration below. - Page 4 Step 5. Secure the elbow joints by fastening them with M4x7 screws (g), 4 at each corner. Screen Material Step 6: Put on the white gloves (p) and carefully unroll the screen material on a clean surface from the roller to the other side as shown below.
-
Page 5: Back Side
Step 8: Insert the rods (r) through the sleeves according to their corresponding lengths on each edge of the screen as shown below. The short rods (top/bottom) will overlap to secure a firm grasp in the middle areas. (Black tips) Back Back Side Side... - Page 6 First connect on four corners, steps 1-4. make sure all four corners are fixed before proceeding with next spring. Continue to attach the remaining springs to the material in steps 5-12 in the follow order. JA12142021 www.elitescreens.com U-00199...
-
Page 7: Installation
Step 10: Insert the Center Support Bar (o) into the upper top groove on the back of the frame with the bottom end near the approximate center point of the frame and rotate it in at an angle so that both ends of the bar are in alignment with the groove. - Page 8 Step 12: Position the fixed frame screen onto the top wall brackets (fig 1) as shown below and push down at the center of the top of the frame (fig 2) to secure. For Technical Support or an Elite Screens contact in your area, visit www.elitescreens.com...
