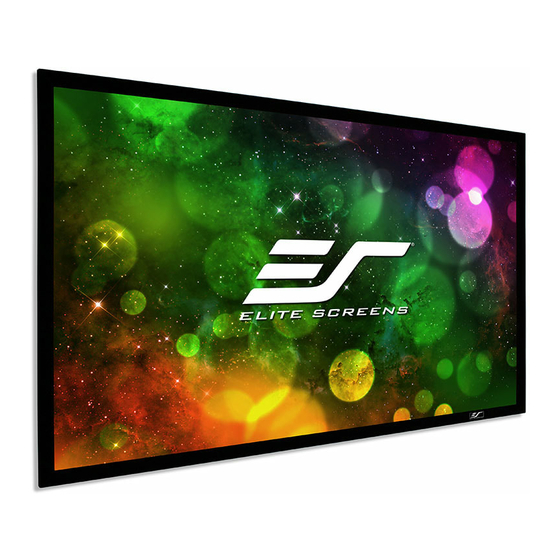

CineWhite® UHD-B (Matte White) Fixed Frame Projection Screen
Thank you for choosing an Elite Screens fixed frame projection screen! Congratulations on your new Sable Frame B2 purchase! Please read
through this user guide before utilizing the screen. Correct usage and maintenance will ensure a long product life. The front projection material
CineWhite® UHD-B is ISF Certified for accurate color reproduction in a controlled room environment.
Care & Use Instructions
Dust, dirt and scratches on the projection surface will affect the picture quality, please take note of the points below to prevent that from
occurring:
1. Do not touch the projection surface with your hands
2. Do not write or draw on the projection surface
3. Do not use fingers or sharp objects to point on the projection surface; this will damage the screen material.
4. Use a soft-damp cloth to clean the projection surface; do not use chemical cleaning agents or alcohol.
5. Use clean water when dampening the cleaning cloth and do not rub against the material to clean it.
CAUTION: The screen should be assembled in a temperature range from 68°-78° F (20°-26° C).
.
Overstretching the screen material in a temperature below the recommended range can cause permanent
damage including ripping and/or tearing which is not covered under warranty.
Frame Parts List
A. Vertical Frame x 2 pcs
B. ½ Horizontal Frame x 2 pcs
C.
½ Horizontal Frame x 2 pcs
A.
F.
REV040819BR-Z
Sable Frame B2
USER'S GUIDE
A
Hardware Parts List
B.
C.
G.
H.
Series
B + C
C + B
D.
I.
www.elitescreens.com
A
E.
J.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elite Screens isf CineWhite UHD-B Sable Frame B2 Series
Summary of Contents for Elite Screens isf CineWhite UHD-B Sable Frame B2 Series
- Page 1 USER’S GUIDE Thank you for choosing an Elite Screens fixed frame projection screen! Congratulations on your new Sable Frame B2 purchase! Please read through this user guide before utilizing the screen. Correct usage and maintenance will ensure a long product life. The front projection material CineWhite®...
- Page 2 100” 110” 120” 135” 150” Item Parts List Screen Screen Screen Screen Screen Center Joints Springs Elbow Joints 32/32/4 Large Screw/Washer/Small Screw 32/32/4 32/32/4 32/32/4 32/32/4 Pull Hook Wall Bracket Drywall anchor/Screw/Washer 4/4/4 4/4/4 4/4/4 4/4/4 4/4/4 Short/Long Tension Rods Center Support Bar Tension Rod Cap Note: Additional spare parts may be included.
- Page 3 To prevent permanent damage to the screen material, be sure your hands are clean for the next step. Step 5. Carefully unroll the screen material face-down on, top of the assembled frame, from one side of the frame to the other side as shown below. Back Side Step 6.
- Page 4 Step 9 Two people are suggested for this step. Place the Center Support Bar (I) into the top groove on the back of the frame (not the one where the spring inserts) and align with the screw holes on the frame at the approximate center point of the frame. Carefully pull the bottom horizontal frame outward and also align the Center Support Bar (I) with the screw holes on the frame.
- Page 5 Installation Step 11 . Measure the overall length and height of the frame and drill holes for the Brackets (F). Line up the wall brackets with the drilled holes on the installation location and screw them in using a Phillips screwdriver. If not installing into a structural wood stud, use a hollow wall Anchor, the Screws, and Washer (G) with a screwdriver.
- Page 6 5. When not in use, cover over the screen with a furniture sheet to protect it from dirt, grime, paint or any other impurities. 6. Spare Parts should be placed out of reach of small children in accordance with household safety guidelines. For Technical Support or an Elite Screens contact in your area, please visit www.elitescreens.com...
