Pre-Installation
1. Carefully unpack the screen.
2. Always handle the screen in a leveled position on a clean surface.
Installation Instructions

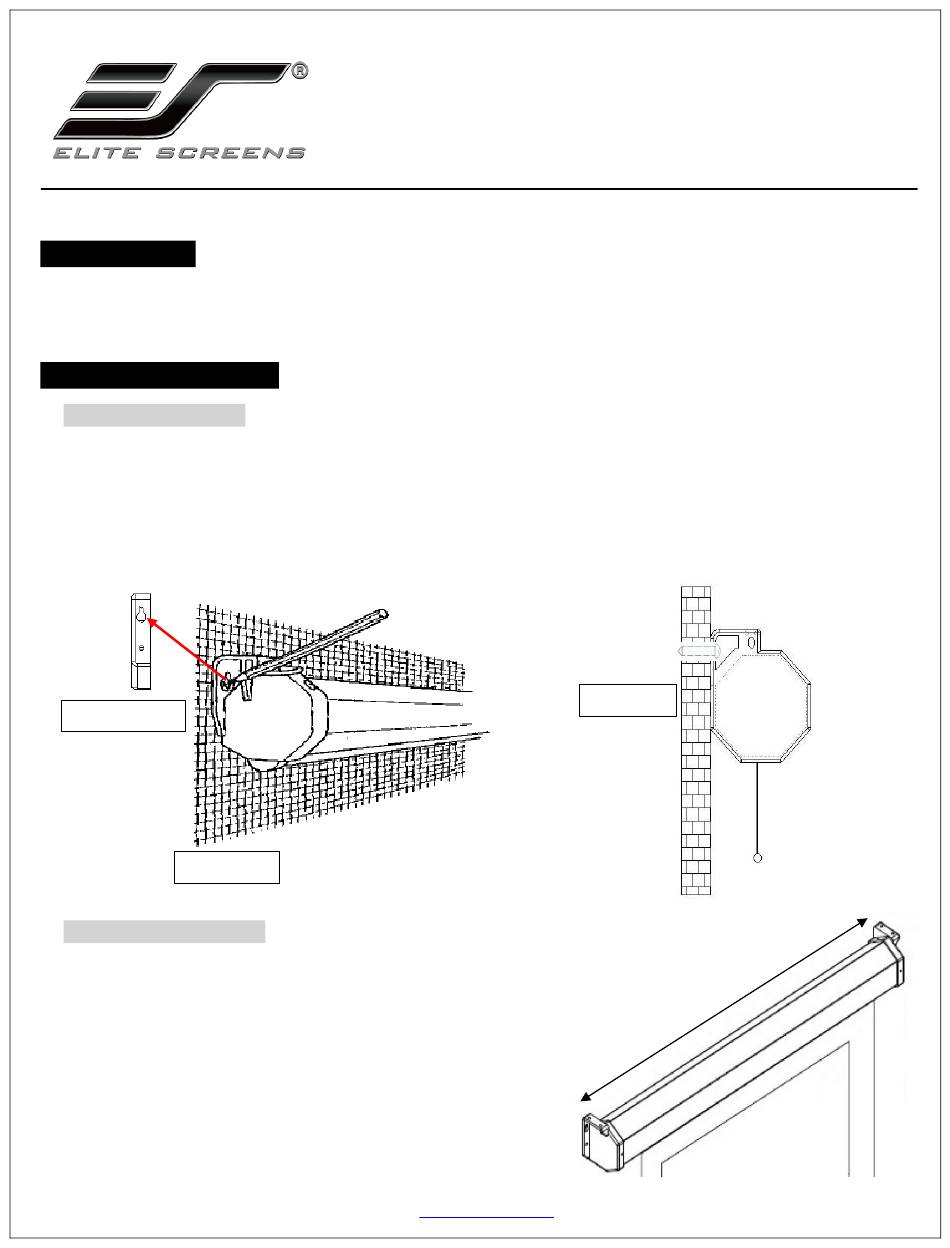

Flush Wall Mounting
1. Measure the distance between the keyholes located on the back of the end cap
2. Mark the location of where the screen is to be installed for the pre-drilled hole.
3. After marking the area and drilling the hole, insert the proper screw into the drilled hole and leave
about 1/8" of an inch from the wall to mount the screen.
4. Mount your screen from the keyhole located on back of screen's left and right end cap.
Back of end cap
Front view
Flush Ceiling Mounting
1.
Measure the distance between the top screw holes
located on the top of the end caps.
2. Mark the location of where the screen is to be installed
for the pre-drilled hole.
3. Drill your hole, use a hollow wall anchor if needed
4. Insert the proper screw into the drilled hole and secure
the screen to the ceiling.
Rev. V09042023DT (DS0153)
Manual B Series

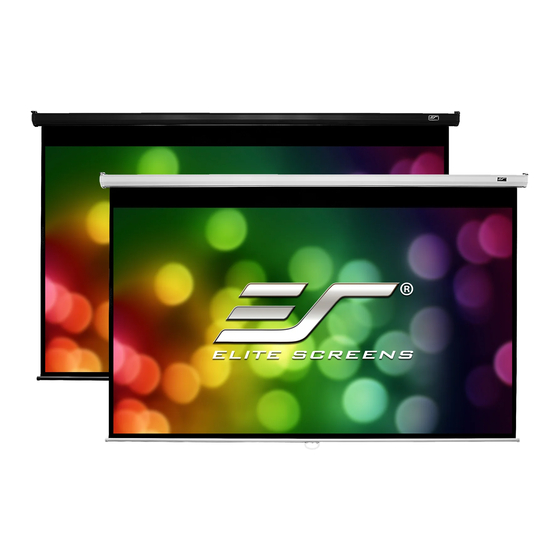

Manual Pull-Down Projection Screen
USER'S GUIDE (E/H type)
www.elitescreens.com
Side view
1
Advertisement
Table of Contents
Related Manuals for Elite Screens Manual B Series
Summary of Contents for Elite Screens Manual B Series
- Page 1 Manual B Series Manual Pull-Down Projection Screen USER’S GUIDE (E/H type) Pre-Installation 1. Carefully unpack the screen. 2. Always handle the screen in a leveled position on a clean surface. Installation Instructions Flush Wall Mounting 1. Measure the distance between the keyholes located on the back of the end cap 2.
- Page 2 Ceiling Suspended Mounting (additional hardware required) Optional installation using a chain to hang the screen from the ceiling. 1. You can also hang the screen on a ceiling by using a chain and hang it by the two loops (models 71- 120) located on each end of the case or by the end cap’s ears (models 135-170).
- Page 3 The installer must insure that the fasteners used are of adequate strength and suitable for the mounting surface chosen. For more information, technical support or your local Elite Screens contact, please visit www.elitescreens.com...
- Page 4 SCREEN MATERIAL DISCLAIMER: At first, the screen material may have a series of noticeable horizontal lines on its surface. These are known as memory lines. Memory lines are caused when the pliable projection material is rolled up and stored for the duration between its production and sale.
- Page 5 スクリーンの素材の免責事項： スクリーン生地は、出荷直後に限り、その表面に、目で見える水平の線が付いている場合があります。これは、「メモリーライン」と 呼ばれる既知の現象です。メモリーラインは、スクリーンの在庫期間、スクリーン生地が巻き上げられたままの状態で保存された ことが原因で発生する現象です。この現象は、正常であり、かつ、簡単に直るものです。また、テンションなしのスクリーンでは、 スクリーン生地の縁の部分がカールしていることがあります。これは主に気温が低いことに起因して発生する現象です。メモリー ラインやカールを直すには、設置後の最初の数日間、部屋を暖かくした状態（24 度以上）でスクリーンを下ろしたまま放置し、そ の後、通常の使用（アップ/ダウン）を開始してください。放置することでスクリーンの生地を伸ばし、メモリーラインやカールを直 すことができます。万一、数日経っても直らない場合、スクリーンを末永くご使用いただけるよう、交換致しますので販売店までお 申し付けください。 AVISO SOBRE MATERIAL DE TELA DE PROJEÇÃ O: Inicialmente, o material da tela poderá ter uma série de linhas horizontais visí veis na sua superfí cie, no iní cio. Estas são conhecidas como linhas de memória.
- Page 6 Standard throw projected image shown below (waves are not visible) This short throw projected image shown below, demonstrates how waves on the surface become more pronounced: Actual Projection Images by two different Elite Screens model with Standard Throw Projector (Model #:ViewSonic Pro8300) vs. Short Throw Projector (Model # :BenQW710ST) Rev.
- Page 7 IRECT UNLIGHT ISCLAIMER Projection Screens from any maker are not designed for use as a window curtain and should never be exposed to direct sunlight. Prolonged exposure to solar radiation will destroy synthetic materials and such damage is not covered by our standard warranty. See examples below.
