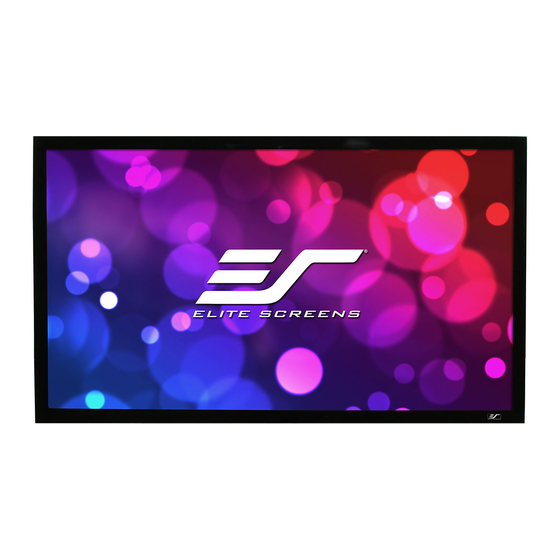

Elite Screens Ez-Frame Series User Manual
Fixed frame screen
Hide thumbs
Also See for Ez-Frame Series:
- User manual (26 pages) ,
- Supplementary manual (2 pages) ,
- User manual (10 pages)
Related Manuals for Elite Screens Ez-Frame Series
Summary of Contents for Elite Screens Ez-Frame Series
- Page 1 Fixed Frame Screen Elite Ez-Frame Series User’s Guide MATTE WHITE & HIGH CONTRAST GRAY...
- Page 2 ASSEMBLING 1. Insert both corner joint connectors into the long (horizontal) frame (see fig.1) Long frame Push Push Joint ( fig.1) 2. Join all four frame parts together following the steps showed below. (fig.2) Push Push Short frame Short frame...
- Page 3 Insert the exposed ends of the joint connectors into the short (vertical) frame and align the four corners so that they meet at perfect right angles Push Push ( fig.2) 3. After making sure that all four corners join at right angles to form a perfect rectangle, fasten the four angles together by using the (x8) joint screws included.
- Page 4 4. Lay out the screen and tension rods on a clean and dry surface. Pass the screen tension rods through the sleeves according to their corresponding lengths on each edge of the screen as seen below. (see fig.4) Screen Push Steel rod Tension Rod Steel rod...
- Page 5 ⑥ ⑥ ⑤ ② Fix plate Push ④ ① ③ ② ④ ⑦ ⑧ ⑧ ( fig.6) *Note: Numbers indicate recommended order that you should attach your fix plates. Attaching Fix Plates 1. Start at the left side working toward the right and then from top to bottom of the frame attaching the screen material.
- Page 6 Method 2 (larger than 135" diagonals) small wall bracket 7pcs Position the screen with the OVERALL attached surface onto the top OVERALL HEIGHT wall bracket as shown in (fig.8). HEIGHT - 1/4" Push down at the center of the bottom frame rail to hook onto the lower wall bracket ( fig.8) CAUTION...
- Page 7 *(see exceptions below) after the DOA unit is received and/or confirmed defective. Once the product is received, Elite Screens will send out a new *unit to the customer by ground service (subject to inventory availability). Should a problem be reported after the 7-day grace period, the item must be shipped to us for warranty repair.
- Page 8 REGISTER YOUR ELITE PRODUCT WO WAY TO REGISTER YOUR WARRANTY WITH LITE CREENS A. On Line (Faster and Easier) www.elitescreens.com/register.html B. Fill out & Fax to (562) 483-8498, Attn: Customer Service Dept. *Your Name: _______________________________________________________ Address: ____________________________________________________________ City/State/Zip ________________________________________________________ *Email Address: ______________________________________________________ *Phone: _____________________________________________________________ *Screen Model: _______________________________________________________ *Serial Number: _______________________________________________________...
