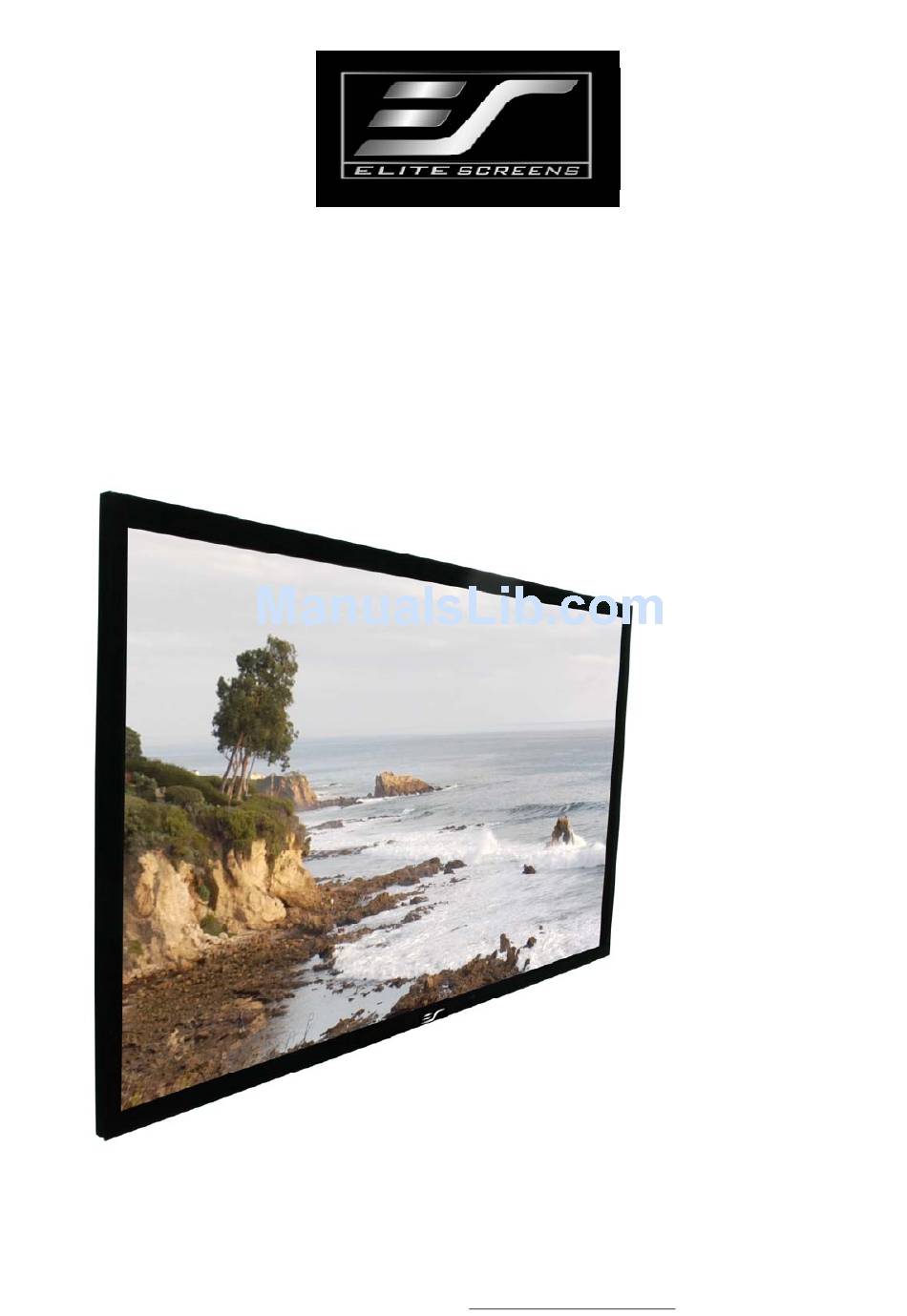

- Page 1 Elite Ez-Frame Series Fixed Frame Projection Screen User’s Guide Ver. 1.2 www.elitescreens.com / eliteinfo@elitescreens.com...
-
Page 2: Parts List
2 pcs Please make sure all parts are included in your package before proceeding to assemble your Elite Screens fixed frame projection screen. ASSEMBLING THE FRAME 1. Insert joint connector to horizontal frame piece and then fasten it with 2 screws 2. - Page 3 Please do not tighten the screws completely, to make sure the frame piece lines up correctly. 3. Insert both corner joint connectors into the long (horizontal) frame (see fig.1) Long frame Push Push Joint 4. Join all four frame parts together following the steps showed below. (fig.2) ( fig.1) Push Push...
- Page 4 Insert the exposed ends of the joint connectors into the short (vertical) frame and align the four corners so that they meet at perfect right angles Push Push ( fig.2) 5. After making sure that all four corners join at right angles to form a perfect rectangle, fasten the four angles together by using the (x8) joint screws included.
- Page 5 Tension Rod (Horizontal) x 4 Tension Rod (Vertical) x 2 Screen Push Tension Rod (horizontal) eel r eel r Push Tension Rod (Vertical) Push ( fig.4) Note: Please follow the next instructions carefully to assure the screen material is properly installed on the frame. 2.
-
Page 6: Center Support
Attaching the Fix Plates___ 1. Make sure that the material and frame are both laying face down on a clean, dry and non-abrasive surface. 2. Center the material inside the frame. Please note the material will be noticeably smaller because stretching the material is required to create a sufficient amount of tension for perfect material flatness. -
Page 7: Installation
3. Slide the top end of the bar into the top center point location to complete center support bar installation. This will provide added stability to your frame and added tension to the material. Center Support Bar (Fig. 8) Installation M ethod 1 (smaller than 135"... - Page 8 Method 2 (larger than 135" diagonals) small wall bracket 7pcs Position the screen with the OVERALL attached surface onto the top OVERALL HEIGHT wall bracket as shown in (fig.8). HEIGHT - 1/4" Push down at the center of the bottom frame rail to hook onto the lower wall bracket ( fig.8) (fig.
-
Page 9: Warranty Policy
DOA (Defective on Arrival) unit with a brand new replacement *(see exceptions below) after the DOA unit is received and/or confirmed defective. Once the product is received, Elite Screens will send out a new *unit to the customer by ground service (subject to inventory availability). Should a problem be reported after the 7-day grace period, the item must be shipped to us for warranty repair. - Page 10 Europe: Elite Screens GmbH Elite Screens Europe GmbH Lübecker Straße,122087 Hamburg, Germany Tel: +49-40-30392494 Fax: +49-40-49219200 info@elitescreens.eu www.elitescreens.eu Asia: Elite Screens China Ltd. Longxi Duimianling Industry Zone Longcheng Longgang District, ShenZhen GuangDong, China Tel: +86-(0)755-8461-7989 Fax: +86-(0)755-8461-7669 info@elitescreens.com.cn www.elitescreens.com.cn Taiwan: Elite Screens Taiwan Corp.
