Thank you for choosing an Elite Screens fixed frame projection screen! Congratulations on your new StarFrame purchase! Please read
through this user guide before utilizing the screen. Correct usage and maintenance will ensure a long product life.
Care & Use Instructions
Dust, dirt and scratches on the projection surface will affect the picture quality, please take note of the points below to prevent that
from occurring:
1. Do not touch the projection surface with your hands
2. Do not write or draw on the projection surface
3. Do not use fingers or sharp objects to point on the projection surface; this will damage the screen material.
4. Use a soft-damp cloth to clean the projection surface; do not use chemical cleaning agents or alcohol.
5. Use clean water when dampening the cleaning cloth and do not rub against the material to clean it.
A. Vertical Frame x 2pcs
A.
E.
I.
04/21/17

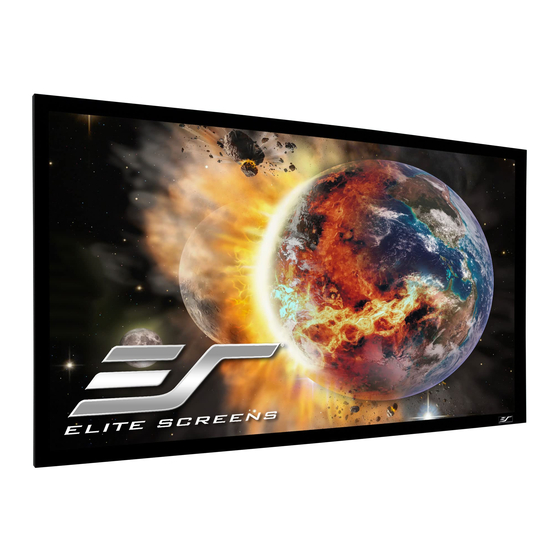

StarFrame
Fixed Frame Screen
USER'S GUIDE
B. ½ Horizontal Frame x 4 pcs
A
Hardware Parts List
Series
Frame Parts List
B+C
C+B
B.
F.
www.elitescreens.com
C. ½ Horizontal Frame x 2pcs
A
C.
D.
G.
H.
J.
1
Advertisement
Table of Contents
Related Manuals for Elite Screens StarFrame Series
Summary of Contents for Elite Screens StarFrame Series
- Page 1 Fixed Frame Screen USER’S GUIDE Thank you for choosing an Elite Screens fixed frame projection screen! Congratulations on your new StarFrame purchase! Please read through this user guide before utilizing the screen. Correct usage and maintenance will ensure a long product life.
- Page 2 100” 120” 135” Item Parts List Screen Screen Screen Center Joints Springs Elbow Joints Large Hex Screw/Small Hex Screw 4/32 4/32 4/32 Pull Hook Wall Bracket Allen Key Wood Screws/Anchors Tension Rods Center Support Bar Note: Additional spare parts may be included. Assembly Step 1.
- Page 3 To prevent permanent damage to the screen material, be sure your hands are clean for the next step. Step 5. Carefully unroll the screen material face-down on, top of the assembled frame, from one side of the frame to the other side as shown below.
- Page 4 Step 9 Two people are suggested for this step. Place the Center Support Bar (J) into the top groove on the back of the frame (not the one where the spring inserts) at the approximate center point of the frame. Carefully pull the bottom horizontal frame outward and place the Center Support Bar (J) at the approximate center point of the frame.
- Page 5 Installation Step 11 . Measure the overall length and height of the frame and drill holes for the Brackets (F). Line up the wall brackets with the drilled holes on the installation location and screw them in using a Phillips screwdriver. If not installing into a structural wood stud, use a hollow wall Anchor (H), then screw in the M5x50 Screws (H) with a screwdriver.
