- Page 1 Source 4 HPL to LED Retrofit Installation and User Manual Version 1.0.0 Part Number: 7067M1200-1.0.0 Rev: F Released: 2016-11...
- Page 2 This product is protected by one or more of the following U.S. Pate nts: US 9,261,241 and 9,273,831. ETC intends this document, whether printe d or electronic, to be provided in its entirety. This product is intended for professional use only. Read this entire document before using...
-
Page 3: Table Of Contents
Color rendering and quality ....5 Contacting ETC ..... 6 Retrofit Kit Installation. - Page 4 Cleaning and Maintenance... 15 Cleaning Source 4 ....15 Recommended Storage ....16 Cleaning Lenses .
-
Page 5: Introduction

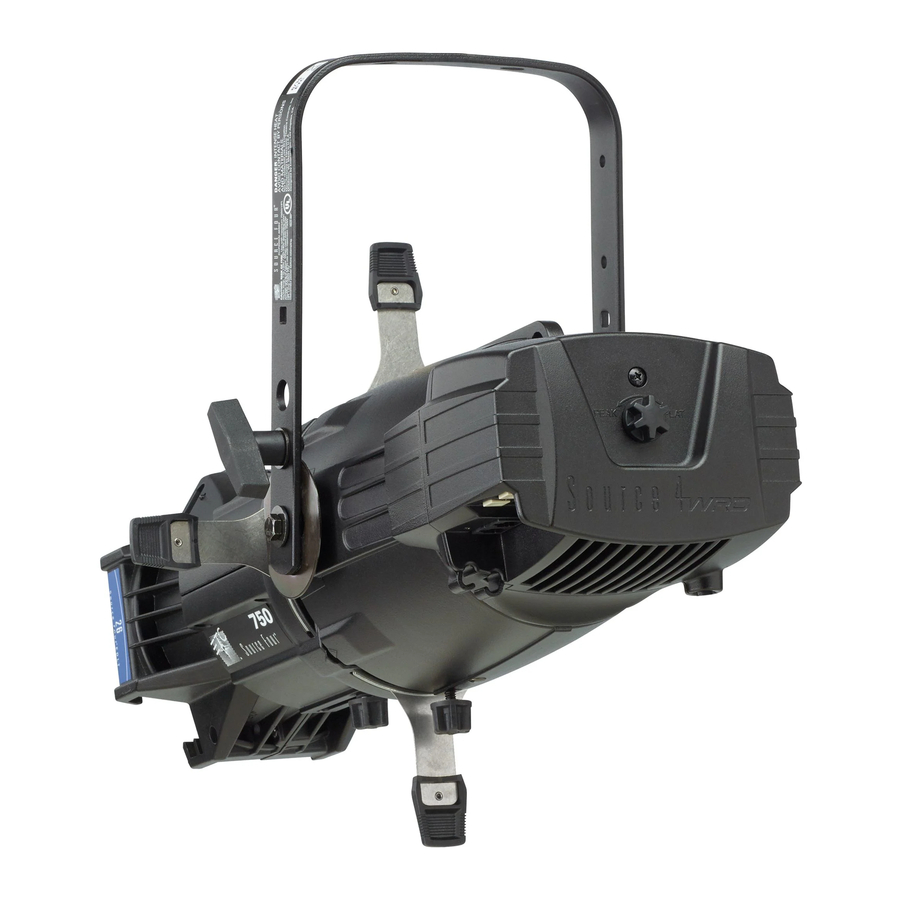

Source 4 LED retrofit brings a new tool to your lighting inventory. Source 4 expands the options for existing Source Four fixtures and adds a new white LED fixture to the ETC family. Source 4 shown installed... -
Page 6: Safety
WARNING: Note the following safety warnings before use: • Do not mount the Source 4wrd fixture on or near a flammable surface. • Do not use the Source 4wrd below 5°C (41°F). • Minimum storage temperature is 5°C (41°F). When the... -
Page 7: Specifications
LEDs • 4 CREE LED modules • 30,000 hour estimated L70 rating (life-test in progress, results pending) Optical • Compatible with all ETC Source Four lens tubes Control • DMX512-A compliant • DMX in and thru via two RJ45 connectors •... -
Page 8: Sensor Dimmer Settings
The SCR Off Time may need to be increased from the default setting. Contact ETC for assistance in changing the SCR off time, or any other CEM classic, CEM+, or CEM3 settings. For the most current information on additional dimmer performance testing for both ETC and non-ETC dimmers, please reference our website at: etcconnect.com/Support/Articles/Dimmer-Settings-for-Use-with-Source-... -
Page 9: Color Rendering And Quality
Contacting ETC If you are having difficulties, your most convenient resources are the references given in this user manual. To search more widely, try the ETC Web site at etcconnect.com. If none of these resources is sufficient, contact ETC Technical Services directly at one of the offices identified below. Emergency service is available from all ETC offices outside of normal business hours. -
Page 10: Retrofit Kit Installation
The lamp housing is now loose and can be removed. Note: The burner assembly is no longer needed. If you would like ETC to recycle the burner assembly, contact ETC Technical Services for more information. See Contacting page Source 4... -
Page 11: Install Source 4
Install Source 4 WARNING: RISK OF FIRE OR ELECTRIC SHOCK: Install this kit only to luminaires that have the construction features and dimensions shown in the graphics and where the input rating of the retrofit kit does not exceed the input rating of the luminaire. -
Page 12: Fixture Installation
C-clamp and safety cable The C-clamp attaches the fixture to the mounting pipe and allows you to adjust the position of the mounted fixture. ETC recommends using 1.5” schedule 40 pipe. 1: Tightly fasten the C-clamp to the yoke with the provided yoke bolt and lock washer. -
Page 13: Connect Cables
1: If using DMX control, connect one RJ45 data cable for data-in and one for data-thru, as needed. • To order RJ45 to female XLR adapter, use ETC part number W6538. • To order RJ45 to male XLR adapter, use ETC part number W6539. -
Page 14: User Interface
WARNING: Do not use or store the Source 4wrd below 5°C (41°F). When the fixture has been stored or transported in freezing temperatures, allow it to warm to room temperature for a minimum of 1 hour prior to applying power. Applying power to a frozen fixture will cause damage to the fixture and void ETC warranty. -
Page 15: Focus The Fixture
Focus the fixture Z-adjustment knob The z-adjustment knob located on the rear of the Source 4 enables you to adjust the field of the LED light for specific applications. Adjustment knob This shows an ideal beam of uniform light Adjust towards “PEAK” to blend over-lapped beams Adjust towards “FLAT”... -
Page 16: Shape The Beam
B-size pattern holder: 3.12" Diameter holder: Holds 3” Holds 2.5” and 2.75” 2.75" Diameter diameter patterns diameter patterns 3.70" 3.70" Note: Because the Source 4wrd aperture is 3 inches wide, ETC recommends using A-size patterns for maximum pattern effectiveness. Source 4... -
Page 17: Cleaning And Maintenance
Allow it to warm to room temperature for a minimum of one hour before applying power. Note: After shipping or storing the Source 4wrd below 5°C (41°F), visually inspect the unit to ensure the low temperatures have not caused cracking of the LED array. -
Page 18: Cleaning Reflector
45°. The barrel should be firmly attached and the triangles should be aligned. 7: Reinstall the barrel rotation knob and tighten the retainer bolt. 8: Reinstall the LED lamp housing and tighten the attachment screw. See Install Source 4wrd page 7 Source 4... -
Page 19: Cleaning 5° And 10° Polymer Lenses
Cleaning 5° and 10° polymer lenses To quickly clean the lenses, remove dust with a blast of oil-free air. If this is not sufficient, follow these steps. CAUTION: Handle polymer lenses by their edges only. Never rub anything dry on a polymer lens. 1: Remove the beam focus knob at the bottom of the barrel. - Page 20 Web: etcconnect.com Copyright © 2016 Electronic Theatre Controls, Inc. All Rights Reserved. Product information and specifications subject to change. ETC intends this document to be provided in its entirety. 7067M1200-1.0.0 Rev F Released 2016-11 ...
