- Page 1 Instruction Manual Counter B.I.B. Dispenser Model No. 2499-00-200 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2020 Gold Medal Products Co. Part No. 110280...
-
Page 2: Table Of Contents
Counter B.I.B. Dispenser Model No. 2499-00-200 Table of Contents SAFETY PRECAUTIONS ........................... 3 INSTALLATION INSTRUCTIONS ........................5 Inspection of Shipment ............................5 Manual ..................................5 Model Description ..............................5 Items Included with this Unit ........................... 5 Setup ................................... 5 Electrical Requirements ............................. 6 Before You Plug In Machine .......................... -
Page 3: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 4 007_010914 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 5: Installation Instructions

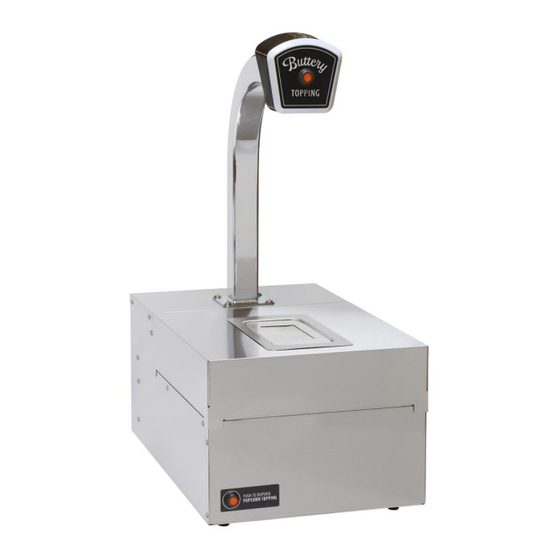

Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862. Model Description 2499-00-200 – Countertop pedestal style topping dispenser with an LED lighted sign, unit holds one 35 lb. bag of butter flavored topping. Items Included with this Unit •... -
Page 6: Electrical Requirements
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 7: Attaching The Butter Flavored Topping Bag
Counter B.I.B. Dispenser Model No. 2499-00-200 Attaching the Butter Flavored Topping Bag Use a maximum of 35 pound bag of topping for this unit. IMPORTANT: This product is not intended for use with volatile food products (i.e. real butter). 1. Remove the drip pan/insert and top cover from the holding pan base. -
Page 8: Operating Instructions
Counter B.I.B. Dispenser Model No. 2499-00-200 OPERATING INSTRUCTIONS Controls and Their Functions HEAT SWITCH (Power Switch): Three position rocker switch. HEAT ONLY (up position)—activates the LED lights, unit heating (to maintain topping temperature), and photo-eye sensor—pump is de-activated in heat only setting. -
Page 9: Adjusting Dispense Settings
Counter B.I.B. Dispenser Model No. 2499-00-200 Green Indicator = sensor ready Amber Indicator = popcorn detected Push Button Pump Switch Photo-eye Sensor (with Red indicator beam) Drip Pan/Insert (sits in cover) Photo-eye Sensor 1 AMP Fuse Timed Switch Push Button... -
Page 10: Prime Unit For Use
Counter B.I.B. Dispenser Model No. 2499-00-200 Prime Unit for Use Prime the dispenser lines after adding topping. 1. Set Heat Switch to HEAT & PUMP. 2. To properly prime the unit—hold a cup under nozzle and press a dispense button until topping comes out in a steady, bubble free liquid stream. -
Page 11: Care And Cleaning
Medium Size Container (for priming unit) 1. Make sure the unit has cooled completely before attempting to clean. 2. Fill a clean bucket half-full with hot water and Gold Medal Chlor-Tech Sanitizer (reference instructions on sanitizer container for appropriate amount). - Page 12 Counter B.I.B. Dispenser Model No. 2499-00-200 3. Nozzle is designed to be drip free. Butter flavored topping can accumulate and cause the nozzle to clog. If nozzle becomes clogged, use a paperclip or small diameter rod to clear the opening (3/32”...
-
Page 13: Troubleshooting
Counter B.I.B. Dispenser Model No. 2499-00-200 Troubleshooting Issue Possible Cause Solution No Power to the Unit A. No power to the unit A. Make sure unit is plugged in and Power Switch is ON (green switch light should be ON). If switch light does not turn on, have a qualified electrician check the power supplied to unit. - Page 14 Counter B.I.B. Dispenser Model No. 2499-00-200 Issue Possible Cause Solution Wrong Dispense Amount A. Pump needs to be primed A. See Prime Unit for Use in the Operating Instructions. B. Pump settings need B. Pump Speed Adjustment: Use adjustment adjustment.
-
Page 15: Maintenance Instructions
Counter B.I.B. Dispenser Model No. 2499-00-200 MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. -
Page 16: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 or place orders by phone or online:... -
Page 17: Cabinet Front View - Parts Breakdown
Counter B.I.B. Dispenser Model No. 2499-00-200 Cabinet Front View – Parts Breakdown See Tower View for parts breakdown. See Cabinet Rear View for parts breakdown. Part Number Part Number Item Part Description Item Part Description 2499-00-200 2499-00-200 LID (storage tank cover) -
Page 18: Cabinet Rear View - Parts Breakdown
14, 15* 16, 17 *CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order to avoid a hazard. Interior view shown without outer cabinet for parts reference only. - Page 19 Counter B.I.B. Dispenser Model No. 2499-00-200 Cabinet Rear View – Parts List Part Number Item Part Description 2499-00-200 PLASTIC FOOD TUBING (sold by the foot) 91375 HOSE CLAMP 7/16in - 1/2in 67843 8-32 X 1/4 PHIL PAN M/S 87314 PUMP BRACKET 2499 (2 required)
-
Page 20: Tower View - Parts Breakdown
Counter B.I.B. Dispenser Model No. 2499-00-200 Tower View – Parts Breakdown LEDs (fitted in housing, not shown) Tubing sold by the foot (not shown). Hose Clamp (fastens tubing) Heated Rope for pedestal tubing (not shown). Assembled View Part Number Item... -
Page 21: Wiring Diagram
Counter B.I.B. Dispenser Model No. 2499-00-200 Wiring Diagram Model No. 2499-00-200 gmpopcorn.com Page 21... -
Page 22: Warranty
© 2020 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
