- Page 1 Instruction Manual Antique Citation Model Series: 2119 Model 2119 (100) Model 2119NL 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2023 Gold Medal Products Co. Part No. 47699...
-
Page 2: Table Of Contents
Antique Citation Model Series: 2119 Table of Contents SAFETY PRECAUTIONS ........................... 3 INSTALLATION INSTRUCTIONS ........................5 Inspection of Shipment ............................5 Manual ..................................5 Model Description ..............................5 Items Included with this Unit ........................... 5 Setup ................................... 6 Electrical Requirements ............................. 8 Before You Plug In Machine .......................... -
Page 3: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 4 039_080614 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 5: Installation Instructions

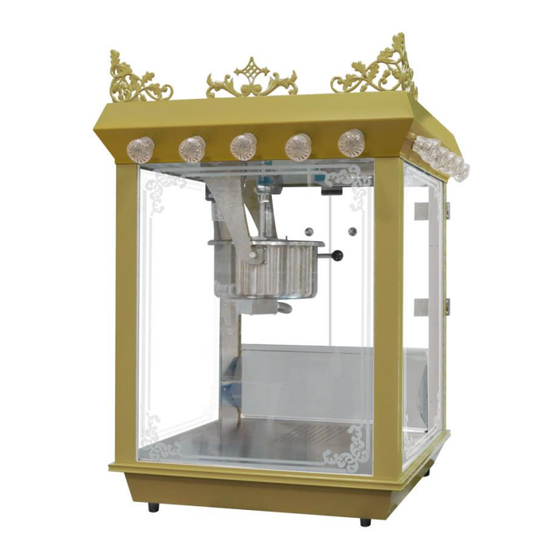

Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862. Model Description 2119 (100): Antique Citation 16 oz. Popcorn Popper, gold color cabinet with 15 vintage LED display lights. Unit has a forced air popcorn crisping system. 2119NL: Antique Citation 16 oz. Popcorn Popper, gold color cabinet; no display lights. -
Page 6: Setup
Antique Citation Model Series: 2119 Setup This unit has been tested at the factory. 1. Remove all packaging and tape prior to operation. 2. Place the unit on a sturdy, level base. 3. The Popper blower vents out the top of unit, allow adequate clearance for airflow. - Page 7 Antique Citation Model Series: 2119 7. The main power cord is located out the cabinet base (reference image below), a secondary, special power cord is provided for powering the oil dispense unit. These units are equipped with an aluminum oil line for connecting the oil dispense unit.
-
Page 8: Electrical Requirements
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 9: Operating Instructions
Antique Citation Model Series: 2119 OPERATING INSTRUCTIONS Controls and Their Functions LIGHTS SWITCH ON/OFF lighted rocker switch - supplies power to the exterior display lights (if equipped) and interior cabinet light. The green switch light ON indicates there is power to the lights. -
Page 10: Popping Corn Instructions
Antique Citation Model Series: 2119 Oil Dispense Oil System Warmer Kettle Heat Indicator Light Master Switch Switch Switch Oil Dispense Lights Switch Kettle Motor PB Switch Switch Popping Corn Instructions The popper is equipped with a corn, salt, and oil measure. We recommend flavored and colored coconut oil. -
Page 11: Care And Cleaning
Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage the kettle. 3. Mix 2 tablespoons (29.6 ml) of Gold Medal’s Heat’n Kleen (Item No. 2095) in 1 gallon (3.8 L) of water. -
Page 12: Daily Unit Cleaning Instructions
6. Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended. Ammonia cleaners will damage plastic doors/panels. Only use a non-ammonia cleaner, such as Gold Medal Watchdog Glass Cleaner (Item No. -
Page 13: Weekly Filter Cleaning Instructions
Antique Citation Model Series: 2119 Weekly Filter Cleaning Instructions The popcorn machine is equipped with an efficient and durable filtration system. The filter should be cleaned every week to maintain maximum efficiency. Steps to Clean Filter 1. Turn unit OFF and allow it to cool before removing filter. - Page 14 Antique Citation Model Series: 2119 Issue Possible Cause Solution Oil Pump Does Not Deliver A. Mini Circuit Breaker(s) on A. Check the Mini Circuit Breaker(s); if reset, Oil to Kettle (for units popper tripped (if then trips again, the unit must be inspected/...
-
Page 15: Agitator Set Collar Adjustment
Antique Citation Model Series: 2119 Agitator Set Collar Adjustment The following instructions describe how to properly adjust set collars on an agitator assembly with a fixed stir rod. Steps to Adjust Set Collars on Agitator with a Fixed Stir Rod Agitator assembly is adjusted while fastened to the kettle (image shown for general reference only). -
Page 16: The Following Sections Are For Qualified Service Personnel Only
Antique Citation Model Series: 2119 THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. Make sure all machine switches are in the OFF position before plugging the equipment into the receptacle. -
Page 17: Ordering Spare Parts
Web Page: gmpopcorn.com Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop, always purchase tempered glass. GLASS DIMENSIONS (Height x Width x Thickness) Front and Side Glass: 28 1/8”... -
Page 18: 16 Oz. Kettle Assembly (55166) - Agitator Assembly View
Antique Citation Model Series: 2119 16 oz. Kettle Assembly (55166) – Agitator Assembly View 55166 Overall Kettle 55166E Ag. Assy. 55199E Exp. Views Complete Agitator Assembly (Includes Lids) *See Parts See Kettle Bottom List note. Assy. section for parts breakdown... -
Page 19: 16 Oz. Kettle Assembly (55166) - Kettle Bottom Assembly
Antique Citation Model Series: 2119 16 oz. Kettle Assembly (55166) – Kettle Bottom Assembly 55199 Kettle Element 55199EX Kettle Bottom Assy. 55199E exp. views Top Lock Nut - Fastens each thermostat and ground. Install Lock Nut with triangle in UP position (as shown). - Page 20 Antique Citation Model Series: 2119 16 oz. Kettle Assembly (55166) – Kettle Bottom Assy. – Parts List Part Number Item Part Description 55166 16OZ KETTLE BOTTOM ASSY (Complete Assy.) 55200 TRANSFER PLATE ASSY (beneath heat element) 67944 KETTLE GASKET 41598...
-
Page 21: Cabinet Exterior - Front View
Antique Citation Model Series: 2119 Cabinet Exterior – Front View 2119-00-100 Inspection Cover Fan Grate (not shown, located (dome cover plate) on inspection cover) Display Lights on select Models only. Assembly includes socket and lens pieces shown (LED Bulb sold See Kettle separately). -
Page 22: Cabinet Exterior - Rear View
11, 12 9, 10* *CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified General 2119 (100) images shown for parts reference persons in order to avoid a hazard. -
Page 23: Door Hardware Kits - Individual Component Breakdown
Antique Citation Model Series: 2119 Door Hardware Kits – Individual Component Breakdown Complete Right Hand Door Complete Left Hand Door Hardware Kit (P/N 47055) Hardware Kit (P/N 47054) (contains all parts shown above) (contains all parts shown above) Part Number... -
Page 24: Cabinet Interior - Hanger Assembly/Controls View
Antique Citation Model Series: 2119 Cabinet Interior – Hanger Assembly/Controls View 2119 19, 20 17*, 18 22, 23 10, 11 12, 13 *See Parts LED Bulb List note. Assembly General images shown for parts reference only. Part Number Part Number... -
Page 25: Cabinet Interior - Corn Pan View
Antique Citation Model Series: 2119 Cabinet Interior – Corn Pan View 2119 3, 2 1, 2 See Warmer Blower 9, 10, 11 Assembly section for parts breakdown. Corner Cover Fasteners General image shown for parts reference only. Part Number Item... -
Page 26: Warmer Blower Assembly
Antique Citation Model Series: 2119 Warmer Blower Assembly 2022E – 47563 Blower Assemb ly Warmer Blower Assembly (PN 47563) Female Cordset 15, 18 15, 16 (not shown here) Warmer Blower – Interior View General images shown for parts reference only. -
Page 27: Dome Interior - Electrical Components - Parts Breakdown
Antique Citation Model Series: 2119 Dome Interior – Electrical Components – Parts Breakdown 2119-00-100 Reference Setup section for bulb installation. Assembly includes socket and lens pieces shown (LED Bulb sold separately). LED Cabinet Lighting Parts LED Bulb Assembly Display Lights on select Models only. - Page 28 Antique Citation Model Series: 2119 Dome Interior – Electrical Components – Parts List Part Number Item Part Description 2119-00-100 2119NL LED REPLACEMENT NO PLATE 100544 100544 POWER SUPPLY 24VDC 20W 55394 55394 20W POWER SUPPLY BRACKET 55414 55414 3 POSITION WIRE CONNECTOR...
-
Page 29: Safety Labels
Antique Citation Model Series: 2119 Safety Labels Kettle Lead-In Label Unit Labels Power Cord Label Item Part Description Part Number UNIVERSAL POPPER DECAL 41019 MAIN GROUND LABEL 42375 WARNING, SURFACE CONTACT 87087 CONDUIT WARNING LABEL 82840 WARNING LABEL CORD 68720... -
Page 30: Wiring Diagram
Antique Citation Model Series: 2119 Wiring Diagram Model No. 2119-00-100 gmpopcorn.com Page 30... - Page 31 Antique Citation Model Series: 2119 Model No. 2119NL gmpopcorn.com Page 31...
-
Page 32: Warranty
© 2023 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
