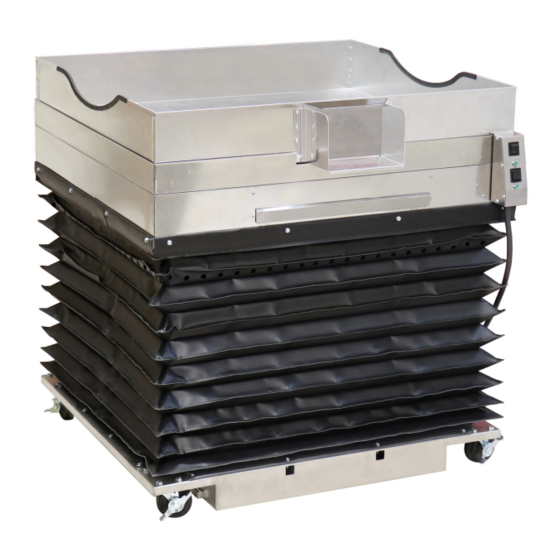

- Page 1 Instruction Manual Karmel Kool Table Model No. 2169-00-100 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2019 Gold Medal Products Co. Part No. 110208...
-
Page 2: Table Of Contents
Karmel Kool Table Model No. 2169-00-100 Table of Contents SAFETY PRECAUTIONS ..........................3 INSTALLATION INSTRUCTIONS ......................5 Inspection of Shipment ..............................5 Manual ....................................5 Model Description ................................5 Items Included with this Unit..........................5 Setup ....................................6 Electrical Requirements ............................7 Before You Plug In Machine .............................7 OPERATING INSTRUCTIONS ........................ -
Page 3: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215... - Page 4 007_010914 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 5: Installation Instructions
To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862. Model Description 2169-00-100: Karmel Kool Table – Adjustable height from 20” to 36”. 36” 20”... -
Page 6: Setup
Model No. 2169-00-100 Setup This unit has been tested at the factory. The table is designed for use with one Gold Medal 5 gallon or 10 gallon Corn Treat Mixer. Follow instructions below for table setup (reference images shown). 1. Remove all packaging and tape prior to operation. -
Page 7: Electrical Requirements
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 8: Operating Instructions
DOWN Indicator Operating Instructions This unit is designed for use with a Gold Medal 5 gallon or 10 gallon Corn Treat Mixer. 1. Turn Power Switch ON when ready to make a batch of caramel corn (the cooling fans will start). -
Page 9: Care And Cleaning
Karmel Kool Table Model No. 2169-00-100 Care and Cleaning DANGER Machine must be properly grounded to prevent electrical shock to personnel. DO NOT immerse in water. DO NOT clean appliance with a water jet. Always unplug the equipment before cleaning or servicing. -
Page 10: Maintenance Instructions
Karmel Kool Table Model No. 2169-00-100 MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. -
Page 11: Safety Stop Bracket
Karmel Kool Table Model No. 2169-00-100 Safety Stop Bracket Unit is equipped with a Safety Lock Bracket for use when servicing the lift mechanism. 1. Raise the table to the highest position, then turn the unit OFF and unplug it. -
Page 12: Control Pendant Orientation
Karmel Kool Table Model No. 2169-00-100 Control Pendant Orientation Depending on the placement of the table, the Control may need to be located on the opposite side of the unit. Follow the instructions below to re-route the cord out the opposite side of the unit (reference the images shown). -
Page 13: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 or place orders by phone or online:... -
Page 14: Unit Exterior - Parts Breakdown
Rear View – Power Cord Filter View *CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order to avoid a hazard. General images shown for reference only. - Page 15 Karmel Kool Table Model No. 2169-00-100 Unit Exterior – Parts List Part Number Item Part Description 2169-00-100 COOLING PAN ASSEMBLY 2169 101448 DOOR COOLING PAN CHUTE 46344 SCREW, 10-24 X 3/4 HXHD 41314 5IN FAN GRATE 74783 EXHAUST BLOWER 120V,60CY 48018 EXHST BLOWER PLUG &...
-
Page 16: Unit Interior - Parts Breakdown
Karmel Kool Table Model No. 2169-00-100 Unit Interior – Parts Breakdown 2169 -00 -10 0 Bellows may be held up with zip ties for service. Bellows MUST be refastened to base for use. 14 13 Top Axle View 6, 7... - Page 17 Karmel Kool Table Model No. 2169-00-100 Unit Interior – Parts List Part Number Item Part Description 2169-00-100 1/2-13 X 4 GRD 5 HHCS 101441 WASHER SS .5 ID X 1.10 OD 48428 NYLON THRUST WASH .500 ID 101400 1/2-13 GRADE 5 NYLOCK NUT...
-
Page 18: Wiring Diagram
Karmel Kool Table Model No. 2169-00-100 Wiring Diagram Model No. 2169-00-100 gmpopcorn.com Page 18... -
Page 19: Warranty
© 2019 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
