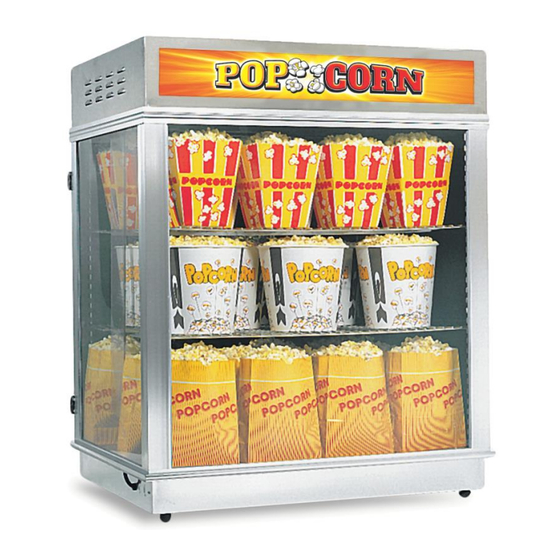

- Page 1 Instruction Manual Astro Staging Cabinet Model No. 2004, 2004SL, 2004SLN, 2008SL 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2022 Gold Medal Products Co. Part No. 40269...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 3 039_080614 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 4: Inspection Of Shipment
Astro Staging Cabinet Model No. 2004, 2004SL, 2004SLN, 2008SL INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual). -
Page 5: Electrical Requirements
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 6: Controls And Their Functions
Astro Staging Cabinet Model No. 2004, 2004SL, 2004SLN, 2008SL OPERATING INSTRUCTIONS Controls and Their Functions LIGHT SWITCH Two position, ON-OFF lighted rocker switch, provides power to the dome and cabinet lighting. The green switch light ON indicates there is power to the lighting. -
Page 7: Care And Cleaning
DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine. 7. Clean the glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended. Ammonia cleaners will damage the plastic panels. Use only non-ammonia cleaners, such as Gold Medal Watchdog Glass Cleaner (Item No. -
Page 8: Maintenance Instructions
Astro Staging Cabinet Model No. 2004, 2004SL, 2004SLN, 2008SL THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. -
Page 9: Ordering Spare Parts
Astro Staging Cabinet Model No. 2004, 2004SL, 2004SLN, 2008SL ORDERING SPARE PARTS 1. Identify the needed part by checking it against the photos, illustrations, and/or parts list. (General images may be used in manual for reference only.) 2. Use only approved replacement parts when servicing this unit. -
Page 10: Replacing Broken Glass
Model No. 2004, 2004SL, 2004SLN, 2008SL Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop, always purchase tempered glass. GLASS DIMENSIONS (Height x Width x Thickness) Model 2004 Series Front Glass: 32 3/16”... - Page 11 (for Sliding Door parts, see Sliding Door section). * CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified General image shown for parts reference only. persons in order to avoid a hazard.
-
Page 12: Cabinet Assembly - Parts List
Astro Staging Cabinet Model No. 2004, 2004SL, 2004SLN, 2008SL Cabinet Assembly – Parts List Part Number Item Part Description 2004SL, 2004 2008SL 2004SLN ROCKER SW 3 HOLE (switch box) 17473 17473 17473 ROCKER SWITCH LABEL 3 HL 61986 61986 61986... - Page 13 Astro Staging Cabinet Model No. 2004, 2004SL, 2004SLN, 2008SL Door Hardware Kits – Individual Component Breakdown Complete Right Hand Door Complete Left Hand Door Hardware Kit (P/N 47054) Hardware Kit (P/N 47055) (contains all parts shown above) (contains all parts shown above)
- Page 14 Astro Staging Cabinet Model No. 2004, 2004SL, 2004SLN, 2008SL Sliding Door Assembly – Parts List Complete RH Complete LH Door Assembly Door Assembly Part Number Item Part Description LH Door Assy. RH Door Assy. DOOR ASSY. COMP. (includes items below)
- Page 15 Astro Staging Cabinet Model No. 2004, 2004SL, 2004SLN, 2008SL Cabinet Motor Plate View LED Light Power Supply LED Light 2004 Motor Plate image shown for general parts reference only. Part Number Item Part Description 2004, 2004SL 2004SLN 2008SL LED REPLACEMENT...
- Page 16 Astro Staging Cabinet Model No. 2004, 2004SL, 2004SLN, 2008SL LED Lighted Sign Dome Assembly Sign Retainer Cover Plate 6, 7 8, 9 For Power Supply, see Cabinet Motor Plate View General LED Lighted Sign image shown for parts reference only.
- Page 17 Astro Staging Cabinet Model No. 2004, 2004SL, 2004SLN, 2008SL LED Neon Dome Assembly Power Supply for 6, 7 Sign (not shown) LED Sign Assembly LED Neon Assembly shown for general parts reference only. Part Number Item Part Description 2004SLN DOME ASSY W/ SIGN & TRANS (complete dome...
-
Page 18: Wiring Diagram
Astro Staging Cabinet Model No. 2004, 2004SL, 2004SLN, 2008SL Wiring Diagram Model No. 2004, 2004SL, 2004SLN gmpopcorn.com Page 18... - Page 19 Astro Staging Cabinet Model No. 2004, 2004SL, 2004SLN, 2008SL Model No. 2008SL gmpopcorn.com Page 19...
-
Page 20: Warranty
© 2022 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
