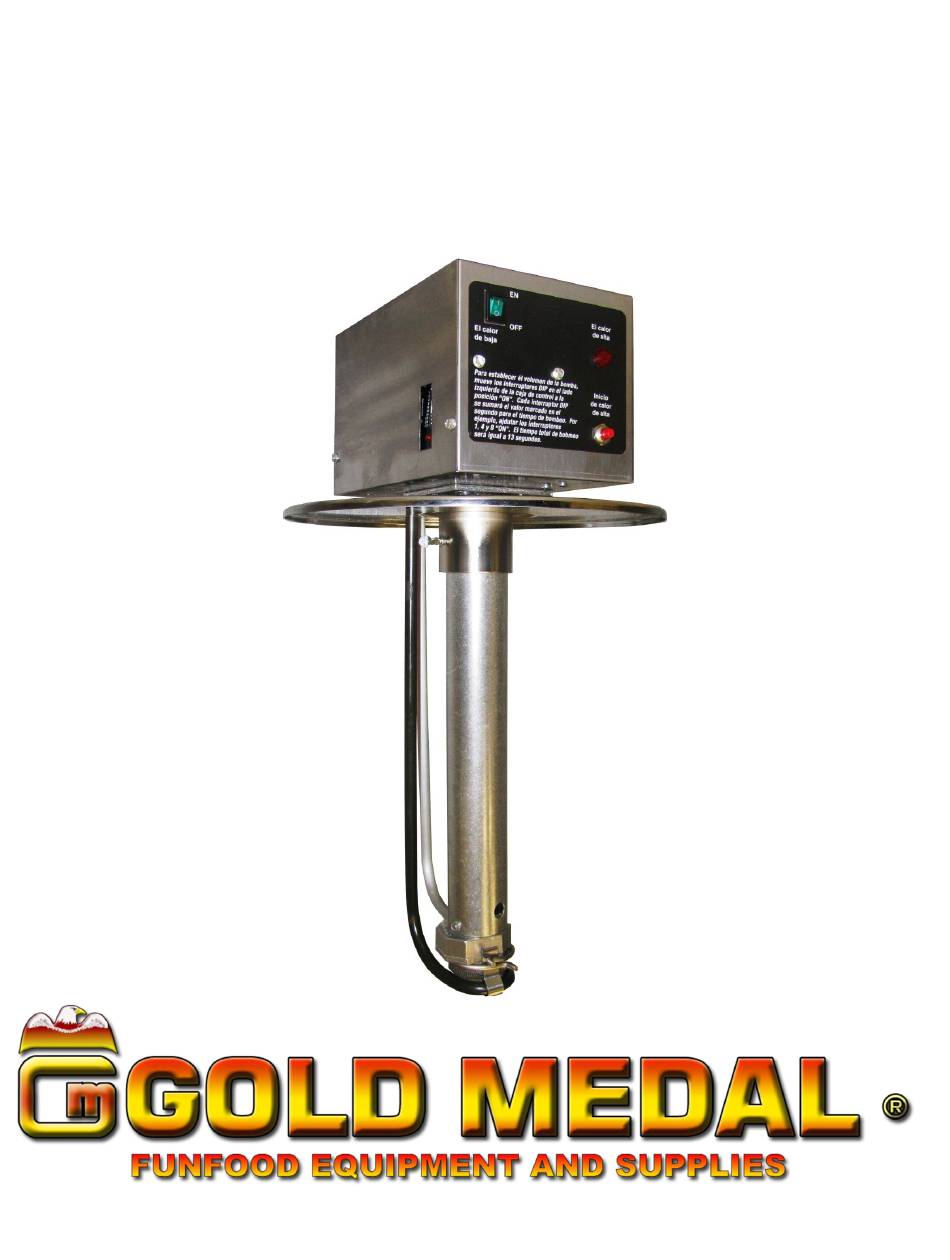

- Page 1 Part No. 79064M Bucket Pump Instruction Manual Model No. 2114M Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 http://www.gmpopcorn.com... - Page 3 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 4: Installation Instructions
008_051514 This machine is intended to be used with a Gold Medal popcorn popper. The popcorn machine will have a proper power cord to connect to the pump. Your electrician must furnish sufficient power for proper machine operation. We recommend the popper powering this unit be on a dedicated and protected circuit. -
Page 5: Before You Plug In Machine
4. DO NOT use a grounded to un-grounded receptacle adapter on the popper (where applicable). 5. Install the unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614 http://www.gmpopcorn.com... -
Page 6: Installation
Bucket Pump Model NO. 2114M OPERATING INSTRUCTIONS FINAL PREPERATIONS Your new Bucket Pump was adjusted, inspected and tested before it left the factory and is ready to operate with some fine adjustment to the volume of oil delivered to your popper (see adjustment instructions on the following page). - Page 7 Set the Oil Dispense Timer The 2114M is equipped with a Single Shot Timer that controls how long the pump dispenses oil. To adjust the oil volume, first determine the oil charge ratio needed, then adjust the timer setting by following the instructions in the Setting Timer section shown below.
- Page 8 Bucket Pump Model NO. 2114M 2. Hold a measuring cup under the oil delivery tube in the popper, with the Oil System Master Switch ON, push the Red Oil Dispense Button (located on the control panel of the popper) and measure the amount of oil discharged.
-
Page 9: Cleaning Instructions
1. With machine off, unplug unit and allow oil pump and popper kettle to cool completely before attempting to clean (always have power disconnected when wiping unit off). 2. Fill a clean, empty pail half-full with hot water and Gold Medal Chlor-Tech Sanitizer (reference instructions on sanitizer container for appropriate amount). - Page 10 Bucket Pump Model NO. 2114M 4. Place pump in pail of solution. 5. Let pump soak for ten minutes, lift pump from solution and wipe down with a clean, solution soaked cloth. Return pump to bucket. 6. Attach the 6-ft piece of tubing to oil dispense tube above popper kettle (see image below).
-
Page 11: Maintenance Instructions
Bucket Pump Model NO. 2114M MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. -
Page 12: Ordering Spare Parts
Bucket Pump Model NO. 2114M ORDERING SPARE PARTS 1. Identify the needed part by checking it against the photos, illustrations, and/or parts list. (General images may be used in manual for reference only.) 2. When ordering, please include part number, part name, and quantity needed. -
Page 13: Parts Breakdown
Bucket Pump Model NO. 2114M PARTS BREAKDOWN 4B, 4C http://www.gmpopcorn.com Page 13... - Page 14 Bucket Pump Model NO. 2114M PARTS BREAKDOWN Number Part No. Description Quantity 41033 125V Red Pilot Light 42532 DPST Rocker Switch 41031 Oil Pump Switch 79140 Pump Timer Dip Switches 79159 Timer Hold Down Clips 79141 8 Pin Sprocket 79017...
-
Page 15: Wiring Diagram
Bucket Pump Model NO. 2114M WIRING DIAGRAM http://www.gmpopcorn.com Page 15... - Page 16 © 2016 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
