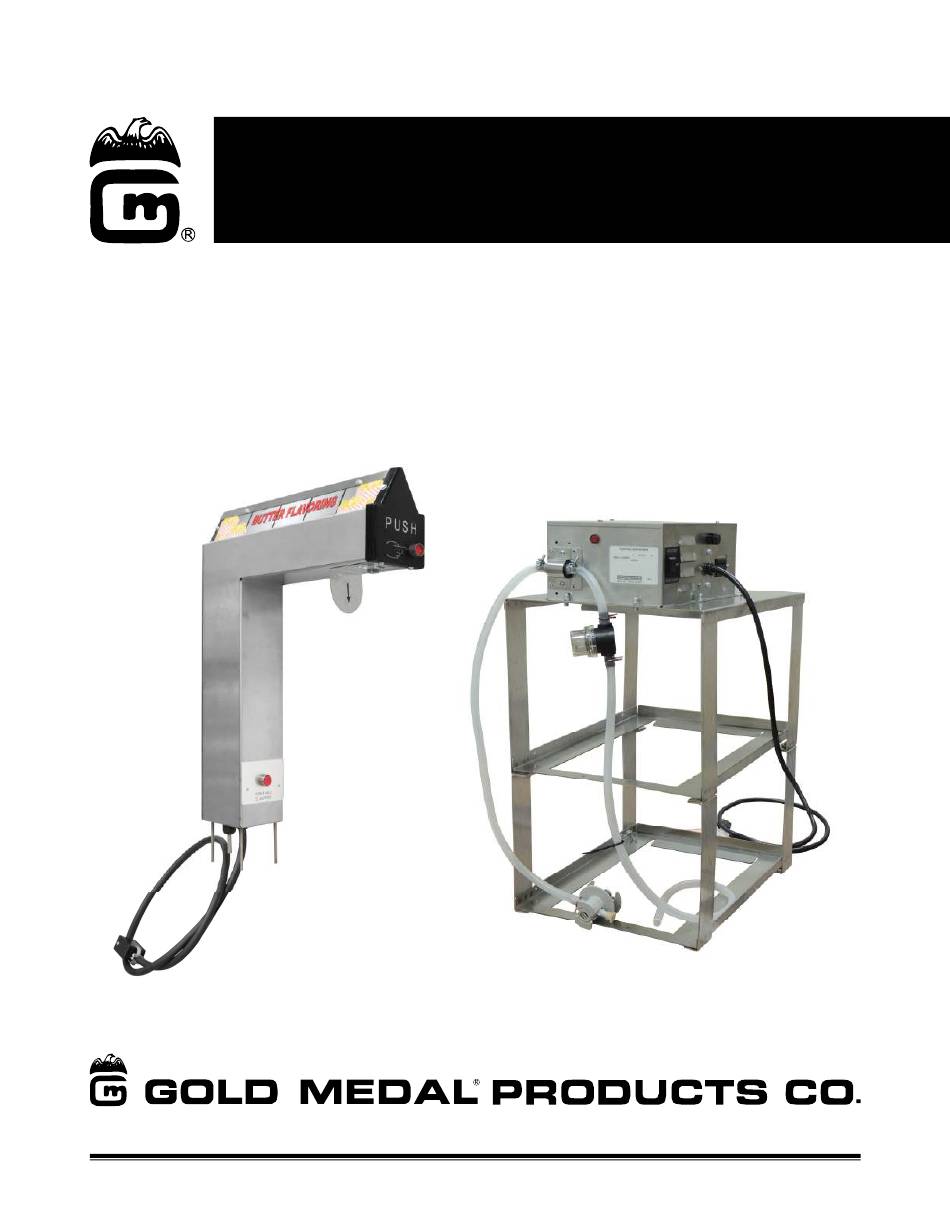

- Page 1 Popcorn Topping Dispenser Model Series 2396-00-100 (101, 110, 111, and 140) Pedestal Assembly for Models without Remote. Rack Assembly shown for Single Pedestal Models. 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2017 Gold Medal Products Co. Part No. 39140...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 3 007_010914 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 4: Installation Instructions
Popcorn Topping Dispenser Model Series 2396-00-100 (101, 110, 111, and 140) INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual). - Page 5 Popcorn Topping Dispenser Model Series 2396-00-100 (101, 110, 111, and 140) Setup This unit has been tested at the factory. 1. Remove all packaging and tape prior to installation. 2. The pedestal and rack assembly must be installed in a sturdy, level cabinet (provided by the customer).
- Page 6 4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable). 5. Install unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614 gmpopcorn.com...
- Page 7 Popcorn Topping Dispenser Model Series 2396-00-100 (101, 110, 111, and 140) Unit Installation Follow the instructions below to install the Topping Dispenser. 1. The bottom portion of the Topping Dispenser (the rack assembly) needs to be placed in an area under the counter that can be enclosed on all sides in order for the heater to properly maintain product temperature (cabinet to be provided by customer).
- Page 8 Popcorn Topping Dispenser Model Series 2396-00-100 (101, 110, 111, and 140) Countertop Cutout Dimensions This section shows the placement, hole size and cutout dimensions to mount the pedestal(s), drip pan, and ADA Remote (if equipped). Single and Dual 15.500 4.625 3.094 Pedestal 2.688...
- Page 9 This product is not intended for use with volatile food products (i.e. real butter). 1. Load two boxes of pre-heated topping onto the rack. Gold Medal’s Backroom Warmer (Item No. 2262) may be purchased for pre-heating the topping. Mount the box in the rack so the topping bag nozzle is located towards the bottom of the box to permit a free flow of the topping from the bag.
- Page 10 Popcorn Topping Dispenser Model Series 2396-00-100 (101, 110, 111, and 140) OPERATING INSTRUCTIONS Controls and Their Functions HEAT SWITCH Three position rocker switch. • “Center” position is OFF. • “Up” position is HEAT ONLY. This activates the display light, the heater/blower that will maintain cabinet temperature, and activates the foil heater in the pedestal.
- Page 11 Popcorn Topping Dispenser Model Series 2396-00-100 (101, 110, 111, and 140) Operating the Topping Dispenser 1. To Pump and Heat Topping - Turn the Heat Switch (located on control box) to the PUMP & HEAT position to activate the display light, the heater/blower (to maintain cabinet temperature), the foil heater in the pedestal, and provide power to the pump(s).
-
Page 12: Care And Cleaning
Measure Cup (for priming unit) 1. Make sure Topping Dispenser has cooled completely before attempting to clean. 2. Fill a clean, empty pail half-full with hot water and Gold Medal Chlor-Tech Sanitizer (reference instructions on sanitizer container for appropriate amount). - Page 13 Popcorn Topping Dispenser Model Series 2396-00-100 (101, 110, 111, and 140) 3. Disconnect Universal Bag Connector from topping bag, and connect it to cleaning bracket as shown below. Make sure the quick disconnect is engaged. Step 2: Step 3: Step 1: Plunger OUT in open position.
-
Page 14: Maintenance Instructions
Popcorn Topping Dispenser Model Series 2396-00-100 (101, 110, 111, and 140) MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. DO NOT use excessive water when cleaning. -
Page 15: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online:... - Page 16 9, 10 12, 13, 14 18, 19 *CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, See Tubing and or similarly qualified Connectors Section persons in order to avoid a hazard.
- Page 17 Popcorn Topping Dispenser Model Series 2396-00-100 (101, 110, 111, and 140) Tubing and Connectors Item Part Description Part Number FOOD TUBING (replacement tubing is sold by 91375 the foot) SINGLE WIRE HOSE CLAMP 75110 UNIVERSAL BAG CONNECTOR 79100G IN LINE STRAINER 79269 HOSE CLAMP 67843...
- Page 18 Popcorn Topping Dispenser Model Series 2396-00-100 (101, 110, 111, and 140) Rack Assembly - Control Box Interior – Parts Breakdown 4, 5, 6 11, 12 General image of dual pedestal model shown for reference. gmpopcorn.com Page 18...
- Page 19 Popcorn Topping Dispenser Model Series 2396-00-100 (101, 110, 111, and 140) Rack Assembly - Control Box Interior – Parts List Part Number Item Part Description All Models 120 VOLT 60 CY BLOWER 48018 250 WATT 120 VOLT HEAT ELEMENT 38824 EXHAUST BLOWER PLUG AND CORD 47199 8-32 X 2 PH PAN M/S 18-8...
- Page 20 Popcorn Topping Dispenser Model Series 2396-00-100 (101, 110, 111, and 140) Pedestal Exterior – Parts Breakdown 239 6- 00 -1 00 Light Cover Assembly Model 2396-00-100 Front View Model 2396-00-100 Rear View Pedestal and Remote Switch View (Models 2396-00-101 and 111 Only) gmpopcorn.com Page 20...
- Page 21 Popcorn Topping Dispenser Model Series 2396-00-100 (101, 110, 111, and 140) Pedestal Exterior – Parts List Part Number 2396-00-100 Item Part Description 2396-00-101 2396-00-110 2396-00-111 2396-00-140 COMPLETE PEDESTAL 77460 LIGHT COVER ASSEMBLY 103160 103160 (includes 2 screws, butter bracket, light cover) SCREW #8 HEX WASHER HEAD 47771 47771...
- Page 22 Popcorn Topping Dispenser Model Series 2396-00-100 (101, 110, 111, and 140) Top Pedestal – Interior View Power Supply is located on back of Support Plate. 6, 7 LED Support Plate 10 11 12, 13 View under LED Support Plate Part Number Item Part Description All Models...
- Page 23 Popcorn Topping Dispenser Model Series 2396-00-100 (101, 110, 111, and 140) Safety Labels Unit Labels Power Cord Label Part Number Item Part Description All Models HOSE CONNECT LABEL 79388 WARNING LABEL MAX FUSE 1A 79343 LBL CAUTION DISCONNECT PR 87149 SERVICE LABEL 87935 LBL WARN DISCONNECT POWER...
-
Page 24: Wiring Diagram
Popcorn Topping Dispenser Model Series 2396-00-100 (101, 110, 111, and 140) Wiring Diagram All Models gmpopcorn.com Page 24... - Page 25 © 2017 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
