B. Wire
Note:
The maximum wire size is 14 AWG.
1. Strip wires to 10 mm (25/64") maximum.
2. Push the wire into the terminal.
Note:
The terminals have a push-in lock. To remove the wire,
push the terminal in with the screwdriver and pull out the
wire at the same time. see Figure 3.
TO REMOVE WIRE, PLACE
A SMALL FLATHEAD
SCREWDRIVER INTO THE
GROOVE AND PUSH IN.
AT THE SAME TIME, PULL
THE WIRE OUT OF THE
TERMINAL.

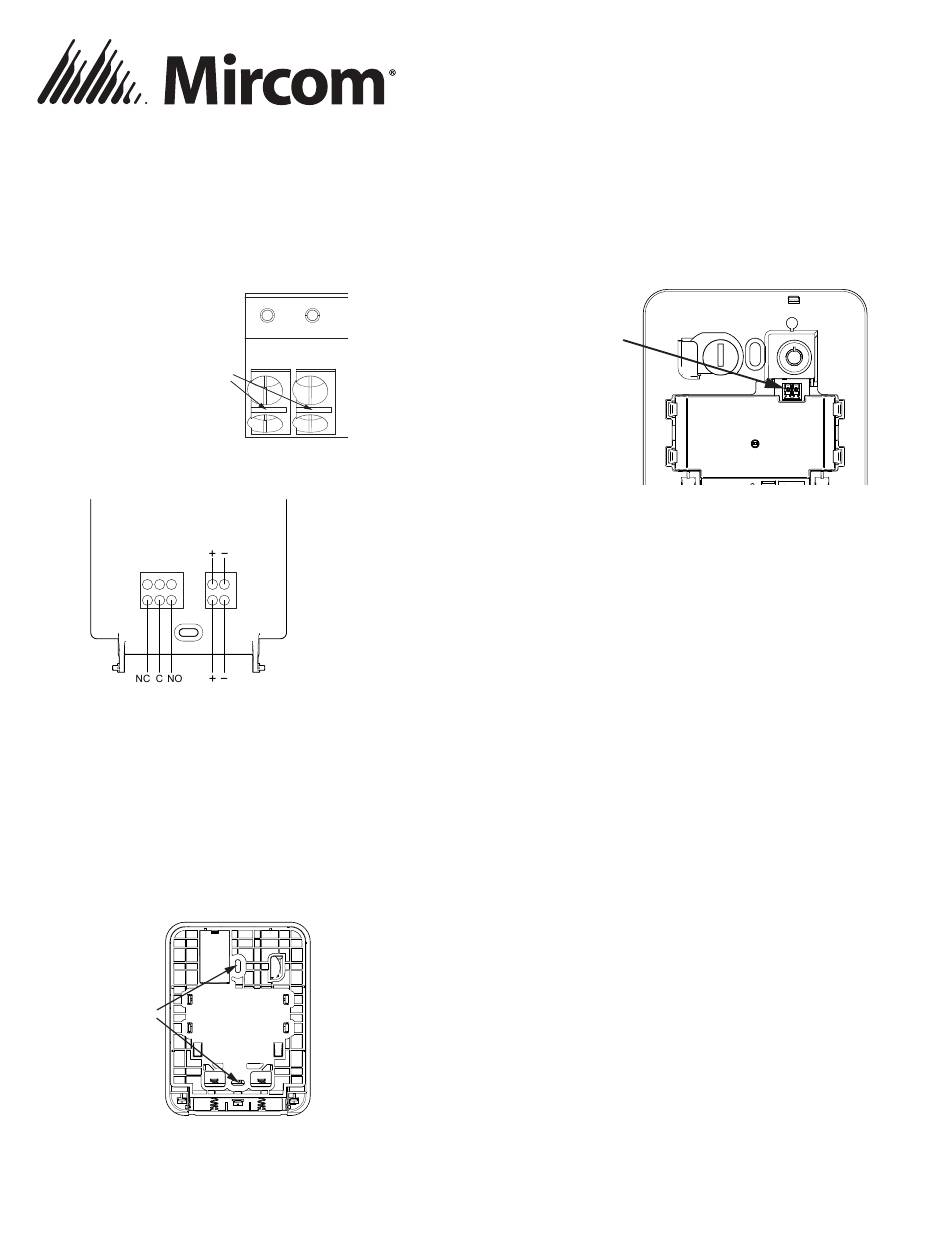

Figure 3 Removing the wire
3. Wire as shown in Figure 4.
FROM
PREVIOUS
STATION
TO NEXT STATION OR
TO MAGLOCK
LEAVE IT EMPTY
(MPS-822MP)
Figure 4 Wiring
C. Mount
Flush mount indoor: Single-gang electrical box.
Surface mount indoor: BB-800 backbox with or without STI-1230
(Deep Cover without Gasket)
Note:
Mount the manual station with the Mircom logo on the
bottom.
MOUNTING
HOLES
Figure 5 Back of manual station
2
MPS-800MP(U) Series
Fire Alarm Manual Station
D. Set the addressable module
Follow the instructions in LT-6146, the MIX-4090 Device
Programmer Installation Manual, available on
http://www.mircom.com.
The factory default address is 255.
The connector for the device programmer is inside the unit above
the addressable module, as shown in Figure 6.
CONNECTOR
FOR DEVICE
PROGRAMMER
Figure 6 Connector for device programmer
Using the manual station
Activate the alarm
1. Push in the push bar.
2. Pull down the pull handle.
A qualified person must reset the station by opening it with the
reset key. See Resetting the manual station below.
Activate the stage two alarm (MPS-802MP and
MPS-822MP)
• Insert the stage two key into the stage two keyhole, and then
turn the key.
The stage two alarm activates immediately.
Note:
The stage two alarm will activate automatically a certain
amount of time after the handle has been pulled if no
action is taken. This time is set in the Fire Alarm Control
Panel.
Reset the manual station
Note:
Resetting the station does not cancel the alarm at the
panel.
1. Insert the reset key into the reset keyhole and turn it.
2. Pull the cover open. The switch is now reset.
3. Close and lock the station with the reset key.
4. Reset the Fire Alarm Control Panel to reset the alarm.
