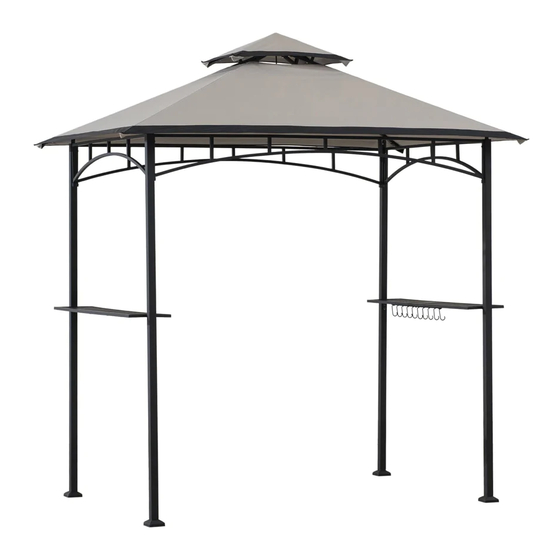

- Page 1 ITEM NO.:A103002201 WE HAVE YOU IN MIND, LET US SERVE YOU! Questions? Issues? CONTACT US 24 hours / 7 days a week www.sunjoyonline.com customer.care@sunjoygroup.com 1-(866)-578-6569 Country of Origin: China Production Number: xxxxxxxxxx...
-
Page 2: Parts List
2 / 6 Parts List Description Label Part# Qty Image Post(1) P000200393 Post(2) P000200394 P000100293 Base Base Cover P006100097 Beam P000601204 Large Top Connector P000501025 Long Support P000400796 Short Support P000400797 Side Bar P002100285 Hook P005800001 Tool hook P005800098 Small Canopy P001100540 Lager Canopy P001100539... -
Page 3: Hardware Pack
3 / 6 Hardware Pack 1 Label Description Part# Qty Image H010030030 M6X15 Bolt 8PCS 16 PCS M6 Flat Washer H050010057 8 PCS H010030032 M6X20 Bolt H090030002 M6 Wrench 1 PCS Fig.5 Fig.4 Step 1 Fig.3 Fig.6 Fig.2 Fig.1 Fig.1 Fig.2 A 3 ( 4 ) Fig.3、4... - Page 4 4 / 6 Fig.1: P u t t h e b a s e c o v e r（ C ） t h r o u g h p o s t（ A 3 、 A 4 ） ， t h e n a t t a c h b a s e ( B 1 ) t o p o s t b o t t o m（ A 3 、 A 4 ）...
- Page 5 5 / 6 Fig.8 Fig.9 Fig.10 Fig.8: Fix large canopy (N1）to bottom of beam（D1），then adjust the tube (O) to appropriate size。 Fig.9: Attach side bar(J1) to post（A3、A4）, fix by using bolt（AA）flat washer（BB）. Fig.10:Up the base cover （C）, fix the assembled gazebo on ground by using stake(FF）.
-
Page 6: Care And Maintenance
To minimize this condition, we recommend care when assembling & handling the product to prevent scratching the paint. Should any scratching or damage occur, we recommend immediate touch‐up with rust inhibiting paint. Surface rust can also be easily removed with a very light application of common cooking oil. If surface oxidation (rusting) occurs and if no measure is taken to prevent this, the oxidation may start dripping on to deck or patio and caused damaging stains, which may be difficult to remove. This can be prevented if the above‐mentioned measures are taken to keep the product from oxidizing. Use damp cloth to wipe off the stains as quickly as possible. If necessary, wash with a mild solution of soap and water; rinse thoroughly and dry completely. Periodically check and ensure that all bolts are well‐tighten during use Limited Manufacturer’s Warranty Sunjoy Group warrants to the original purchaser that this item is free from defects in workmanship and materials for a period of 6 months from the date of purchase, provided the item was factory‐sealed at the time of purchase and is maintained with care and used only for personal, residential purposes. Should any manufacturing defect arise within this warranty period, Sunjoy Group will replace (at our option) any defective merchandise or parts upon proof of purchase; however, transportation and delivery costs, as well as payments to a third party for assembly or disassembly of the item, remain the responsibility of the purchaser. A purchaser of an "open box," previously‐returned, or "clearance" item, as well as original purchasers outside of the warranty period, may obtain replacement parts from Sunjoy Group for products in current production, at nominal cost. Exclusions: Items used for commercial, contract, or other non‐residential purposes, or items damaged due to acts of nature, vandalism, misuse, or improper assembly are not covered. Corrosion or rusting of hardware is not covered. Proof of purchase (dated register receipt) is required for warranty claims. Warranty is to the original purchaser and is non‐transferable. Any replacement of warranted items will be in the original style and color, or a similar style and color if the original is unavailable or has been discontinued. As some states do not allow exclusions or limitations on an implied warranty, the above exclusions and limitations may not apply. This warranty gives you specific rights, and you may also have other rights, which vary from state to state. Country of Origin: China...
