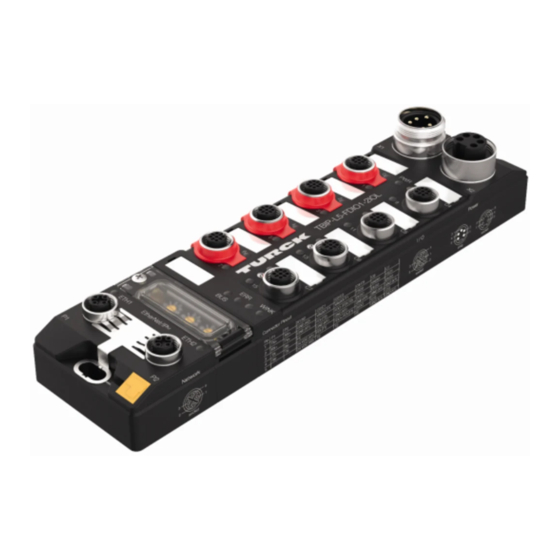

- Page 1 Your Global Automation Partner TB…-L…-FDIO1-2IOL Safety Block I/O Modules Safety Manual - Translation...
- Page 2 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
-
Page 3: Table Of Contents
Table of Contents About this manual .......................... 5 Scope.......................... 5 Explanation of symbols used.................. 5 Additional documents .................... 6 For your safety ............................. 7 General safety notes...................... 7 Residual risks (EN ISO 12100:2010) ................ 7 Warranty and liability...................... 7 Notes on Ex protection .................... 8 Ex approval requirements for use in Ex area .............. 8 Safety Integrity Level/Performance Level/Category.............. 9 Product Description......................... - Page 4 National and international directives and standards .......... 42 14.2 Cited standards ...................... 42 15 Appendix: approvals and markings ..................... 43 16 Turck subsidiaries — contact information.................. 44 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
-
Page 5: About This Manual
EN ISO 13849-1 and IEC 61508. Other issues are not considered. All instructions must be followed in order to assure functional safety. Always make sure that this is the latest version of the safety manual at www.turck.com. The German version is considered the definitive document. Every care was taken in the produc- tion of the translations of this document. -
Page 6: Additional Documents
The following additional documents are available online at www.turck.com: Data sheet Declarations of conformity (current versions) Approvals Notes on Use in Ex zone 2 and 22 (100022986) Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 7: For Your Safety
The product is designed according to state-of-the-art technology. However, residual risks still exist. Observe the following warnings and safety notices to prevent damage to persons and property. Turck accepts no liability for damage caused by failure to observe these warning and safety notices. -
Page 8: Notes On Ex Protection
Do not install the device in areas critically exposed to UV light. Prevent risks caused by electrostatic charge. Protect unused connectors with dummy plugs to ensure protection class IP67. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 9: Safety Integrity Level/Performance Level/Category
Safety Integrity Level/Performance Level/Category The devices are rated for applications rated to: SIL3 according to EN 61508 and EN 62061 Category 4/PLe according to EN ISO 13849-1 V02.00 | 2022/07... -
Page 10: Product Description
The use in Zone 0 and Zone 1 Modifications to the device The device must not be modified either constructionally or technically. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 11: Device Overview
Device overview TBPN-L…-FDIO1-2IOL yellow 38.8 [1.53] 30.2 [1.19] 24 [0.95] Ø 6.3 [0.25] Ø 6.3 [0.25] 6 [0.24] 60.4 [2.38] 218 [8.58] 230.4 [9.07] mm [Inch] Fig. 1: TBPN-L1-FDIO1-2IOL yellow 30.2 [1.19] 34.8 [1.37] 24 [0.95] Ø 6.4 [0.25] Ø 6.3 [0.25] 6 [0.24] 60.4 [2.38] 217.9 [8.58]... - Page 12 24 [0.95] Ø 6.4 [0.25] Ø 6.3 [0.25] 6 [0.24] 60.4 [2.38] 217.9 [8.58] 230.4 [9.07] mm [Inch] Fig. 5: TBIP-LL-FDIO1-2IOL Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
-
Page 13: Type Label
4.2.1 Type label TBPN-L1-FDIO1-2IOL Ident-No.: 6814053 Hans Turck GmbH & Co. KG D-45466 Mülheim a. d. Ruhr Charge code: www.turck.com YoC: Made in Germany Fig. 6: Type label TBPN-L1-FDIO1-2IOL TBPN-LL-FDIO1-2IOL Ident-No.: 100029879 Hans Turck GmbH & Co. KG D-45466 Mülheim a. d. Ruhr Charge code: www.turck.com... -
Page 14: Switches And Connectors
IOL, IO-Link port 2 (safe shutdown via FSO 1 possible) F-Address Rotary coding switch for address setting for PROFIsafe (F-address setting) Ethernet 1 Ethernet 2 Functional earth Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... - Page 15 TBIP-L4-FDIO1-2IOL/TBIP-L5FDIO1-2IOL Designation Meaning Power IN TBIP-L4-4FDI-4FDX: 4-pin TBIP-L5-4FDI-4FDX: 5-pin Power OUT TBIP-L4-4FDI-4FDX: 4-pin TBIP-L5-4FDI-4FDX: 5-pin FDI0/1, safety-related input FDI2/3, safety-related input FDX4/5, safety-related input Address FDX6/7, safety-related input DXP8/9, standard in-/outputs (safe shutdown via FSO0 possible) DXP10/11, standard in-/outputs (safe shutdown via FSO0 possible) IOL, IO-Link port 1 IOL, IO-Link port 2 (safe shutdown via FSO 1 possible)
-
Page 16: Block Diagram
C2/X2 C6/X6 FDX5 DXP13 IO-Link Port2 FDX6 DI14 (C/Q) FSO1 C3/X3 C3/X3 C7/X7 FDX7 (intern) DXP15 Fig. 12: Block diagram TBIP-L…-FDIO1-2IOL Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 17: Safety Function
Safety function The TB…-L…-FDIO1-2IOL provide two safe digital SIL3 inputs (FDI) and two SIL3-connectors (FDX), configurable as in- or outputs. The following devices can be connected to the safety inputs: 1- and 2-channel safety switches and sensors Contact based switches, e.g. emergency switches, protective door switches Sensors with OSSD switching outputs Antivalently switching OSSD sensors The two safe SIL3 outputs can be used PP- or PM-switching. -
Page 18: Safety Planning
CIP Safety > local output 25 ms EN 61508 Local input > CIP Safety 20 ms Local input <> local output 35 ms Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 19: Operating Instructions
„ Execute a functional test every 12 months. „ Do not repair devices. If problems occur with regard to functional safety, Turck must be notified immediately and the devices must be returned immediately to: Hans Turck GmbH & Co. KG Witzlebenstraße 7... -
Page 20: Mounting
Mount and screw the housing cover according to the following figure. The tightening torque for the screws is 0.5 Nm. Fig. 13: Mounting the device in protection housing TB-SG-L Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... - Page 21 Mounting onto a mounting plate NOTICE Mounting on uneven surfaces Device damage due to stresses in the housing „ Fix the device on a flat mounting surface. „ Use two M6 screws to mount the device. The device can be screwed onto a flat mounting plate. „...
-
Page 22: Connecting
Danger to life due to connection failures „ Use loads with mechanical or electrical inertia. Positive and negative test pulses have to be tolerated. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 23: Addressing - Tbpn-L
7.1.3 Addressing – TBPN-L…-FDIO1-2IOL Setting the F address via rotary coding switches „ Open the cover above the switches. „ Set the F address via the three rotary coding switches under the cover at device. „ Execute a power cycle. Memory F-Address x 100... - Page 24 Write the new IP address, the subnet mask and the default gateway via Submit into the device. Fig. 16: Webserver – Network configuration TBPN-L…-2FDIO-2IOL Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
-
Page 25: Addressing - Tbip-L
The first three bytes of the Main IP address can be set via the device's web server (IP address in delivery state: 192.168.1.254). The last byte of the IP address Main IP address can either be set via the rotary coding switches at the device, via the Turck Service Tool or via the web server. NOTE Turck recommends setting the IP address via the rotary coding switches (Static Rotary) on the device. - Page 26 Write the new IP address, the subnet mask and the default gateway via Submit into the device. Fig. 18: Webserver – Network configuration TBIP-L…-2FDIO-2IOL Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
- Page 27 Setting the Secondary IP Address via the web server The Secondary IP Address is not used in the device and should always be set to 0.0.0.0. Fig. 19: Web server – setting the Secondary IP Address V02.00 | 2022/07...
-
Page 28: Web Server - Login
(included in delivery). When a device is replaced, the device configuration can be transferred to another device using the memory chip. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 29: Operating
Operating 7.2.1 LED displays The device has the following LED indicators: Power supply Group and bus errors Status Diagnostics LED PWR Meaning No voltage connected or under voltage at V1 Green Voltage V1 and V2 OK No valid state, device switches to the safe state Red/green No valid state, device switches to the safe state LED 0…3... - Page 30 Helps to localize the module if the Blink/Wink command is active LED 0…7 Meaning Red blinking, Fatal Error all alternating Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
- Page 31 TBPN-L…-FDIO1-2IOL LED BUS Meaning No voltage supply Green Active connection to a master Green flashing Device ready for operation IP address conflict, restore mode or F_reset active Red flashing Wink command active Red/green, 1 Hz Autonegotiation and/or waiting for DHCP-/BootP-address assignment LED ERR Meaning No voltage connected...
-
Page 32: Output Error Behavior
In case of an error a switched-off output can be switched on for ≤ 1 ms. 7.2.3 Decommissioning The decommissioning is described in the user manual. TBPN-L…-FDIO1-2IOL (D301378) TBIP-L…-FDIO1-2IOL (100000717) Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 33: Appendix: Wiring Diagrams
Appendix: wiring diagrams Ethernet TBIP-L4-…, TBIP-L5-…, TBPN-L1-… 1 = TX + 1 = RX + 2 = RX + 2 = TX + 3 = TX – 3 = RX – 4 = TX – 4 = RX – flange = FE flange = FE Fig. 20: Pin assignment Ethernet connector P1 Fig. 21: Pin assignment Ethernet connector P2 TB…-LL-…... -
Page 34: Safety Inputs (Fdi)
2 = FDO-/FDI (T2) 3 = GND (V1) 4 = FDO+/FDI (T1) 5 = T2 Fig. 29: Pin assignment FDX at C2…C3 or X2…X3 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 35: Dxp Channels
DXP channels 1 = FSO0 2 = DI/DO 3 = GND (V1) 4 = DI/DO 5 = FE Fig. 30: Pin assignment C4…C5 or X4…X5 IO-Link channels 1 = V 2 = DI/DO 3 = GND (V1) 4 = C/Q 5 = GND (V1) Fig. 31: Pin assignment IO-Link port IOL1 (C6 or X6) 1 = FSO1 2 = DI/DO... -
Page 36: Appendix: Switching Examples
Connection example: Banner STB Touch Note: „ To avoid errors, do not use 5-pin cables to the sensor. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 37: Outputs
Changes to the preset properties of the inputs directly affect the performance level to be achieved. For more information, see the online help of the Turck Safety Configurator. Outputs NOTE Any change in the test pulse interval of the outputs will change the performance level. -
Page 38: Appendix: Designations And Abbreviations
LL device variants added Chapter "Addressing" supplemented ”Appendix: directives and standards” added ”Appendix: approvals and markings” added Technical data supplemented Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 39: Appendix: Technical Data
Appendix: technical data Devices TBPN-L1-FDIO1-2IOL 6814053 According to device labeling TBPN-LL-FDIO1-2IOL 100029879 According to device labeling Devices TBIP-L5-FDIO1-2IOL 6814056 According to device labeling TBIP-L4-FDIO1-2IOL 100000360 According to device labeling TBIP-LL-FDIO1-2IOL 100027260 According to device labeling Power supply V1 (incl. electronics supply) 24 VDC 24 VDC, only through connected Current feedthrough... - Page 40 The user have to provide an additional overcurrent protection on site. Times Internal delay time (for calculating the watch- 10 ms dog time) Response times See Safety Characteristic Data [} 18] Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
-
Page 41: Derating
General technical data Max. cable length Ethernet 100 m (per segment) Sensor/actuator 30 m Dimensions (W × L × H) 60.4 × 230.4 × 39 mm Operating temperature -40 °C… +70 °C Storage temperature -40 °C… +85 °C Operating altitude Max. -
Page 42: Appendix: Directives And Standards
EN ISO 12100:2010 Safety of machinery - General principles DIN EN ISO 12100:211-03 for design - Risk assessment and risk re- duction Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 43: Appendix: Approvals And Markings
Ex ec IIC T4 Gc TÜV 20 ATEX 264795 X ÉII 3 D Ex tc IIIC T115 °C Dc UKEX approval no.: TURCK Ex-20002HX IECEx approval no.: Ex ec IIC T4 Gc IECEx TUN 20.0010X Ex tc IIIC T115 °C Dc Ambient temperature T .: -25 °C…+60 °C... -
Page 44: Turck Subsidiaries - Contact Information
Turck Banner Malaysia Sdn Bhd Unit A-23A-08, Tower A, Pinnacle Petaling Jaya, Jalan Utara C, 46200 Petaling Jaya Selangor www.turckbanner.my Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... - Page 45 Mexico Turck Comercial, S. de RL de CV Blvd. Campestre No. 100, Parque Industrial SERVER, C.P. 25350 Arteaga, Coahuila www.turck.com.mx Netherlands Turck B. V. Ruiterlaan 7, NL-8019 BN Zwolle www.turck.nl Austria Turck GmbH Graumanngasse 7/A5-1, A-1150 Wien www.turck.at Poland TURCK sp.z.o.o.
- Page 46 Over 30 subsidiaries and over 60 representations worldwide! 100000664 | 2022/07 100000664 www.turck.com...
