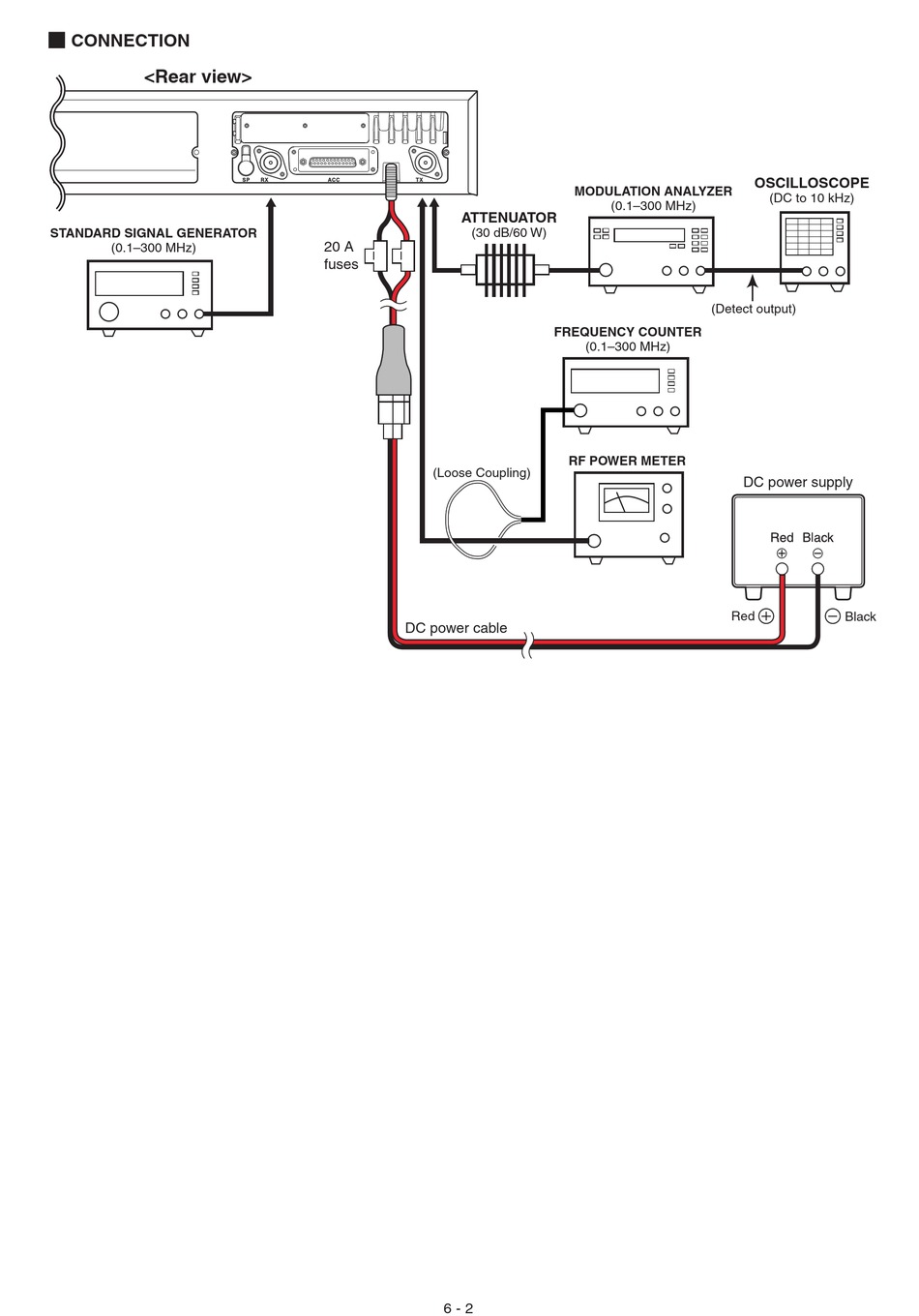

¤ CONNECTION
<Rear view>
OSCILLOSCOPE
MODULATION ANALYZER
(DC to 10 kHz)
(0.1–300 MHz)
ATTENUATOR
STANDARD SIGNAL GENERATOR
(30 dB/60 W)
20 A
(0.1–300 MHz)
fuses
(Detect output)
FREQUENCY COUNTER
(0.1–300 MHz)
RF POWER METER
(Loose Coupling)
DC power supply
Red
Black
DC power cable
6 - 2
