Icom IC-FR5000 Service Manual Addendum page 146

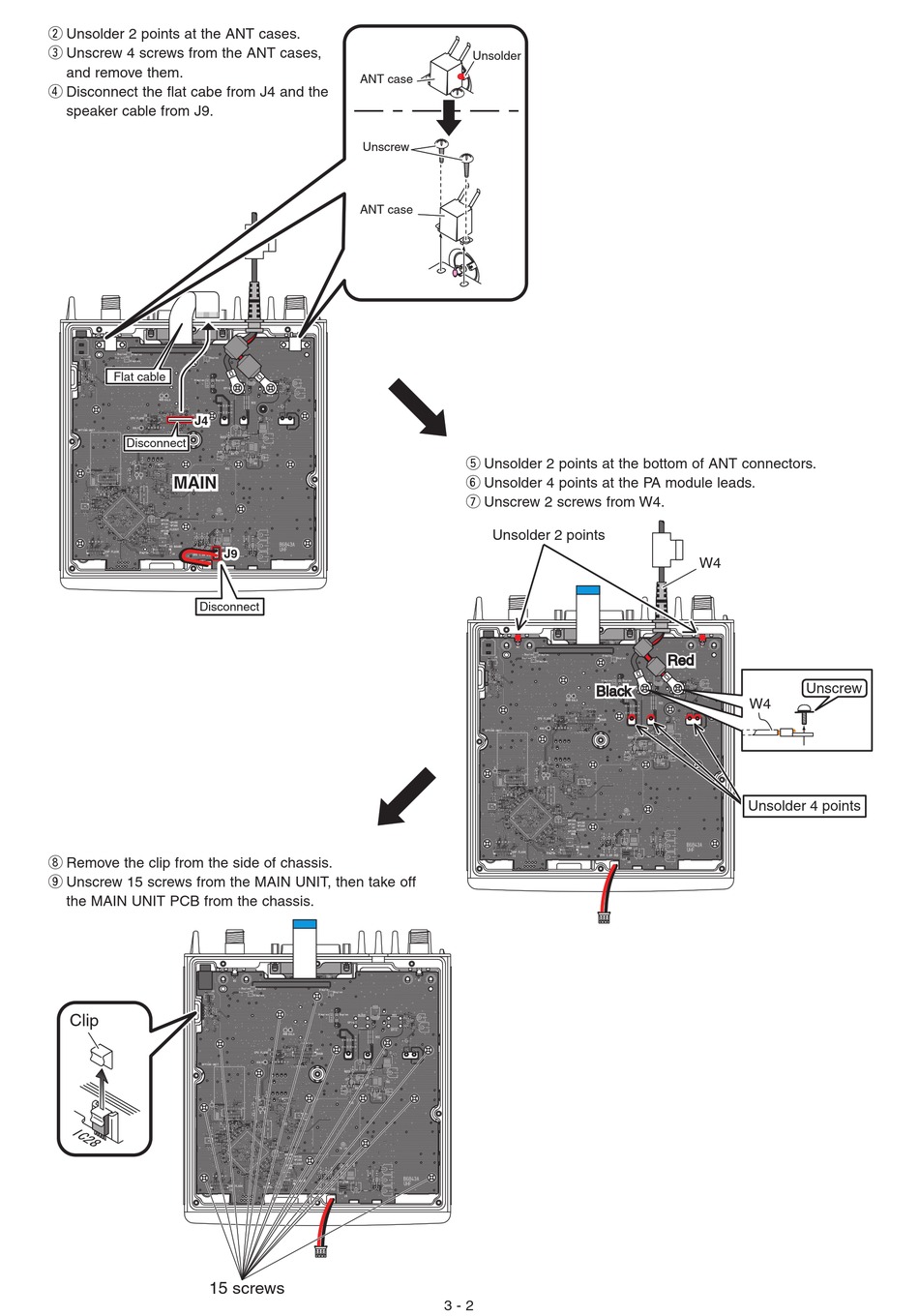

w Unsolder 2 points at the ANT cases.
e Unscrew 4 screws from the ANT cases,
and remove them.
r Disconnect the flat cabe from J4 and the
speaker cable from J9.
Flat cable
J4 J4
Disconnect
MAIN MAIN
Disconnect
i Remove the clip from the side of chassis.
o Unscrew 15 screws from the MAIN UNIT, then take off
the MAIN UNIT PCB from the chassis.
Clip
15 screws
ANT case
Unscrew
ANT case
J9 J9 J9
Unsolder
t Unsolder 2 points at the bottom of ANT connectors.
y Unsolder 4 points at the PA module leads.
u Unscrew 2 screws from W4.
Unsolder 2 points
Black Black Black Black
3 - 2
W4
Red Red
Red Red
Unscrew
W4
Unsolder 4 points
