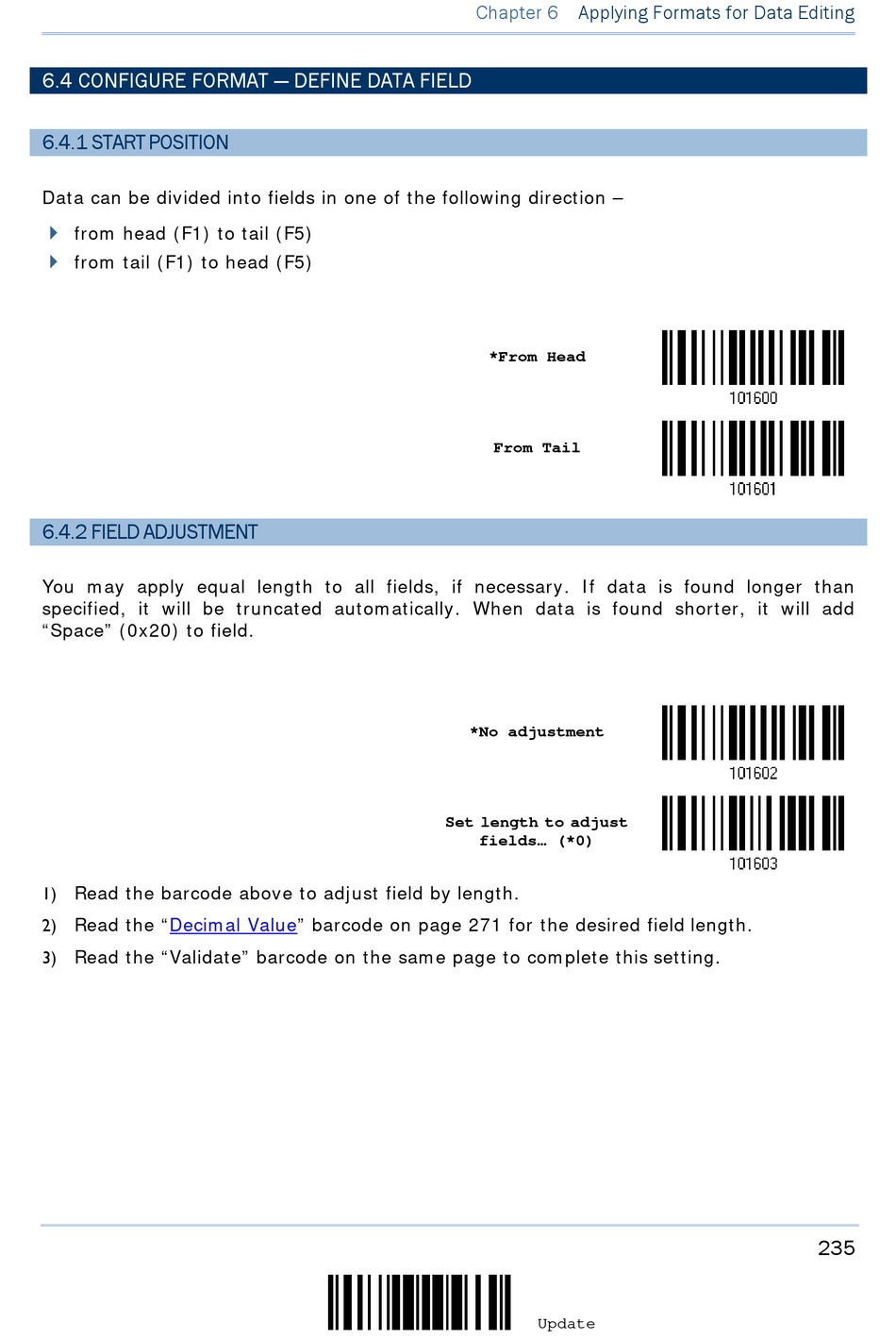

6.4 CONFIGURE FORMAT — DEFINE DATA FIELD

6.4.1 START POSITION

Dat a can be divided int o fields in one of t he following direct ion –

from head ( F1) t o t ail ( F5)

from t ail ( F1) t o head ( F5)

6.4.2 FIELD ADJUSTMENT

You m ay apply equal lengt h t o all fields, if necessary. I f dat a is found longer t han
specified, it will be t runcat ed aut om at ically. When dat a is found short er, it will add
" Space" ( 0x20) t o field.
1) Read t he barcode above t o adj ust field by lengt h.
2) Read t he " Decim al
3) Read t he " Validat e" barcode on t he sam e page t o com plet e t his set t ing.
Value" barcode on page 271 for t he desired field lengt h.
Chapter 6 Applying Formats for Data Editing
*From Head
From Tail
*No adjustment
Set length to adjust
fields... (*0)
Update
235
