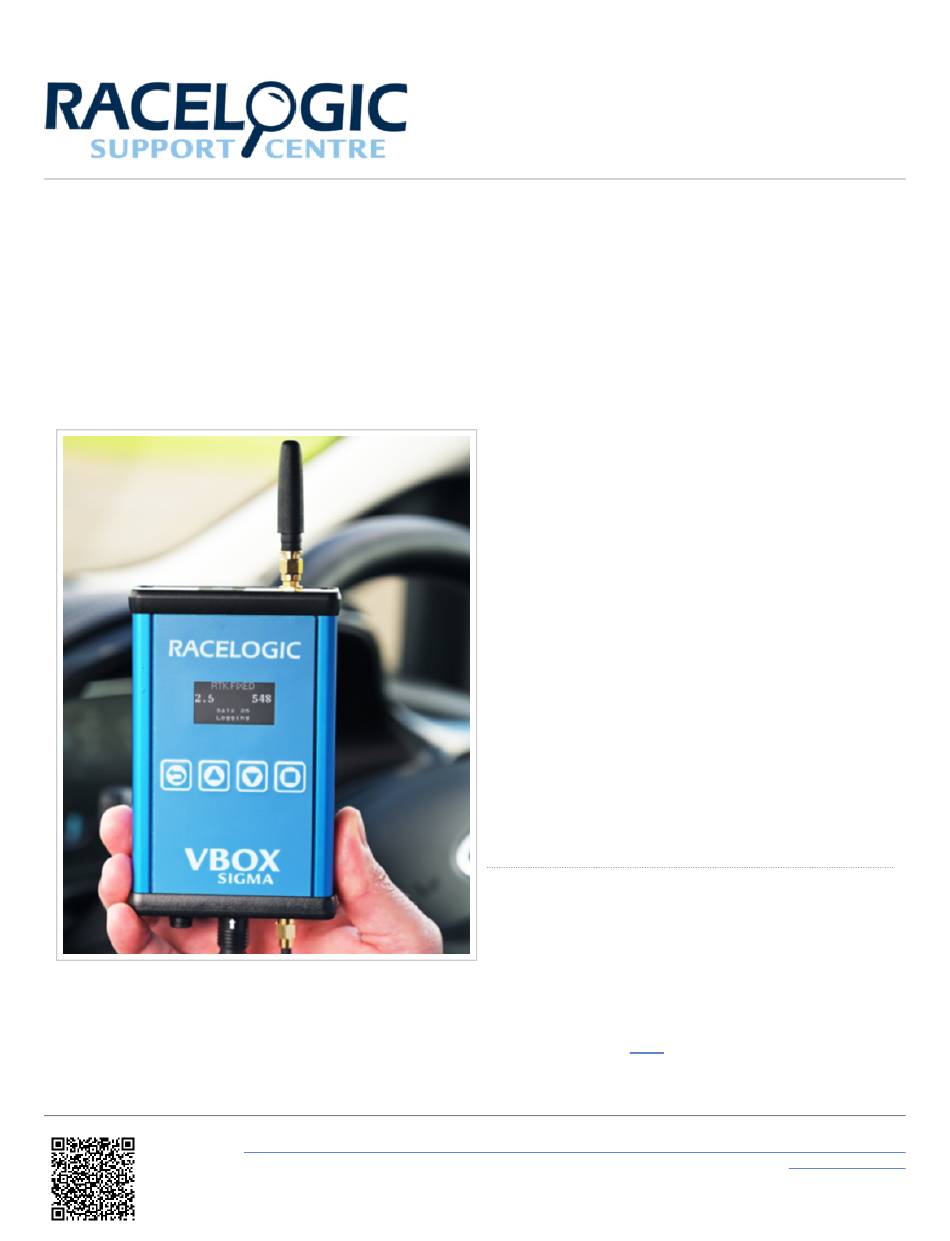

VBOX Sigma - Quick Start Guide
VBOX Sigma (RLVBSIGMA) is a cost-effective, RTK
enabled 10 Hz data logger with integrated NTRIP
modem. Its multi-constellation, multi-frequency GNSS
engine offers outstanding performance even in areas
with poor and multi-path satellite coverage. When used
in conjunction with an RTK base station or NTRIP
correction service, VBOX Sigma is accurate to within a
centimetre and is the ideal reference for ground truth.
The in-built NTRIP modem makes it easy to receive RTK
correction messages from an NTRIP network, either via
Wi-Fi or a 4G cellular connection. In order to use this
type of correction you have to register and subscribe to
a cellular data plan with your local NTRIP provider, such
as Topnet in the UK and Germany, Swepos in Sweden
or Unavco in the USA.
Configuration is made via a Wi-Fi access point and
the front screen will display status and connection
information.
Registration
So that Racelogic can continue to provide you with
notification of the latest software releases, firmware
upgrades and to offer technical support, please register
your VBOX Sigma.
Register your unit here.
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Sigma/Quick_Start_Guides/VBOX_Sigma_-
_Quick_Start_Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VBOX SIGMA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Racelogic VBOX SIGMA

Summary of Contents for Racelogic VBOX SIGMA

  • Page 1 When used in conjunction with an RTK base station or NTRIP correction service, VBOX Sigma is accurate to within a centimetre and is the ideal reference for ground truth. The in-built NTRIP modem makes it easy to receive RTK correction messages from an NTRIP network, either via Wi-Fi or a 4G cellular connection.

  • Page 2: What's Included

    What’s Included Product Code Quantity Description VBSIGMA-V1 VBOX Sigma Unit RLACS308 GNSS Antenna USB-A to USB-C Fast Data/Power TTV1AM20MB31 Cable Hirose 3 W Plug to Cigar Plug RLCAB010H Power Cable, 2 m 8 GB SD Ultima Pro UHS-1 RLACS313 Memory Card...

  • Page 3: Hardware Overview

    NTRIP server, and a USB socket for updating the unit using the supplied USB cable. If you are connecting to another GNSS receiver rather than a VBOX, the USB socket can also be used to power the unit if power https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Sigma/Quick_Start_Guides/VBOX_Sigma_- _Quick_Start_Guide...
  • Page 4 RLCAB010H cable. The other connector can be used to connect to a VBOX or other GNSS sytem to supply RTK correctional messages via CAN. There is also a an SD card slot for logging data and an SMA connector for attaching the supplied GNSS antenna (RLACS308). Further connector pin information is available here. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Sigma/Quick_Start_Guides/VBOX_Sigma_- _Quick_Start_Guide...

  • Page 5: Screen Overview

    Home Screen, Sats Screen and the Network Screen, accessed by using the Up and Down Arrow Buttons on the front of the unit. More detailed information on the display screen can be found here. Home Screen Sats Screen https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Sigma/Quick_Start_Guides/VBOX_Sigma_- _Quick_Start_Guide...

  • Page 6: Network Screen

    Setup Configuration of VBOX Sigma is performed using a Wi-Fi hotspot access point created by the unit. You can then log in to this access point on your phone or a computer and use a webpage to configure the unit to either use the internal GSM modem or an external Wi-Fi hotspot to connect to your chosen correction service.
  • Page 7 VBOX to provide NTRIP correction messages. Apply power to the unit. 6. Configuration of VBOX Sigma is performed using a Wi-Fi hotspot created by the unit. The hotspot name and IP address is displayed on the...
  • Page 8 Note: These details will be provided by your NTRIP service provider. 10. VBOX Sigma is configured to log continuously when an SD card is inserted as standard, if you would like to change to logging when the vehicle is moving (>0.5 km/h), press the 'Change settings' button next to the VBO Log heading and use the dropdown menu to select 'Only when Moving'.
  • Page 9 11. VBOX Sigma is now setup ready for use, the front screen will display status and connection information. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Sigma/Quick_Start_Guides/VBOX_Sigma_- _Quick_Start_Guide...
