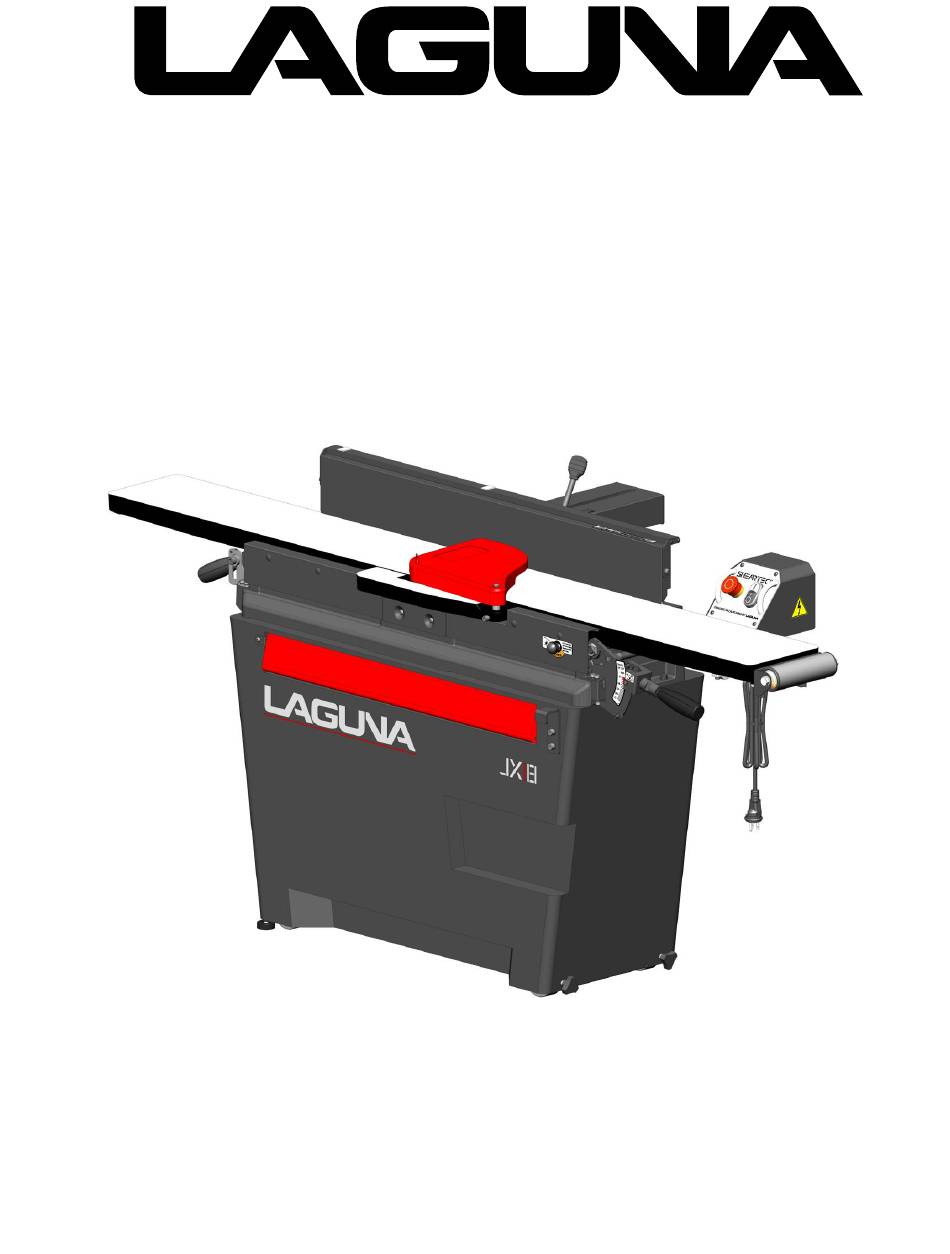

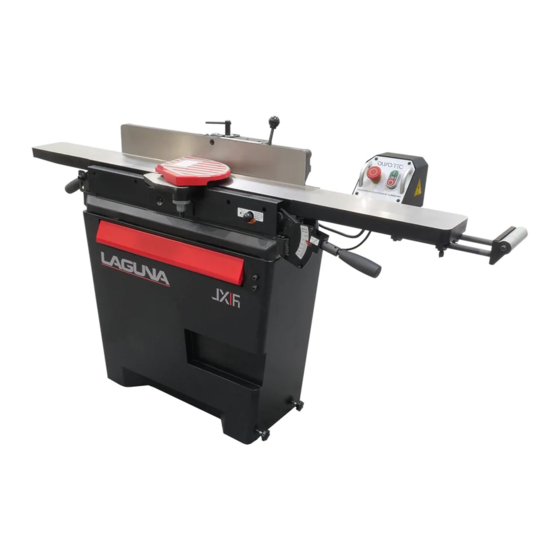

- Page 1 Table Alignment Instructions JX6 & JX8 JOINTERS...
- Page 2 Coplanarity Test STEP 1: DISCONNECT THE MACHINE FROM POWER! DISCONNECT MACHINE FROM POWER! STEP 2: Remove the cutterhead guard by loosening the set screw(s) and removing TABLE ALIGNMENT guard. (See GUARD INSTALLATION). The alignment of the infeed and outfeed tables has been precisely set at the factory. STEP 3: Slide the fence assembly back or However, misalignment can be incurred remove it from the machine (See FENCE...
- Page 3 Outfeed Table; paralleling to FIG. 2 Straight Edge cutterhead and establishing proper height to cutterhead Outfeed Table STEP 1: While the machine is disconnected from power source, cutterhead guard is removed, and fence is away or removed; remove rear access panel of stand, to obtain access of drive belt.
-
Page 4: Infeed Table
Outfeed Table (cont.) STEP 6: If the outfeed table is not parallel to the STEP 4: Loosen cap screw on the back of cutter head; loosen the set screws for the the outfeed table adjustment lever as eccentric bushings FIG. 10. Rotate the eccentric shown in FIG. - Page 5 STEP 4: If straight edge lies uniformly flat against both infeed and outfeed tables in all positions; re-install fence, blade guard and rear access panel. If it does not fit uniformly flat against both infeed tables and outfeed tables in any position, go to Table Parallelism Adjustment.
- Page 6 STEP 4: Place straight edge to all the Table Parallelism Adjustment positions shown in FIG. 11 and loosen set When the infeed table is not parallel with screw(s) adjust the eccentric bushings, as the outfeed table, it can be adjusted. in FIG.
-
Page 7: Troubleshooting
Troubleshooting: Fence: After adjusting either or both tables, check and if necessary, adjust the fence according to fence setting instructions within the main manual. Before making adjustments: Always confirm the outfeed table is parallel and flush with the cutterhead before adjusting the infeed table. - Page 8 LAGUNA TOOLS 744 Refuge Way Suite 200 Grand Prairie TX 75050 800.234.1976 www.lagunatools.com 051822...
