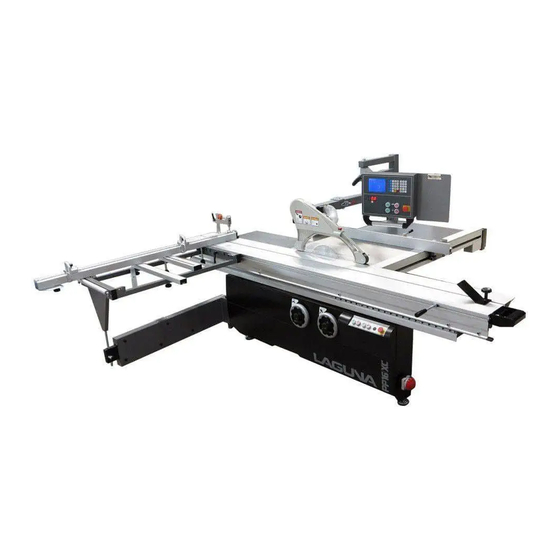

10' panelsaw
Hide thumbs Also See for PP16 XC Pro:
Table of Contents

Advertisement

Quick Links

Owner's Manual
Owner's Manual
PP16|XC Pro 10' Panelsaw
PP16|XC Pro 10' Panelsaw
MPSPP16XC-10-0135
MPSPP16XC-10-0135
lagunatools.com | lagunacleanair.com | supermaxtools.com

Advertisement

Table of Contents
loading

Related Manuals for Laguna Tools PP16 XC Pro

Summary of Contents for Laguna Tools PP16 XC Pro

  • Page 1 Owner’s Manual Owner’s Manual PP16|XC Pro 10′ Panelsaw PP16|XC Pro 10′ Panelsaw MPSPP16XC-10-0135 MPSPP16XC-10-0135 lagunatools.com | lagunacleanair.com | supermaxtools.com...
  • Page 2 Aside from being free of defects upon receiving, consumable parts, like cutters and abrasives, are not covered by this warranty unless otherwise stated by Laguna Tools. These parts are designed to be used at the expense of the operator and are available for replacement or inventory purchase.

  • Page 3: Table Of Contents

    Table of Contents 1. INFORMATION 1-1. General information……………………………………………………………….. P1 1-2. Safety rules ……………………………………………………………………………. P2 2. MACHINE INFORMATION 2-1. Main Feature………………………………………………………..... P6 2-2. Specification………………………………………………..…………………………. P7 3. INSTALLATION 3-1. Unpacking & Check machine accessories….…………………………… 3-2 Fitting foot brake ..………………….……….……………………………. 3-3. Fitting sliding table……………………………….………………………………… P11 3-4.
  • Page 4 Table of Contents 9. PARTS LIST ASSEM01- Machine body & table ASSEM02- Control panel ASSEM03- Power unit ASSEM04- Saw blade angle device ASSEM05- Saw blade rise & fall device ASSEM06- Scoring device ASSEM07- Outrigger arm ASSEM08- Crosscut table ASSEM09- Crosscut fence ASSEM10- Rip fence ASSEM11- Sliding table ASSEM12- Saw blade guard device...

  • Page 5: General Information

    1. INFORMATION General Information We are specialized to supply full range of panel saw from 1600, 2300, 2500, 3200 to 3800mm. The outlook design of this machine is so unique with complete cast iron bracket instead of sheet metal, enlarged outrigger and carriage, direct dust collection outlet.

  • Page 6: Safety Rules

    1. INFORMATION 1-2. Safety Rules 1) Read instruction manual before operating the machine for your safety. People who operate the machine must be trained, read and understood to use the safety measures, possess the ability to obey, and execute the regulation stated in this manual.
  • Page 7 1. INFORMATION 12) Have your machine repaired by a qualified person. Repairs should be carried out by qualified-persons using original spare parts; otherwise this may result in considerable danger to the user. 13) Check any damaged parts. Before using the machine further, the guard or other damaged part should first be carefully checked to determine if it will operate properly and perform its intended function.
  • Page 8 1. INFORMATION buttons are position on the front side on the machine near in-feed working area. The emergency button is colored red and yellow background. After emergency stop, follow the normal start up procedure and suitable operation to obviate the hazard. Please see the afterward pages of emergency stop position diagram.

  • Page 9: Specification

    1. INFORMATION 20mm deep. Push blocks should be used when cutting small work pieces and in circumstances where it is necessary to push the work piece against the fence. b) Selection of saw blade and riving knife- the operator should only select saw blade with suitable diameter and thickness for the machine.
  • Page 10 2. MACHINE INFORMATION 2-1. MAIN FEATURE Machine Body Sliding Table C. Edge Shoe D. Motorized rip fence Control panel Overhead guard G. Hold Down With Miter Fence (Optional) H. Crosscut Frame Crosscut Fence Flip Stops Foot brake (emergency stop)
  • Page 11 2. MACHINE INFORMATION 2-2. SPECIFICATIONS ITEM MODEL Sliding table dimension 3200x378mm Cast Iron table 548x896mm Extension table (rear) 952x896mm Extension table (front) 830X320mm Table size 1500x1726mm Round rail Φ40mm Main saw blade (Max.) 400mm Main saw bore φ30mm Max. cutting height at 90 (400mm) 130mm Max.
  • Page 12 3. INSTALLATION 3- - - - 1. UNPACKING SETUP SAFETY – By offering the comprehensive information regarding to the operation and maintenance of the machine, it will be ensured that operators will use the machine properly. – Our sales organization is always willing to provide solutions for every technical problem (reparation, spare part delivery), and to help your business with our professional knowledge.
  • Page 13 3. INSTALLATION IMPORTATNT!! Follow the below steps before operating. Before operating, lift up the scoring motor to remove the fixing wood block from the machine. (Figure 3-1.1) Put on the flat belt to the scoring shaft. Be aware of the movement direction mark on the belt.
  • Page 14 3. INSTALLATION CHECKS THE MACHINE ACCESSORIES Packing List Saw base Unit x 1 wooden Sliding Table Unit x 1 Assembly parts for crosscut fence x1 Assembly parts for crosscut frame. x1 Assembly parts for motorized rip fence. x3 Assembly parts for left extension table & rear extension table. x1 Assembly parts for tool box + pusher+ flip stop x 1.
  • Page 15 3. INSTALLATION Fitting the foot brake 1. Fit the foot brake to the right side of machine body, Remove the cover of the control, loosen the screws on the foot brake to open it, remove the nut at the back side of the brake attach to the machine aim the hole (only 2 holes as shown below) Fasten the nut when attached the brake and finish adjust the position.
  • Page 16 3. INSTALLATION 3-3.FITTING THE SLIDING TABLE The accessories bag contains hex head bolts for fixing the sliding table For packing and transport reasons, some machine members are removed. All fitting operations in this section require approx. 4 people Note: The parallelism has been adjusted before shipping, users only need to assemble by following the steps below.
  • Page 17 3. INSTALLATION 3-4. FITTING THE CROSSCUT FRAME & EXTENSION FENCE ASSEMBLY All fitting operations in this section require approx. 2 people I. Fitting the crosscut frame 2. Fit the crosscut frame by putting A (Fig. 3-4.1) into the end of swing arm B(Fig. 3-4.1).
  • Page 18 3. INSTALLATION 3. Slide the 4 sets of square pads by follow the arrow direction into the groove at the bottom and lock 1 pad at the end (Fig. 3-4.2a) 4. Fit crosscut fence in the groove H (Fig. 3-4.2) and holes on crosscut frame (as Fig 3-4.2b) 5.
  • Page 19 3. INSTALLATION 3-5. FITTING MOTORIZED RIP FENCE & EXTENTION TABLE...
  • Page 20 3. INSTALLATION...
  • Page 21 3. INSTALLATION ADDITIONAL REMARKFITTING THE EXTENSION TABLE All fitting operations in this section require approx. 2 people 1. Fasten the extension table and keep it aligned with cast iron table. Check the flatness use a flat straight gauge or the alum. Rip fence which go with rip fence ( Figure 3-5.7) on the tables as Fig 3-5.12.

  • Page 22: Overhead Saw Blade Guard And Control Panel Fitting

    3. INSTALLATION 3-6. OVERHEAD SAW BLADE GUARD AND CONTROL PANEL FITTING Overhead saw blade guard fits to saw blade with max dia. of more than 355mm. All fitting operations in this section require approx. 3 people Following is the instruction of assembly. Note: Figure 3-6.10 shows the overall assembly points 1.
  • Page 23 3. INSTALLATION Figure 3-6.6 Figure 3-6.5 Figure 3-6.7 Figure 3-6.8 Figure 3-6.9 H&I A&B Figure 3-6.10...

  • Page 24: Fitting The Saw Blade

    3. INSTALLATION 3-7. FITTING THE SAW BLADE CAUTION 1. Handle the saw blade with gloves. 2. Open blade protect guard before install the saw blade Procedure for fitting or replacing the saw blade is as follows: 1. Set the saw unit in 0 degree by turning hand wheel A (Fig.3-7.1). , and lock knob. 2.
  • Page 25 3. INSTALLATION Figure 3-7.2c Figure 3-10.2 Figure 3-7.2 Red plate Figure 3-7.2a Figure 3-7.2b Figure 3-7.3a Figure 3-7.3...

  • Page 26: Riving Knife

    3. INSTALLATION 3-8. RIVING KNIFE CAUTION: Always install the riving knife with gloves. The machine is always equipped with one riving knife for 355mm saw blade. Always fit the proper riving knife: 1. Loosen nut A (Fig. 3-8.1) insert the riving knife with a wrench without complete tightening it.

  • Page 27: Changing Scoring Blade

    3. INSTALLATION 3-9. CHANGING SCORING BLADE CAUTION: Changing scoring blade with gloves and always pay attention. 1. Press the emergency button 2. Set the scoring blade in 90 degree by turning the hand wheel A (Fig. 3-7.1) 3. Move the sliding table to the left and push the handle to the 2 stop before reach the 1 stop.
  • Page 28 3. INSTALLATION Figure 3-9.2...

  • Page 29: Edge Shoe

    3. INSTALLATION 3-10 EDGE SHOE, 3-11 HOLD DOWN & MITER FENCE Edge shoe The edge shoe is used for trimming panel and fixes the work piece on the sliding table. ※ Notice: Edge shoe is demanded in heavy duty processing. Miter Fence with hold down (Optional) Allows precise miter cuts between + 45 and - 45 on the sliding table and clamps the work piece.

  • Page 30: Connection To The Dust Collection

    3. INSTALLATION 3-12. CONNECTION TO THE DUST COLLECTION The connection to the dust collection is necessary for the good machine operation. Always work with the dust collector in operation. The saw is equipped with two dust ports connected to a dust collection system before operation.

  • Page 31: Wiring & Test Run

    3. INSTALLATION 3-13. WIRING & TEST RUN WIRING 1. Make sure that the electric system of the workshop may absorb the machine power and the grounding system follows the prescriptions in force. Notice: Comply with local codes to prevent fire accident. 2.
  • Page 32 4. OPERATION 4-1. SAW BLADE LIFTING AND TILTING I. SAW BLADE LIFTING Turn hand wheel B (Fig. 4-1.1) counter clockwise: the saw blade rises. Adjust the saw blade height according to the work piece thickness. The saw blade height must exceeds the piece thickness 1 ~ 1.5cm Set the guard C (Figure 4-1.1a) to a max.

  • Page 33: Scoring Blade Adjusting

    4. OPERATION 4-2. SCORING BLADE ADJUSTING I. SCORING BLADE HEIGHT ADJUSTING 1. Loosen nut A (Fig. 4-2.1) 2. Turn the knob B (Fig. 4-2.1) till the scoring blade has reached to the height desired, then tighten nut A (Fig. 4-2.1) 3.
  • Page 34 4. OPERATION III. USE OF SCORING BLADE The scoring blade is used to avoid the chipping on the bottom pat of panels coated with finishing material. Take Fig 4-2.3 as reference. A. Single blade: with blade thickness equal to the saw blade one. B.

  • Page 35: Control Panel Operation

    4. OPERATION 4-3. CONTROL PANEL OPERATION Control panel close-up A. MAIN BLADE ON Button—Start the main saw blade. B. MAIN BLADE OFF Button—Stop the main blade. C. SCORING BLADE ON Button—Start the scoring blade. Note: The main saw blade must be ON for the scoring blade to start. D.

  • Page 36: Speed Change

    4. OPERATION 4-4. 3 SPEED CHANGE 1. Set the saw unit down 2. Stop the machine , turn the main switch to 0 ; then lock it and indicating this with a sign 3. Open the rear door 4. Loosen knob A(Fig. 4-4.1) 5.
  • Page 37 4. OPERATION 4-5. SETTING THE RIP FENCE UNIT FOR PARALLEL CUTS Make sure the distance value before operation (Refers to the 3-5)
  • Page 38 4. OPERATION II. POSITION OF FENCE PLATE 1. Vertical position (Fig. 4-5.4a) turn to the work piece 2. Horizontal position (Fig. 4-5.4b) for cutting thin work piece and for slanting cuts. It will be safer to move the work piece forwards by using pusher. NOTE: For the execution of special working, the operators are obliged to put his hands near the tools.

  • Page 39: Sliding Table

    4. OPERATION 4-6. SLIDING TABLE CAUTION: Lock sliding table before placing heavy work piece for safe location. The sliding table is moved on high precision sideways which is made of hardened steel for a uniform and smooth motion with less friction and obtain accurate cutting. The sliding table is locked and unlocked by lever A (Fig.
  • Page 40 4. OPERATION 4-7 SETTING THE CROSSCUT FENCE 1. Turn threaded nut C (Fig. 4-7.1a) to make crosscut fence exactly vertical with sliding table. Then lock knob D (Fig. 4-7.1a) to fix A (Fig. 4-7.1. 2. Turn on the machine, then trimming the panel with the crosscut fence. Figure 4-7.1 Figure 4-7.1a...
  • Page 41 4. OPERATION I. SQUARE CUTTING TEST 1. Lock all knobs for crosscut fence. 2. Lower the guard, then do test trimming to A, B, C & D (Fig. 4-7.2) of the testing panel. 3. After cutting, measuring the cutting width of E & F (Fig. 4-7.2). As a test for square cutting, the length of them MUST be the same.
  • Page 42 4. OPERATION III. RULE ADJUSTING FOR OBLIQUE CUTS 1. Loosen knob D(Fig. 4-7.4a)& F(Fig. 4-7.4b) to change position of crosscut fence 2. Adjust the position for making sure the right side of the fence A (Fig. 4-7.4) aligning with the desired angle. ※...
  • Page 43 5. MACHINE MAINTAINESS 5-1. Machine cleaning & check Before carrying out maintenance, adjustments or demounting any machine member, turn the main switch to 0. Then lock it and indicate this with a sign. The general cleaning can extend life of usage for the machine and it would also affect operation safety.
  • Page 44 5. MACHINE MAINTAINESS Cleaning & Checking Schedule Weekly Monthly 3-month 6-month Check items Daily yearly Check emergency stop and indicate lamp whether normal or not? Check the integrity of noise, pressure and ventilation of the machine. Clean the exterior part of the machine Check all the screws from the machine whether tight or not?

  • Page 45: Periodical Lubrication

    5. MACHINE MAINTAINESS 5-2. PERIODICAL LUBRICATION An accurate lubrication ensures the long life of usage as well as the best performance of the machine. CAUTION Weekly lubricate with grease Disconnect the electrical Worms B (Fig. 5-2.1) and toothed sector A (Fig. and pneumatic system 5-2.2) for height adjusting and tilting of the saw before maintenance...

  • Page 46: Replacing Belt

    5. MACHINE MAINTAINESS 5-3. REPLACING BELT Disconnect the machine from the electrical and pneumatic system I. REPLACING THE SCORER SPINDLE BELT 1. Remove the rear door 2. Lift the small motor A (Fig. 5-3.1). When the belt is slack, it can be replaced 3.
  • Page 47 5. MACHINE MAINTAINESS II. REPLACING THE SAW SPINDLE BELTS 1. Set the saw unit 45∘tilted by turning the wheel. 2. Open rear door 3. Loosen knob B(Fig. 5-3.2) 4. Lift lever C (Fig. 5-3.2) of belt stretcher to the left, then the belts are slack and can be replaced.

  • Page 48: Tools List

    6. TOOLS LIST TOOLS INVENTORY Tool Box Riving Knife 300~355mm Open spanner 19, 24~27,30mm Rob for fixing spindle Push Stick...
  • Page 49 Operation Manual for Automatic Rip Fence (Optional) A. Grooves /concealed cuts Function B. Incremental dimension Function C. Dimension repeat Function D. Blade management E. Switch mm/inch Function. F. Calibration Function G. Numeral Keypad H. CE Key, erase function to delete the input. I.
  • Page 50 A. Grooves /concealed cuts ■ 1. Press the "function key" to enter the starting position, 2. Ex. Input 600mm, press F2 input 600mm after height light appear press F2 again when finish 3. The groove width, Ex. 20mm, press F3 input 20mm after height light appear press F3 again when finish **input positive number (greater than zero) : the rip fence move backward, input negative number (less than zero) : the rip fence move forward (close to the blade side) 4.The groove depth, Ex.
  • Page 51 C. Dimension repeat ■ 1. Press function key (the rip fence will memories the last two position if any) 2. Input the first position Ex. 600mm when highlight appears, press the start key to move, save the position, 3. Input the second position Ex. 960mm when highlight appears, press the start key to move and save the position.
  • Page 52 6. Press F5 to save the database you input , otherwise the information can not be record. To delete the database from the blade information list you can press F5 for 3 sec, to delete (bin 7. Press F5 3 second to delete the database. Press F1 to back to main menu .
  • Page 53 F. Calibration ■ Measure the width of the cut test piece with calipers to check if the size match with the screen display. Press the function key for more than 3 sec. ,after highlight appears in the dimension display. Ex. If the cut piece measure size is 901 and screen show 900mm, after function key input 901mm to re-set. Enter the measured dimension using the numeric keypad press the function key For 3 sec.
  • Page 54 Trouble Shooting Problem Possible cause Trouble shooting Measure the exact size of the cut piece then Press the CAL Possible the rip fence scale is The rip fence scale is not key for more than 3 seconds to out of calibration or was set accurate reset the correct input press up incorrect...

  • Page 55: Troubleshooting

    8. TROUBLESHOOTING WARNING-Disconnect the machine from the power source before troubleshooting or serious personal injury could occur. Problem Possible cause Troubleshooting The machine cannot be 1. Door in machine frame or saw 1. Close the machine door or cover plate. switched on.
  • Page 56 8. TROUBLESHOOTING Problem Possible cause Troubleshooting Motor fails to develop full 1. Power line overloaded with 1. Reduce load on power line. power (output of motor lights, appliances, and other decreases rapidly with motors. decrease in voltage at 2. Undersized wires or circuits 2.
  • Page 57 8. TROUBLESHOOTING Problem Possible cause Troubleshooting The finished size of the 1. Dimension scale for cutting 1. Reset the flip stop to correct size. cut workpiece does not widths is misadjusted. match the cutting width 2. Incorrect fence position. 2. Cut a workpiece on the crosscut fence, set on the crosscut stop.
  • Page 58 8. TROUBLESHOOTING Problem Possible cause Troubleshooting Workpiece has chip out 1. Scoring blade height is 1. Adjust the height of the scoring blade. on the bottom edge. incorrect. 2. Scoring blade is not aligned 2. Align the scoring blade. with the main blade. 3.
  • Page 62 MPSPP16CX-10-0135 ASSEM 1.1.26...
  • Page 63 MPSPP16CX-10-0135 ASSEM 1.1.26 ITEM PART NO PARTS NAME SIZE Q`TY NOTE Plate 208190 Hex Head Bolt M10*40 SH100800 Hex Nut NH101700 Machine frame 208095 SH121000 Hex Head Bolt M12*50 Lock Washer WS120000 Ring 203410 Lock Washer WS060000 Cap Screw M6*16 SR069400 Washer M12*ψ30...
  • Page 64 MPSPP16CX-10-0135 ASSEM 1.1.26 ITEM PART NO PARTS NAME SIZE Q`TY NOTE Power Box 201105 Power Box WITHOUT CE 201105A Terminal PB2504 4P 994805 Terminal PB2504 4P 994805 SP059200 Pan Head Screw M5*8 Button Head Screw M5*12 SJ059300 Strain Relief 709421 Strain Relief 203860 Strain Relief...
  • Page 65 MPSPP16CX-10-0135 ASSEM 1.2.4 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Set Screw M10*20 SS100400 Hex Nut NH101700 Left Ext. Plate 207077 5655C Cap Screw M10*25 SR100500 Table 207733 Ext. Plate 207078 5655C Washer M10*ψ20 WF102030 WS100000 Lock Washer Button Head Screw M6*12 SJ069300 Table Insert...
  • Page 66 MPSPP16CX-10-0135 ASSEM 2.15 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Dust Cove R2 PRCF 994855A 994855 Switch Button-ON R2 PNF-1A-G Switch Button-OFF R2 PNF-1B-R 994856 Pilot Lamp YK.24V φ22 (W) 996002 Label 207260 Plate 208193 WS060000 Lock Washer Cap Screw M6*16 SR069400 Emergency Stop Button...
  • Page 67 MPSPP16CX-10-0135 ASSEM 3.1.5...
  • Page 68 MPSPP16CX-10-0135 ASSEM 3.1.5 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Cap Screw M4*30 SR040600 Hook(L) 207055 Spring 207057 208091 Cover Door Safety Switch ASM AB136013 Door Safety Switch 101 136012 STOP CORD 0.75x2Cx2.5Mx3Y1 102 IC207013 脫 Hex Nut 103 NH040700 104 WF040805 Washer M4*ψ8...
  • Page 69 MPSPP16CX-10-0135 ASSEM 3.1.5 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Cap Screw M5*16 SR059400 Lock Washer WS050000 Hex Nut NH050800 SR060200 Cap Screw M6*10 Lock Washer WS060000 Washer M6*ψ16 WF061620 Plate 207936...
  • Page 70 MPSPP16CX-10-0135 ASSEM 3.2.6 PARTS NAME SIZE Q'TY ITEM PART NO NOTE Hex Nut NH142200 Washer M14*ψ35 WF143530 207048 Adjusting Shaft 207043 Bushing 200999 Button Head Screw M8*30 SJ080600 Adjusting Screw 207046 RS100000 Retaining Ring Lock Knob 207156 Washer M8*ψ30 WF083030 Hex Nut NH101700 Motor Plate...
  • Page 71 MPSPP16CX-10-0135 ASSEM 3.2.6 PARTS NAME SIZE Q'TY ITEM PART NO NOTE SS101100 Set Screw M10*55 Hex Nut NH101700 Washer M10*ψ40 WF104030 Main Motor MH207003 Main Motor Y-∆ MH207004 OPTIONAL WF104030 Washer M10*ψ40 Lock Washer WS100000 Hex Head Bolt M10*40 SH100800 8*7*50 KS080750 Motor Pulley...
  • Page 72 MPSPP16CX-10-0135 ASSEM 3.3.5...
  • Page 73 MPSPP16CX-10-0135 ASSEM 3.3.5 PARTS NAME SIZE Q`TY ITEM PART NO NOTE AB207037 Bracket Assembly Hex Nut M12*1.75 101 NH121900 Washer M16*ψ30 102 WF163030 103 207030 Block 104 207040 105 207037 Bracket Screw 106 207031 Button Head Screw M6*12 107 SJ069300 Washer M6*ψ19 108 WF061920...
  • Page 74 MPSPP16CX-10-0135 ASSEM 4.10...
  • Page 75 MPSPP16CX-10-0135 ASSEM 4.10 PARTS NAME SIZE Q'TY ITEM PART NO NOTE 100203 Lock Knob Washer 204263 ψ10×ψ20 Washer M10×ψ27 WF102730 Washer M10×ψ40 WF104030 OPTIONAL hand wheel 8" 206434A hand wheel 8" 200866 OPTIONAL 7x7x20 KS070720 AB207462 Hand Wheel Shaft Assembly 101 207462 Hand Wheel Shaft Bearing...
  • Page 76 MPSPP16CX-10-0135 ASSEM 4.13 PARTS NAME SIZE Q'TY ITEM PART NO NOTE Cap Screw M8*20 SR080400 Lock Washer WS080000 Lock Washer M8xψ18 WF081818 Plate 207656 Rack 207654 Washer M6*ψ16 WF061620 WS060000 Lock Washer Cap Screw M6*20 SR060400 Counter Sunk Screw M10×40 SI100800 Bushing 200850...
  • Page 77 MPSPP16CX-10-0135 ASSEM 5.7...
  • Page 78 MPSPP16CX-10-0135 ASSEM 5.7 ITEM PART NO PARTS NAME SIZE Q`TY NOTE Lock Knob 100203 Washer 204263 ψ10×ψ20 Washer M10×ψ27 WF102730 Washer M10×ψ40 WF104030 OPTIONAL 206434A hand wheel 8" hand wheel 8" 200866 OPTIONAL 7x7x20 KS070720 Washer 207450 Bearing Bracket ASM AB207397 Chain 101 207396...
  • Page 79 MPSPP16CX-10-0135 ASSEM 5.7 ITEM PART NO PARTS NAME SIZE Q`TY NOTE Worm Gear(L) 203 207097 Thrust Bearing NTB2035+AS 204 994203 Washer 205 205013 Cover Bracket 206 207098 207 994203 Thrust Bearing NTB2035+AS Worm Shaft 208 207379 Thrust Bearing NTB2035+AS 209 994203 Cover 210 207060 M20*1p...
  • Page 80 MPSPP16CX-10-0135 ASSEM 6.1 PARTS NAME SIZE ITEM PART NO Q'TY NOTE Hex Nut M18*1.5p 207024 Flange 207796 Shaft Assembly AB207794 Int. Retaining Ring 101 RR420000 Wave Washer 102 WW304003 ψ30.1*ψ40.6 t=0.3 ( 6302 ) Ball Bearing 6004LLB 103 BB600404 Shaft 104 207794 Bracket 105 207022...
  • Page 81 MPSPP16CX-10-0135 ASSEM 6.2.4 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Setscrew M8x20 SS080400 207041 Spring Shaft 207032 Setscrew M6*12 SS069300 Ring 207033 Ring 207034 Washer M8*ψ30 WF083030 Lock Washer WS080000...
  • Page 82 MPSPP16CX-10-0135 ASSEM 6.2.4 PARTS NAME SIZE Q`TY ITEM PART NO NOTE SR089400 Cap Screw M8*16 Hex Head Bolt M6*16 SH069400 Block 207036A Washer M6*ψ13 WF061310 Lock Washer WS060000 NH061000 Hex Nut Screw Threads ASM AB207675 Block 101 207035 Screw Threads 102 207675 Cap Screw M5*35...
  • Page 83 MPSPP16CX-10-0135 ASSEM 6.3 PARTS NAME SIZE Q'TY ITEM PART NO NOTE Spring 207072 Fix Pole 207052 Cap Screw M8*45 SR080900 Lock Washer WS080000 Washer M8*ψ18 WF081818 Hex Nut NH081300 Motor MH207002 5*5*30 KS050530 Pulley 50HZ 201028 Pulley 60HZ 201029 SS060400 Setscrew M6*20 Spring pin...
  • Page 84 MPSPP16CX-10-0135 ASSEM 7.6...
  • Page 85 MPSPP16CX-10-0135 ASSEM 7.6 ITEM PART NO PARTS NAME SIZE Q'TY NOTE Magnet 206647 Screw Threads 205505B Hex Nut M20x2.5p NH203000 Plug 40*120 203470 SI051100 Counter Sunk Screw M5*55 Magnetic Bracket 206646 Sliding Tube 205208 Hex Head Screw M8*20 SH080400 Hex Nut NH081300 Button Head Screw M6*10...
  • Page 86 MPSPP16CX-10-0135 ASSEM 8.1...
  • Page 87 MPSPP16CX-10-0135 ASSEM 8.1 PARTS NAME SIZE Q`TY ITEM PART NO NOTE T-Nut M8x1.25p 201103 Plug HP-16 203230 Handle 203128 201456 T-Block Adjust Handle M12x1.75px57L 200815 Knob Screw M8x50 200954 200954 Knob Screw M8x50 Support Frame ASM AB207996R Bearing 6201ZZ 101 BB620102A Bearing 102 017058 Roller...
  • Page 88 MPSPP16CX-10-0135 ASSEM 9.3 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Flip Stop Assembly AB207207 Pipe 101 207223 Shaft 102 207203 Flip Stop 103 207207 Washer 104 207208...
  • Page 89 MPSPP16CX-10-0135 ASSEM 9.3 ITEM PART NO PARTS NAME SIZE Q`TY NOTE Knob M8x1.25px42L 105 207263 Washer M8x20x1 106 200472 Washer M8x18 107 WF081818 108 207235 109 207200 Stop Bracket 110 207201 Pipe 111 207223 Magnifier 112 207202 Ext. Fence Assembly AB207205 Extended Tube 201 207212...
  • Page 90 MPSPP16CX-10-0135 ASSEM 10.7...
  • Page 91 MPSPP16CX-10-0135 ASSEM 10.7 ITEM PART NO PARTS NAME SIZE Q`TY NOTE Fixed Base 203131 Fixed Base 203296 Pan Head Screw M5*45 SP050910 Push-Button Switch 203297 203481 Corrugated Tubing Fitting N-MGW16-15B-ST Plastic Corrugated Tubing NGN-12B 203475 Thrust Washers 203199 Cap Screw M4*10 SR040200 Lock Washer...
  • Page 92 MPSPP16CX-10-0135 ASSEM 10.7 ITEM PART NO PARTS NAME SIZE Q`TY NOTE Plastic Corrugated Tubing 203888 NGN-23B Cover 203851 Cover 207673 Washer WF041008 M4*ψ10 SP049100 Pan Head Screw M4*6 Button Head Screw M3×6 SJ039100 Cap Screw M5*16 SR059400 Fixed Plate 207672 Proximity switch 203184 Oil Filler Point...
  • Page 93 MPSPP16CX-10-0135 ASSEM 10.7 ITEM PART NO PARTS NAME SIZE Q`TY NOTE Eccentric Shaft 203213 Handle 200884 Thrust Bearing 994214 Retaining Ring RS200000 203356 Ring Washer M6*ψ19 WF061920 Eccentric Bushings 203195 Ball Bearing 6202ZZ BB620202 Lock Washer WS060000 Hex Head Bolt M6*35 SH060700 Cap Screw...
  • Page 94 MPSPP16CX-10-0135 ASSEM 10.7 ITEM PART NO PARTS NAME SIZE Q`TY NOTE Control panel cord 2.5 6P 218 IC207056 0.4M 22AWGx16Cx200M 0.01 219 IC205023 22AWGx9Cx200M 0.0375 220 IC205021 7.5M 0.5x2Cx100M 0.051 221 IC205041 222 205416 Fuse block Cover 223 205416-01 Fuse 5A 250VAC 30mm 224 994895 Proximity switch cord...
  • Page 95 MPSPP16CX-10-0135 ASSEM 12.1 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Hood Assembly AB205075 Hood 101 205075 Screw M3×16 102 ST029404 Screw M3×12 103 ST029304 Hood 104 205076 Screw M5×10 105 203110 Shaft 106 205124 Lock Nut 107 NL101700 108 205162 Cap Screw M10×25 Hose Clamp...
  • Page 96 MPSPP16CX-10-0135 ASSEM 12.10 (OPTIONAL)
  • Page 97 MPSPP16CX-10-0135 ASSEM 12.10 (OPTIONAL) PARTS NAME SIZE Q`TY ITEM PART NO NOTE Lock Nut NL101700 Gas Expansion Cylinder 205004 Washer M10*ψ20 WF102020 Cap Screw M6*20 SR060400 Lock Washer WS060000 207987 Fixed Plate 207970 Hose Clamp 3-1/4" 204158 Hose HS330004 ψ3"x42cm Washer 204263 ψ10×ψ20...
  • Page 98 MPSPP16CX-10-0135 ASSEM 12.10 (OPTIONAL) PARTS NAME SIZE Q`TY ITEM PART NO NOTE Square Tube 207971 Plate 207973 Cap Screw M6x10 SJ060200 Lock Washer WS060000 Copper Washer 992627 ψ24*ψ16*0.3t 207975 Shaft Rear Cover ASM AB207866 Tap Screw M3.5x25 101 ST030500 Rear Cover 102 207866 Front Cover 103 207865...
  • Page 99 MPSPP16CX-10-0135 ASSEM 12.6.2 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Fixed Bracket 207770 Cap Screw M8x25 SR080500 WS080000 Lock Washer Washer M8x18 WF081818 Fixed Bracket 207774 NH203000 Hex Nut Washer 203338 ψ22*ψ60*t8 Screw M20*130 205116 Hex Nut NH121900 Hex Head Bolt M12X70 SH121400...
  • Page 100 MPSPP16CX-10-0135 ASSEM 12.6.2 PARTS NAME SIZE Q`TY ITEM PART NO NOTE 201039 OPTIONAL Cap Screw M8x16 SR080400 WS080000 Lock Washer Washer M8x18 WF081818 Bolt 207773 WF164030 Washer M16x40 Fixed Bracket 207769 Lock Nut NL162400 Lock Washer WS050000 Cap Screw M5X16 SR059400 Washer M5×ψ12...
  • Page 101 MPSPP16CX-10-0135 ASSEM 12.6.2 ITEM PART NO PARTS NAME SIZE Q`TY NOTE Cap Screw M5×10 SR050200 Plastic Corrugated Tubing 204196 NGN-12B NFE-08B Strain Relief N-MGQ32-34B 998808 2x300x7.5(M/M) 150527 SR060400 Cap Screw M6*20 Lock Washer WS060000 Washer M6×ψ16 WF061620 Fixed Plate 207776 Holder N-TH-34B 998807...
  • Page 102 MPSPP16CX-10-0135 ASSEM 13.1 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Gear Wheel 203017 PP105000 ψ10*50 207658 Encoder Fixed Plate Washer M6*ψ16 WF061620 Lock Washer WS060000 Button Head Screw M6*12 SJ069300 Cover 207655 207747 Encoder Shaft Ring Encoder 203154 Washer M3*ψ6 WF030605 Lock Washer...
  • Page 103 MPSPP16CX-10-0135 ASSEM 14.1 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Down Press ASM D,E,M AB207065-2 Adjust Handle 101 207143 Ball Knob M8×P1.25 102 100271 Handle Bar 103 207070 104 207067 105 RS140000 Ext. Retaining Ring Spring 106 207069 107 207145 Down Press 108 207065 Shaft...
  • Page 104 MPSPP16CX-10-0135 ASSEM 14.2 PART NAME SIZE Q`TY ITEM PART NO NOTE Block 205264 Handle 200939 Set Screw M8×16-D TYPE old 203238 OPTIONAL Set Screw M8×25-D TYPE new 206618 OPTIONAL Set Screw M8x25-C TYPE SS080500 OPTIONAL 203720 Knob M8×16 PLASTIC WASHER φ12xφ30 t=3 992492...
  • Page 105 MPSPP16CX-10-0135 ASSEM 14.3 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Edge Shoe Plate Assembly AB205455X1 Edge Shoe Plate 101 205455 Spring Pin 102 PS051800 φ5xφ18 Washer M10x25 103 WF102025 Knob 104 203718 T-Nut M10x1.5p 105 201829...
  • Page 106 MPSPP16CX-10-0135 ASSEM 14.4.5...
  • Page 107 MPSPP16CX-10-0135 ASSEM 14.4.5 PARTS NAME SIZE Q`TY ITEM PART NO NOTE 200814 Fasten Handle Flat Washer M8×ψ30 WF083030 Fence Plate 200526 Spring plungers with ball M4×9- B TYPE 201632 OPTIONAL Miter Gauge Assembly AC198170B1 OPTIONAL AC198170D Miter Gauge Assembly OPTIONAL Miter Gauge Assembly AC198170E OPTIONAL...
  • Page 108 Laguna Tools is not responsible for errors or omissions. Specifications subject to change. Machines may be shown with optional accessories. © 2018, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.
