DAKE AIR-OPERATED HYDRAULIC PRESS
Model 6-275 & 6-475
INSTRUCTIONAL MANUAL

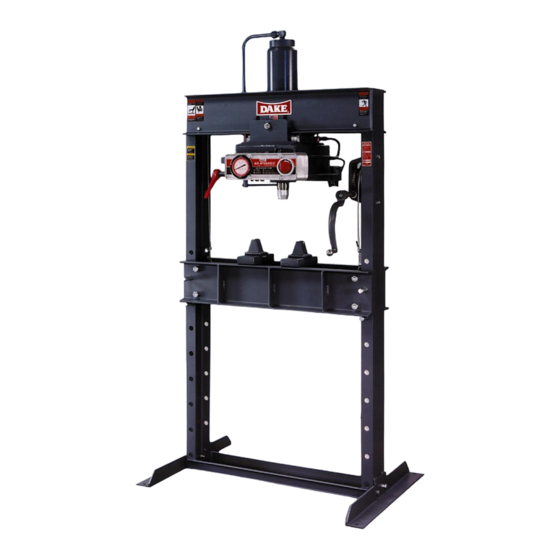

*Model 6-250 shown. May be slight differences.
WARNING!
Read and understand all instructions and responsibilities before operating. Failure to follow
safety instructions and labels could result in serious injury.
Dake Corporation
Phone: 800.937.3253
www.dakecorp.com
1809 Industrial Park Dr
Fax: 800.846.3253
Grand Haven, MI 49417
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Laguna Tools Dake 6-275
Summary of Contents for Laguna Tools Dake 6-275
- Page 1 DAKE AIR-OPERATED HYDRAULIC PRESS Model 6-275 & 6-475 INSTRUCTIONAL MANUAL *Model 6-250 shown. May be slight differences. WARNING! Read and understand all instructions and responsibilities before operating. Failure to follow safety instructions and labels could result in serious injury. Dake Corporation Phone: 800.937.3253 www.dakecorp.com 1809 Industrial Park Dr...
-
Page 2: Table Of Contents
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com TABLE OF CONTENTS DAKE STANDARD LIMITED WARRANTY ............2 RETURN & REFUND POLICY ................4 SAFEGUARDING THE POINT OF OPERATION ..........5 SPECIFICATIONS ....................6 SAFETY ........................ 7 SET UP ......................... 8 OPERATION ...................... -
Page 3: Dake Standard Limited Warranty
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com DAKE STANDARD LIMITED WARRANTY Finished Machines Dake warrants to the original purchaser the finished machine manufactured or distributed by it to be free from defects in material and workmanship under normal use and service within 1 year (12 months) from the delivery date to the end user. - Page 4 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Warranty Exceptions: The following conditions are not applicable to the standard limited warranty: (a) Part installation or machine service was not completed by a certified professional, and is not in accordance with applicable local codes, ordinances and good trade practices.
-
Page 5: Return & Refund Policy
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com RETURN & REFUND POLICY Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase, we are here to help. Returns All Dake manufactured / distributed machines, parts and couplings include a 30-day return option. -
Page 6: Safeguarding The Point Of Operation
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SAFEGUARDING THE POINT OF OPERATION ANSI B11.2 - Hydraulic Power Presses - Safety Requirements for Construction, Care, and Use It is important that Dake press users have a clear understanding of their responsibility involving the care and use of their Dake hydraulic press, including point-of-operation safe guards. -
Page 7: Specifications
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SPECIFICATIONS Model 6-275 Model 6-475 Number 906275 906475 Capacity 75 tons 75 tons 44” 44” Width between uprights 8/1/4” Width between table channels 8-1/4” 6” 6” Minimum ram to table 36”... -
Page 8: Safety
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SAFETY This is the safety alert symbol. When you see this symbol on your press be alert to the potential for personal injury. Employer is responsible to perform a hazard/PPE assessment before work activity. Follow recommended precautions and safe operating practices. -
Page 9: Set Up
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SET UP For shipping convenience some of the parts are not assembled. Assemble these parts in the following order: 1. Bolt the base angles to uprights using four provided bolts and nuts. Ensure that the base angles are against the stops on the uprights. -
Page 10: Operation
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com OPERATION WARNING DO NOT OVERSTROKE THE RAM. Over-stroking will cause premature seal failure. Models 6-275, and 6-475 have a 10-inch stroke. The press has been completely tested at the factory and after setting up according to this manual the press is ready for operation. -
Page 11: Troubleshooting
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com TROUBLESHOOTING 1. If the press loses pressure: a. Check all tubing joins for leaks and tighten tube nuts. b. Drain reservoir and remove packing nut (Item 75), valve rod (Item 73), and ball valve (Item 73). - Page 12 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 3. Nothing happens when the press is operated. a. Release valve is open. Be sure the release valve is firmly closed when pressing. b. If the ram will come down only a fraction of its rated stroke check the oil level in the reservoir with the ram at the top of its stroke.
-
Page 13: Exploded View & Parts List
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com EXPLODED VIEW & PARTS LIST REV062022... - Page 14 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Item Part Description Part No. Pulley Frame 706943 Spacer Hex Cap Screw (1/2”-13 x10”) 43361 Name Plate 81003 Table Plate 702A V-Blocks Table Spacer Assembly 716788 Hex Cap Screw (5/8”-11 x 10-1/2”) 79983 Table Channel 706945...
- Page 15 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com TABLE HOIST ASSEMBLY 701677-S Item Part Description Part No. Hoist Crank Assembly 701653A Worm Shaft 7530 Retaining Ring 43978 Retaining Ring 27437 Worm Key 47364 Worm Hoist Frame Drum Shaft 724P Drum Key Worm Gear...
- Page 16 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com POWER UNIT ASSEMBLY Item Part Description Part No. Hex Nut (1/2”-13) 43916 Cylinder Gasket 9777 Packing Ring 17942 Cylinder 2213 Piston Assembly – Serial No. > 192552 716227 Ram Spring (Small) 2231 Spring Spacer 2233...
- Page 17 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com * For presses with serial numbers lower than 192522 or made before 1992 refer to this exploded view and parts list for accurate part information. All other parts that are not listed below are the same for all the 75 ton Air Presses and can be found in this manual.
- Page 18 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com REV062022...
- Page 19 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Item Part Description Part No. Set Screw (5/16”) 43575 Nose Piece 701708 v-Nose Piece (Not Shown) 701712 Stroke Indicator Rod 2260 Hex Jam Nut (1/2”-13) 43940 Stroke Indicator Special Nut 2259 Socket Cap Screw (1/4”-20 x 1/4”) 43558...
- Page 20 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Item Part Description Part No. Pipe Bushing (1/4” x 1/8”) 1100 Check Valve (1/4” NPT) 1841 Tube Fitting (1/4” x 1/8” NPTF) 19576 139* Pipe Reducer Bushing 1102 Air Vent Tubing 7682 Tube...
- Page 21 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Item Part Description Part No. Pipe Plug (1/8”) Pipe Plug (3/8”) Ball Valve (Ø 3/4”) 1936 Release Valve Rod 2257 Valve Packing Washer 1937 Valve Rod Packing Nut 1931 Plunger Unit (Not Shown) 6151 Pivot Pin...
-
Page 22: Ordering Information
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Item Part Description Part No. Ball Retainer Ball Valve (Ø 1/4”) Relief Valve Seat Check Valve Spring Check Valve Spring Ball Valve (Ø 1/2”) Pipe Elbow 1099 136* Pipe Nipple 44157 Tube Elbow 1252...
