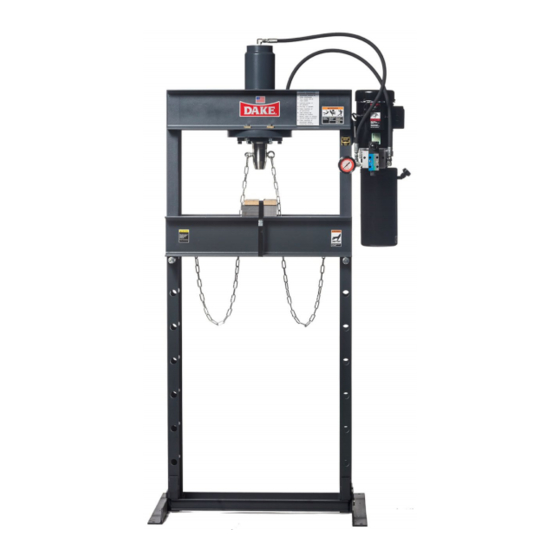

DAKE SINGLE PHASE DURA-PRESS
Force 25DA
INSTRUCTIONAL MANUAL
WARNING!
Read and understand all instructions and responsibilities before operating. Failure to follow
safety instructions and labels could result in serious injury.
Dake Corporation
Phone: 800.937.3253
www.dakecorp.com
1809 Industrial Park Dr
Fax: 800.846.3253
Grand Haven, MI 49417
Advertisement
Table of Contents
Related Manuals for Laguna Tools DAKE Force 25DA
Summary of Contents for Laguna Tools DAKE Force 25DA
- Page 1 DAKE SINGLE PHASE DURA-PRESS Force 25DA INSTRUCTIONAL MANUAL WARNING! Read and understand all instructions and responsibilities before operating. Failure to follow safety instructions and labels could result in serious injury. Dake Corporation Phone: 800.937.3253 www.dakecorp.com 1809 Industrial Park Dr Fax: 800.846.3253 Grand Haven, MI 49417...
-
Page 2: Table Of Contents
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com TABLE OF CONTENTS DAKE STANDARD LIMITED WARRANTY ............2 RETURN & REFUND POLICY ................4 SAFEGUARDING THE POINT OF OPERATION ........... 5 SPECIFICATIONS ....................6 SAFETY ........................7 SET UP ........................8 PRESS PLACEMENT ................... -
Page 3: Dake Standard Limited Warranty
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com DAKE STANDARD LIMITED WARRANTY Finished Machines Dake warrants to the original purchaser the finished machine manufactured or distributed by it to be free from defects in material and workmanship under normal use and service within 1 year (12 months) from the delivery date to the end user. - Page 4 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Warranty Exceptions: The following conditions are not applicable to the standard limited warranty: (a) Part installation or machine service was not completed by a certified professional, and is not in accordance with applicable local codes, ordinances and good trade practices.
-
Page 5: Return & Refund Policy
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com RETURN & REFUND POLICY Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase, we are here to help. Returns All Dake manufactured / distributed machines, parts and couplings include a 30-day return option. These policies are valid from the date of final shipment to the end user. -
Page 6: Safeguarding The Point Of Operation
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SAFEGUARDING THE POINT OF OPERATION ANSI B11.2 - Hydraulic Power Presses - Safety Requirements for Construction, Care, and Use It is important that Dake press users have a clear understanding of their responsibility involving the care and use of their Dake hydraulic press, including point-of-operation safe guards. -
Page 7: Specifications
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SPECIFICATIONS Force 25DA Model Number 909215 Capacity 25 tons Horse Power 1 HP Voltage 110V Single Phase Ram Travel 10” Pressing Speed 10 ipm Width between uprights 28” Max. ram to table 44”... -
Page 8: Safety
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SAFETY This is the safety alert symbol. When you see this symbol on your press be alert to the potential for personal injury. Employer is responsible to perform a hazard/PPE assessment before work activity. Label Placement View Label Part No. -
Page 9: Set Up
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Follow recommended precautions and safe operating practices. It is important that the operator understand all safety instruction listed below in order to prevent damage to themselves, others, or the machine: •... -
Page 10: Wiring Instructions
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com WIRING INSTRUCTIONS WARNING: A licensed qualified electrician that follows all state and local laws must wire and install electrics on this press. 110 Volt WARNING: Machine must have a designated 30 amp drop for 110 volts. This press will not operate correctly without 30 amps. -
Page 11: Maintenance
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com MAINTENANCE LUBRICATION Keep all working parts of press well oiled for easier operation. Also, keep a light film of oil over the entire surface of the ram to prevent rust. HYDRAULIC LINES AND FITTINGS If there is ever any maintenance done with the hydraulic components below is how to reinstall all components. -
Page 12: Troubleshooting
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com TROUBLESHOOTING SYMPTOM CAUSE SOLUTION This press has a self- Ram runs jerky while moving bleeding system, continue to Air is in the system up and down run the ram up and down approximately 15 times. -
Page 13: Exploded Views & Part Lists
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com EXPLODED VIEWS & PART LISTS 909215 REV012021... - Page 14 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Item Part Description Part No. Frame 86684 1/2" - 13NC x 2 3/4" 43355 1/2" Channel Washer 43657 Work-head Assembly 716640 1/2" Lock Washer 43647 1/2" - 13 Hex Nut 43916 Base Angle 1/2"...
-
Page 15: 25 Da Wokrhead Diagram
