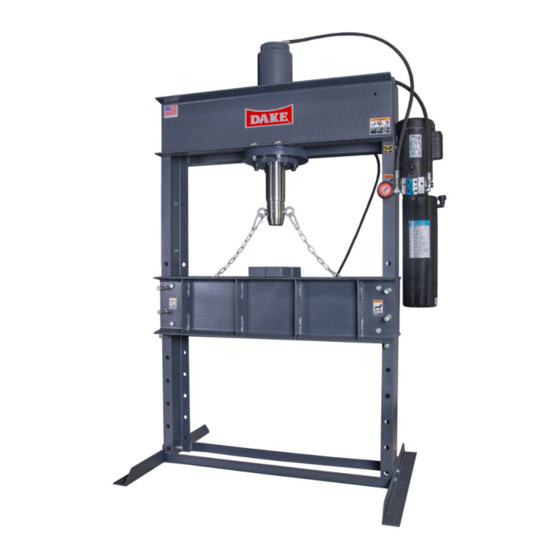

DAKE SINGLE PHASE DURA-PRESS
Force 50DA
INSTRUCTIONAL MANUAL
WARNING!
Read and understand all instructions and responsibilities before operating. Failure to follow
safety instructions and labels could result in serious injury.
Dake Corporation
Phone: 800.937.3253
www.dakecorp.com
1809 Industrial Park Dr
Grand Haven, MI 49417
Advertisement
Table of Contents
Related Manuals for Laguna Tools DAKE Force 50DA
Summary of Contents for Laguna Tools DAKE Force 50DA
- Page 1 DAKE SINGLE PHASE DURA-PRESS Force 50DA INSTRUCTIONAL MANUAL WARNING! Read and understand all instructions and responsibilities before operating. Failure to follow safety instructions and labels could result in serious injury. Dake Corporation Phone: 800.937.3253 www.dakecorp.com 1809 Industrial Park Dr Grand Haven, MI 49417...
-
Page 2: Table Of Contents
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com TABLE OF CONTENTS DAKE STANDARD LIMITED WARRANTY ............2 RETURN & REFUND POLICY ................4 SAFEGUARDING THE POINT OF OPERATION ........... 5 SPECIFICATIONS ....................6 SAFETY ........................7 SET UP ........................8 PRESS PLACEMENT ................... -
Page 3: Dake Standard Limited Warranty
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com DAKE STANDARD LIMITED WARRANTY Finished Machines Dake warrants to the original purchaser the finished machine manufactured or distributed by it to be free from defects in material and workmanship under normal use and service within 1 year (12 months) from the delivery date to the end user. - Page 4 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Warranty Exceptions: The following conditions are not applicable to the standard limited warranty: (a) Part installation or machine service was not completed by a certified professional, and is not in accordance with applicable local codes, ordinances and good trade practices.
-
Page 5: Return & Refund Policy
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com RETURN & REFUND POLICY Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase, we are here to help. Returns All Dake manufactured / distributed machines, parts and couplings include a 30-day return option. These policies are valid from the date of final shipment to the end user. -
Page 6: Safeguarding The Point Of Operation
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SAFEGUARDING THE POINT OF OPERATION ANSI B11.2 - Hydraulic Power Presses - Safety Requirements for Construction, Care, and Use It is important that Dake press users have a clear understanding of their responsibility involving the care and use of their Dake hydraulic press, including point-of-operation safe guards. -
Page 7: Specifications
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SPECIFICATIONS Force 50DA Model Number 909250 Capacity 50 tons Horse Power 2 HP Voltage 110V/220V Ram Travel 16” Pressing Speed 11 ipm Width between uprights 44” Max. ram to table 41-3/4”... -
Page 8: Safety
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SAFETY This is the safety alert symbol. When you see this symbol on your press be alert to the potential for personal injury. Employer is responsible to perform a hazard/PPE assessment before work activity. Label Placement View Label Part No. -
Page 9: Set Up
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Follow recommended precautions and safe operating practices. It is important that the operator understand all safety instruction listed below in order to prevent damage to themselves, others, or the machine: •... -
Page 10: Wiring Instructions
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com WIRING INSTRUCTIONS WARNING: A licensed qualified electrician that follows all state and local laws must wire and install electrics on this press. 110 Volt WARNING: Machine must have a designated 30 amp drop for 110 volts. This press will not operate correctly without 30 amps. -
Page 11: Maintenance
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com MAINTENANCE LUBRICATION Keep all working parts of press well oiled for easier operation. Also, keep a light film of oil over the entire surface of the ram to prevent rust. HYDRAULIC LINES AND FITTINGS If there is ever any maintenance done with the hydraulic components below is how to reinstall all components. -
Page 12: Electric Schematic
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com ELECTRIC SCHEMATIC 909250 REV012021... -
Page 13: Hydraulic Schematic
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com HYDRAULIC SCHEMATIC 909250 REV012021... -
Page 14: Exploded View & Parts List
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com EXPLODED VIEW & PARTS LIST 909250 REV012021... - Page 15 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Item Description Part No. Frame 706943 Hex Cap Screw (1/2”-13 x 1/4”) 43356 Channel Washer 43657 Workhead Assembly 716547 Lock Washer 1/2” 43647 Hex Nut 1/2”-13 43916 Base Angle Hex Cap Screw 1/2”-13 x 1”...
-
Page 16: 50 Da Workhead Diagram
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 50 DA WORKHEAD DIAGRAM Please contact factory for current prices. ORDERING INFORMATION Parts are available for direct purchase from Dake or through a distributor. When placing a parts order, you will need to provide the part number, name of part, and model number. All parts shipped F.O.B.
