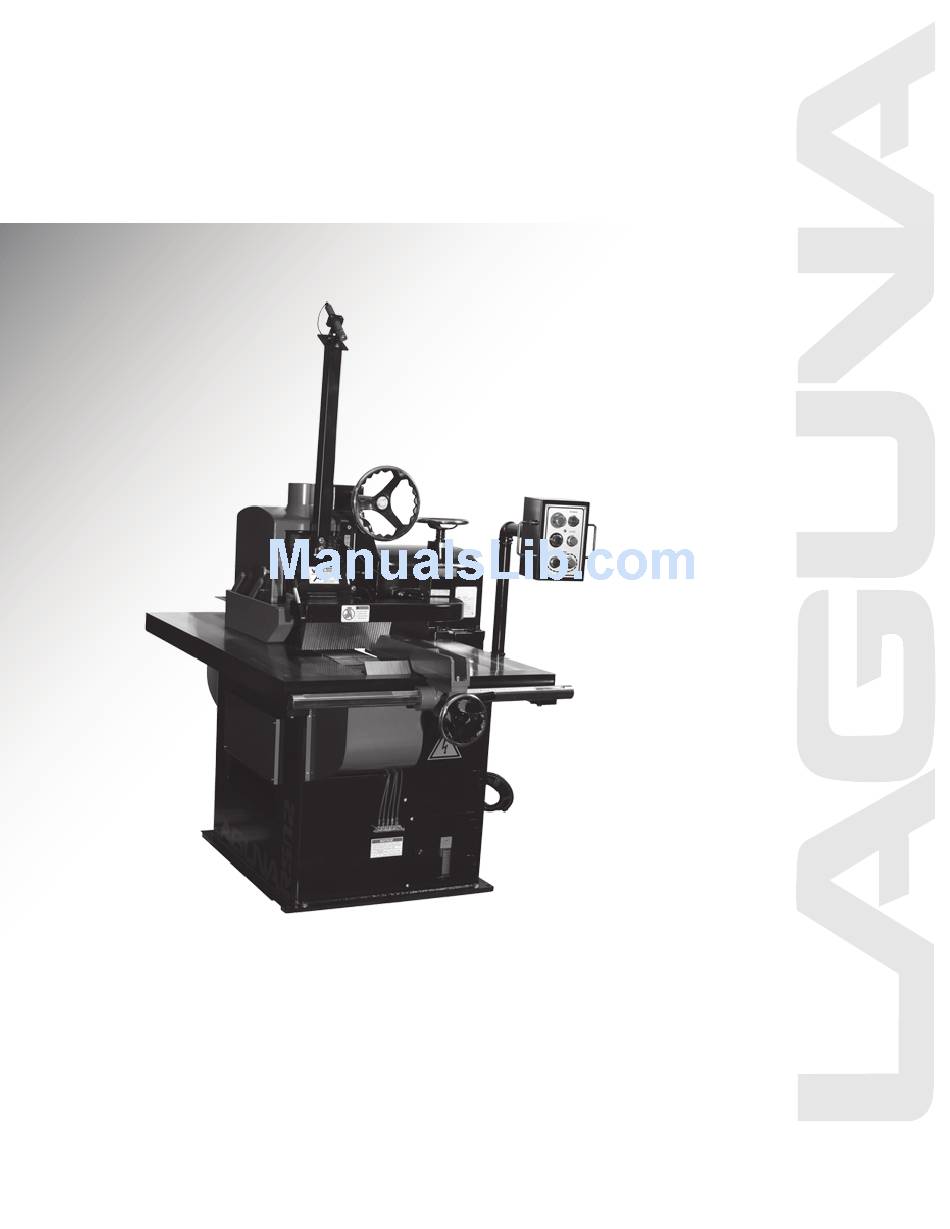

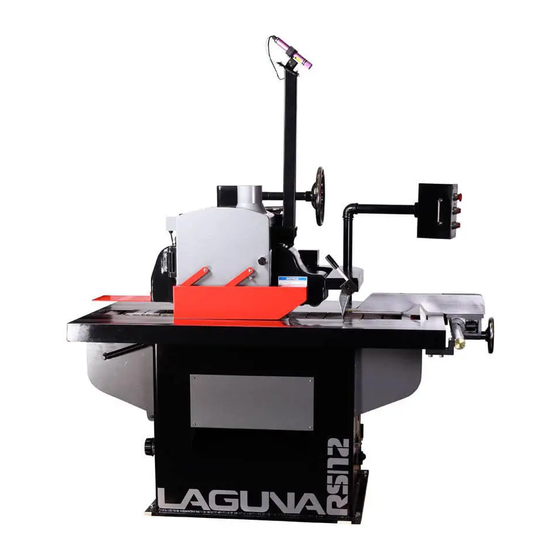

- Page 1 Straight Line Ripsaw Manual LAGUNA TOOLS 2072 Alton Parkway Irvine, California 92606 Model Number: MRS5000-0280 Ph: 800.234.1976 www.lagunatools.com © 2017, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.
- Page 2 Features • Precision fence locks securely and accurate parallelism to the • Double anti-kick fingers for maximum safety. • Ruggedly constructed frame, massive table • Precision built saw head assembly assures absolute straign line rip saw operation. • Easy quick change for speeds feed. •...
-
Page 3: General Safety Rules
G eneral s afety rules Know your machine. Read this operation manual carefully. Learn t machine application and limition, as well as the speci c potential hazards peculiar to it. Keep guards in place and in working order. The machine must be properly grounded to prevent electric shock. Keep children area clean. -
Page 4: Safety Rules
SAFETY RULES READ CAREFULLY BEFORE OPERATING THE MACHINE Learn the machines applications and limitations, as well as the specific potential hazards particular to this machine. Follow available safety instructions and safety rules carefully. Keep working area clean and be sure adequate lighting is available. Do not wear loose clothing, gloves, bracelets, necklaces, or ornaments. -
Page 5: Installation
Single Straight Line Rip Saw Single straight-line rip saws are carefully tested and inspected before shipment and if properly used will give perfect results. However, a reasonable amount of care and attention is necessary to ensure perfect performance and accurate work. It is imperative that you take a few moments to familiarize yourself with these instructions, as they will no doubt save you a lot of time and trouble. -
Page 6: Electrical Requirements
Figure A Figure B Attention! Warning! A voltage with a greater power source If in doubt contact a qualified can cause serious injuries to the work electrician before connected the operator and damage the machine machine to the power outlet. Conner wires Electrical requirements 3 Phase, 50/60HZ. -
Page 7: Electrical Control Panel
Wiring Diagram ELECTRICAL CONTROL PANEL... -
Page 8: Operating Procedures
Single straight-line rip saws are precision built and need no further adjustments once received. However the machine may need a few adjustments when the machine has been in operation for a long period of time. Follow these procedures for any necessary adjustments: 1. -
Page 9: Feed Speed
Feed Speed We recommend that a slow feed selection be selected when performing operations. When sawing is in process; observe that the motor load has not been overloaded. If over loading occurs; reduce the feed speed or change the saw blade to allow the saw arbor to function normally. Adjusting Feed Speed 1. - Page 10 Cutting alignment Cut Result If the cutting line is parallel, the width difference after cut between the front Correct alignment: and rear end is ±0.075 mm tolerance Cutting line must be parallel to fence. is acceptable. Cut Result Improper alignment: Fence is not parallel;...
- Page 11 Replacing saw blade 1. Disconnect the machine from the power source; verify that the machine has come to a full stop. 2. Loosen the saw arbor lock lever (1), open the cover of the pressure mechanism; raise the saw arbor by turning hand wheel (2) until the teeth are 5-10mm higher than the caterpillar.
- Page 12 Machine and lubrication Lubricator should be verifed daily before starting work operations; this will ensure normal functions at all times. A lubrication failure may cause serious damage to the machine, if the lubricator is damaged; stop machine operations immediately in order to prevent damage to the caterpillar. The lubricator of this machine has been designed with a safety device in order to ensure a longer service life.
- Page 26 Laguna Tools is not responsible for errors or omissions. Specifications subject to change. Machines may be shown with optional accessories. © 2017, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.
