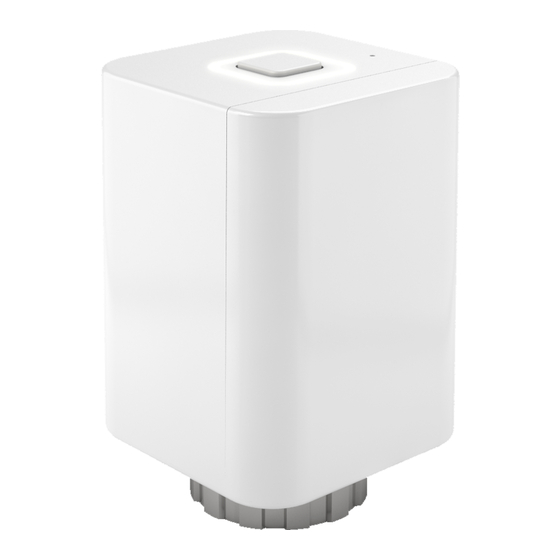

RFATV-2
Wireless thermo-valve
EN
Bezdrôtová termohlavica
SK
Characteristics /
Charakteristika
• The wireless thermo valve measures room temperature and huminity by internal sensor; based
on a set program in the system unit, it opens / closes the radiator valve.
• it can be combinated with these three system units: eLAN-RF 103 or RF Touch 2.
• It measures temperature in a range of 0...+50 °C and sends it to the system unit in regular 2-min.
intervals.
• Monitoring function Open window, where upon a sudden change in temperature, it shuts the
valve for a preset period.
• Setting the hysteresis and off set is performed in the system unit or application.
• Low battery indicator on the display of the system unit or in the application.
• Battery power (1.5 V / 2x AA - included in supply) with battery life of about 1 year based on
frequency of use.
• Range up to 100 m (in open space), if the signal is insuffi cient between the controller and unit,
use the signal repeater RFRP-20N or protocol component RFIO
• Communication frequency with bidirectional protocol iNELS RF Control.
• Package includes: 2x battery AA
Description /
Popis
Asembly /
Montáž
Asembly:
1.
- if necessary, mount on a suitable adapter to the existing heating valve.
- mount the coupling ring to the valve (adapter).
Montáž:
- v prípade potreby na existujúci ventil kúrenia naskrutkujte vhodný adapér.
- na ventil (adaptér) naskrutkujte spojovací krúžok.
Power:
2.
- open the battery cover.
- insert the batteries (included in packaging, observe the polarity).
- close the battery cover.
Napájanie:
- otvorte kryt batérií.
- vložte batérie (sú súčasťou balenia, pozor na polaritu).
- zatvorte kryt batérií.
Made in Czech Republic
2
that support this feature.
Central button
Centrálne tlačidlo
LED indication
LED indikace
ELKO EP, s.r.o. | Palackého 493 | 769 01 Holešov, Všetuly | Czech Republic | e-mail: elko@elkoep.com | Support: +420 778 427 366
ELKO EP SLOVAKIA, s.r.o. | Fraňa Mojtu 18, 949 01 Nitra | Telefón: +421 37 6586 731 | E-mail: elkoep@elkoep.sk
www.elkoep.com / www.elkoep.sk
• Bezdrôtová termohlavica meria interným senzorom teplotu a vlhkosť v miestnosti, na základe
nastaveného programu v systémovom prvku otvára / zatvára ventil radiátora.
• Možno ju kombinovať s jedným z troch systémových prvkov: eLAN-RF 103 nebo RF Touch 2.
• Meria teplotu v rozsahu 0 .. + 50 ° C a posiela ju do systémového prvku v pravidelných 2min.
intervaloch.
• Funkcia stráženie Otvoreného okna, kedy pri náhlej zmene teploty uzavrie ventil na vopred
nastavenú dobu.
• Nastavenie hysterézie a off setu sa vykonáva v systémovom prvku alebo aplikácii.
• Indikácia slabej batérie na displeji systémového prvku alebo v aplikácii.
• Batériové napájanie (1.5V / 2 x AA - súčasťou balenia) so životnosťou cca 1 rok podľa početnosti
používania.
• Dosah až 100 m (na voľnom priestranstve), v prípade nedostatočného signálu medzi ovládačom
a prvkom použite opakovač signálu RFRP-20N alebo prvky s protokolom RFIO
podporujú.
• Komunikačná frekvencia s obojsmerným protokolom iNELS RF Control.
• Súčasť balenia: 2x batérie AA
Temperature and humidity sensor
Teplotné a vlhkostné čidlo
RESET button
RESET tlačidlo
Battery 2x AA
Batérie 2x AA
assembly valve heating /
montáž na ventil kúrenia
valve /
ventil
02-4/2022 Rev.0
2
, ktoré túto funkciu
adapter /
wireless thermostat /
adaptér
bezdrôtová termohlavica
1/3
