Elko iNels RFATV-2 Quick Start Manual

RFATV-2

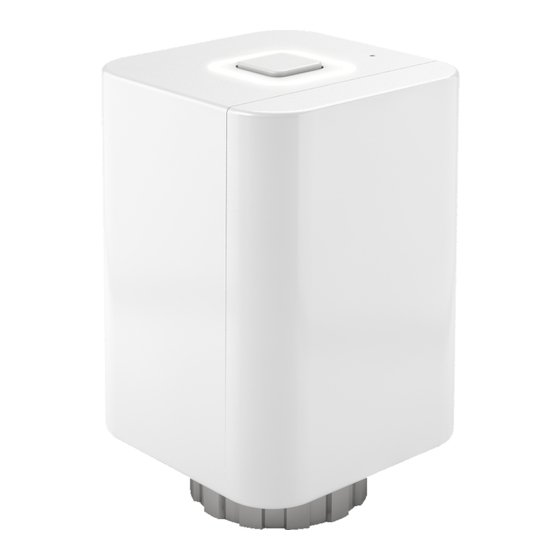

Wireless thermo-valve
EN
Bežična termo glava
SR
Characteristics / Karakteristika
• The wireless thermo valve measures room temperature and huminity by internal sensor; based
on a set program in the system unit, it opens / closes the radiator valve.
• it can be combinated with these three system units: eLAN-RF 103 or RF Touch 2.
• It measures temperature in a range of 0...+50 °C and sends it to the system unit in regular 2-min.
intervals.
• Monitoring function Open window, where upon a sudden change in temperature, it shuts the
valve for a preset period.
• Setting the hysteresis and off set is performed in the system unit or application.
• Low battery indicator on the display of the system unit or in the application.
• Battery power (1.5 V / 2x AA - included in supply) with battery life of about 1 year based on
frequency of use.
• Range up to 100 m (in open space), if the signal is insuffi cient between the controller and unit,
use the signal repeater RFRP-20N or protocol component RFIO
• Communication frequency with bidirectional protocol iNELS RF Control.
• Package includes: 2x battery AA
Description / Opis

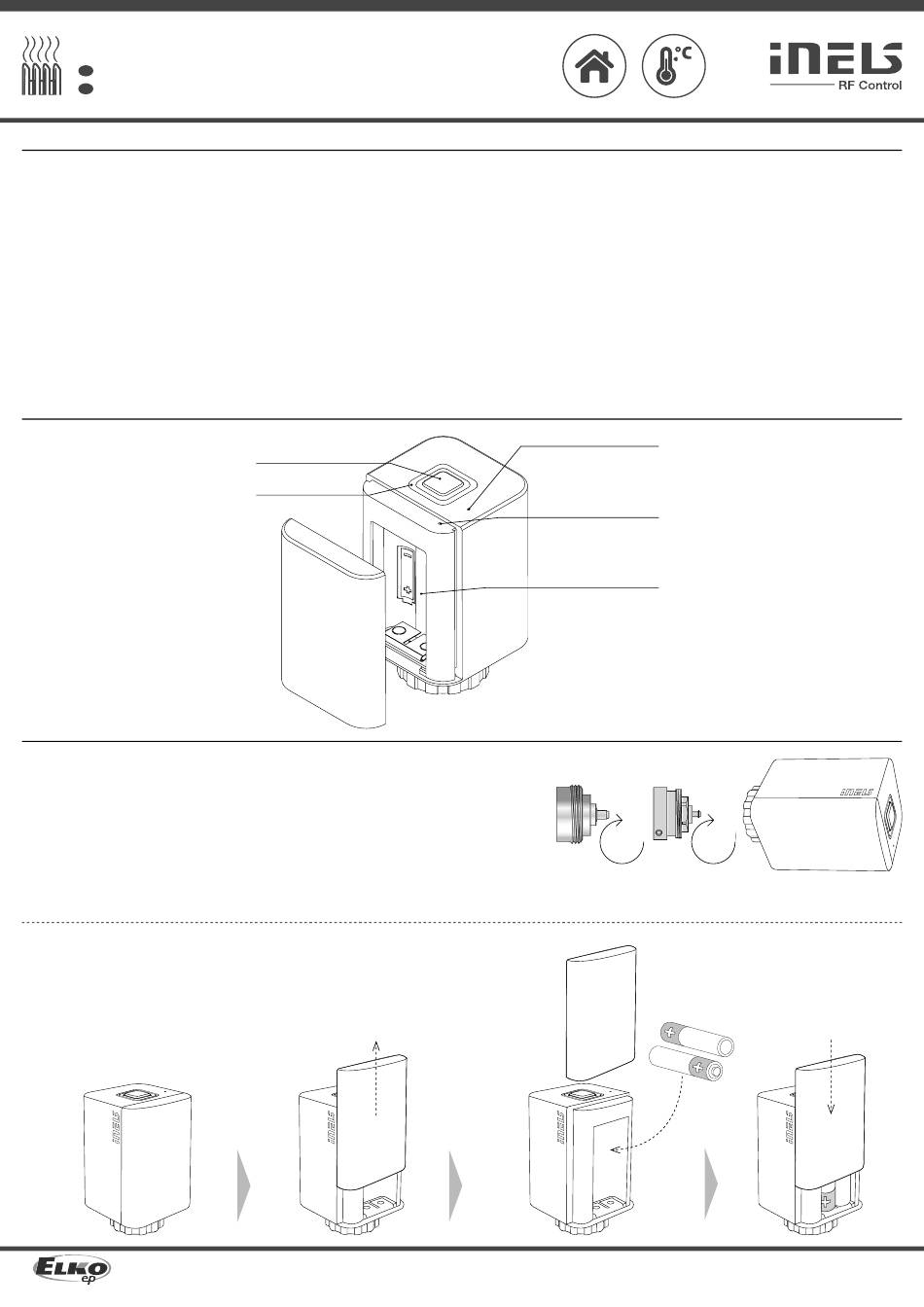

Asembly / Montaža
Asembly:
1.
- if necessary, mount on a suitable adapter to the existing heating valve.
- mount the coupling ring to the valve (adapter).
Montaža:
- u slučaju potrebe našrafi te na postojeći ventil grejanja odgovarajući adapter.
- na ventil (adapter) našrafi te glavu
Power:
2.
- open the battery cover.
- insert the batteries (included in packaging, observe the polarity).
- close the battery cover.
Punjenje:
- otvorite poklopac baterija.
- ubacite baterije (sastavni su deo pakovanja, pazite polaritet).
- zatvorite poklopac baterija.
Made in Czech Republic
2
that support this feature.
Central button
Centralni taster
LED indication
LED indikacija
• Bežična termoglava meri pomoću internog senzora temperaturu i vlagu u prostoriji, na osnovu
podešenog programa u sistemskom elementu otvara / zatvara ventil radijatora.
• Ona se može kombinovati sa ovim elementima: eLAN-RF 103 ili RF Touch 2.
• Meri temperaturu u rasponu od 0 ... +50 °C i šalje je u sistemski elemenat u redovnim
intervalima po 2 minute.
• Funkcija ''Detekcija otvorenog prozora'' , kada prilikom nagle promene temperature zatvori
ventil za unapred podešeno vreme.
• Podešavanje histerezisa i ofseta se vrši u sistemskom elementu ili aplikaciji.
• Indikacija slabe baterije na displeju sistemskog elementa ili u aplikaciji.
• Punjenje baterije 1.5 V / 2x AA – sastavni deo pakovanja sa vekom trajanja cca 1 godina prema
brojnosti korišćenja.
• Domet do 100 m (u slobodnom prostoru), u slučaju nedovoljnog signala izmedju regulatora i
elementa upotrebite ponavljanje signala RFRP-20N ili elemente sa protokolom RFIO2 koji ovu
funkciju podržavaju.
• Komunikaciona frekvenca sa obosmernim protokolom iNELS RF Control
• U osnovi je glava kompatibilna sa ventilima M30x1,5
• Sastavni deo pakovanja: 2x baterije AA
Temperature and humidity sensor
Senzor za temp eraturu i vlagu
RESET button
Taster za RESET
Battery 2x AA
Baterije 2x AA
assembly valve heating /
montaža na ventil grejanja
valve /
ventil
