Elko iNELS EST3 Quick Start Manual

EST3
Control unit with touch screen
EN
Characteristics
- The control unit with touch screen EST3 is a suitable control element of the iNELS system in places
where it is necessary to control multiple devices. The unit replaces several drivers and enables
minimizing the number of switches on the wall.
- EST3 features a 3.5 „color touchscreen with an aspect ratio of 3:4. The basic display resolution is
240 x 320 pixels. The color depth of 16.7 million colors (24 bit color, True Color).
- Use the touch sensing surface to control confi gured buttons and symbols on the screen just
by a light touch of a fi nger. Individual symbols on the screen are in the „Press" animated by the
associated output in the system.
- EST3 can have a combination of these screens:
- Buttons screen
- Temperature control screen
- Control RGB/RGBY/RGBW light sources screen.
- Selecting the default screen is possible from the iDM3 software.
- For screen of buttons one of four diff erent matrixes buttons can be used - 2x2, 2x3, 3x3 and 3x4.
Matrix selection can be done from the iDM3 software. On the screen can then be used up to 12
buttons to control appliances or scenes.
- In the menu settings, directly on the EST3 component one of 48 prepared symbols (for control of
lighting, shading, scenes and other technologies) can be assigned to each button or the buttons
can be used to enter text (number of characters depends on the matrix of buttons and therefore
the size of the buttons).
- The temperature regulation screen enables coordination of the temperature of the selected
heating circuit in a range of ±3, ±4 or ±5 °C (in relation to settings in iDM3).
- The virtual wheel can be used for temperature correction, where you can drag your fi nger across
the screen to control the temperature by half a degree Celsius.
- The temperature correction can also be used instead of the virtual wheel symbols „+ „ and „- „ .
- EST3 units do not have an integrated temperature sensor, or terminals for connection to an
external temperature sensor. Within the iDM3 software, it is possible to assign any unit of heat
input system iNELS.
- The control RGB/RGBY/RGBW light sources screen allows you to comfortably control your RGB/
RGBY/RGBW light sources and adjust the luminous atmosphere as needed.
- For these RGB/RGBY/RGBW light sources , it is possible to use the controls on the screen to adjust
the color and brightness. It is also possible to directly set the RGB/RGBY/RGBW illumination light
source into white color.
- Located in the left upper corner of the screen are 4 indicators that can signal the status of any
logical input / output in the iNELS system.
- In iDM3 it is possible to defi ne the displayed screen, the default screen, matrix of buttons, type
RGB/RGBY/RGBW and a correction range for the temperature control.
- In the settings menu directly on the device EST3 it is possible to select the menu language, screen
saver, sleep mode, brightness adjustment and symbols and texts for each button.
- EST3 are designed as LOGUS 90 devices (EST3 however cannot be placed into multi-frames with
other devices in this design) and are intended for mounting to installation box.

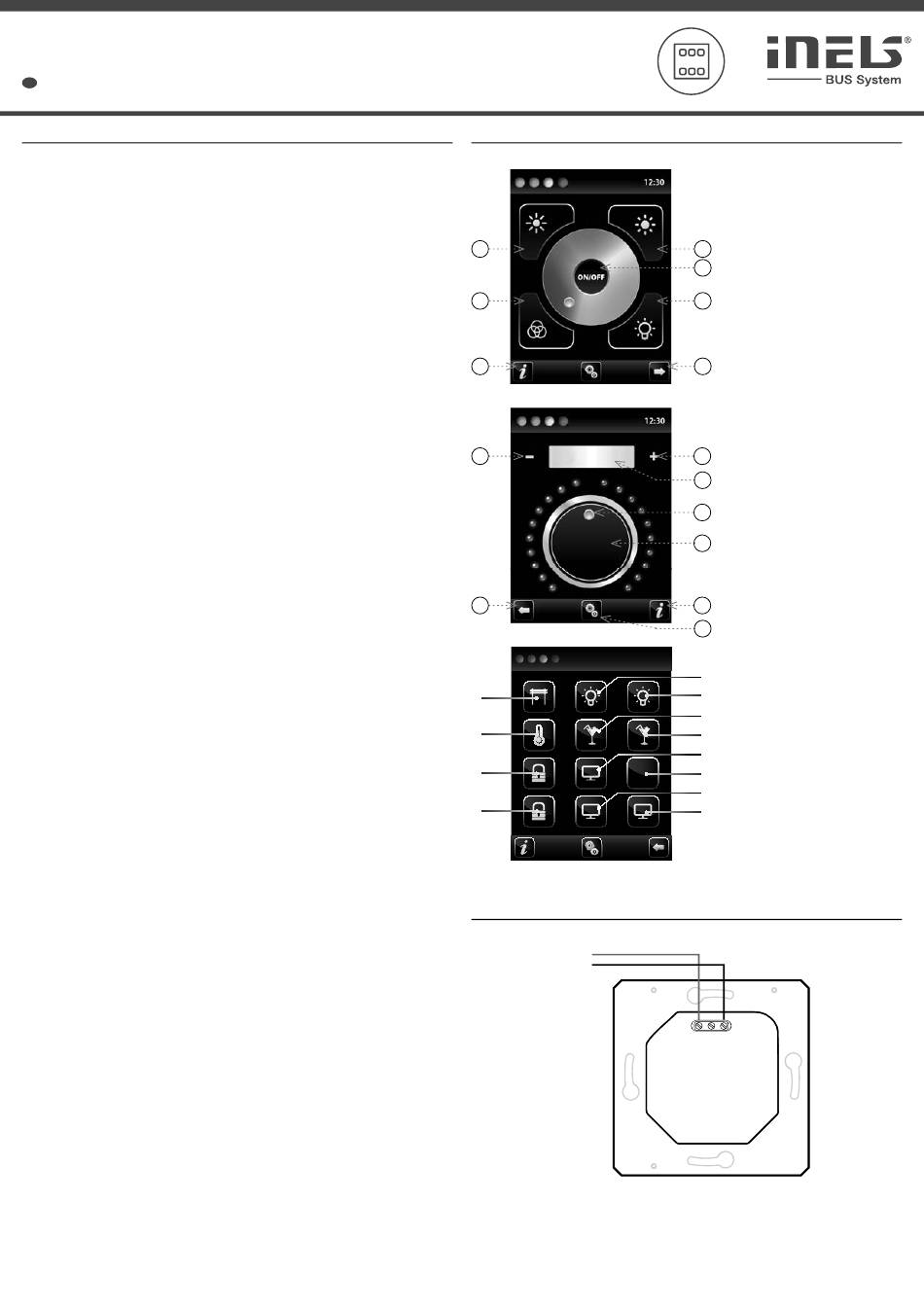

The screenshots
0 %
1
2
3
8
+ 20.5 °C
20.5 °C
7
12:30
IN1
IN4
IN7
A b A b c c de
IN10
Connection
BUS +
-
BUS
1. Decrease brightness
2. Illumination in color based on RGB
3. Device Information
4. Increase brightness
5. Output ON/OFF button
4
6. Illumination in white
5
7. Button for moving between screens
8. Circuit temperature adjustment
6
9. Required temperature
10. Current temperature
11. Settings
7
8
9
8
10
3
11
Legend:
EST3 => settings menu => design
IN2
selection => 2x2 - input IN1- IN4
IN3
EST3 => settings menu => design
IN5
selection => 2x3 - input IN1- IN6
IN6
EST3 => settings menu => design
selection => 3x3 - input IN1- IN9
IN8
EST3 => settings menu =>design
IN9
selection => 3x4 - input IN1- IN12
e 1 1
IN11
IN12
EST3
BUS+ BUS-
1/2
