iFIT PRO-FORM TRAINER 9.0 User Manual page 12

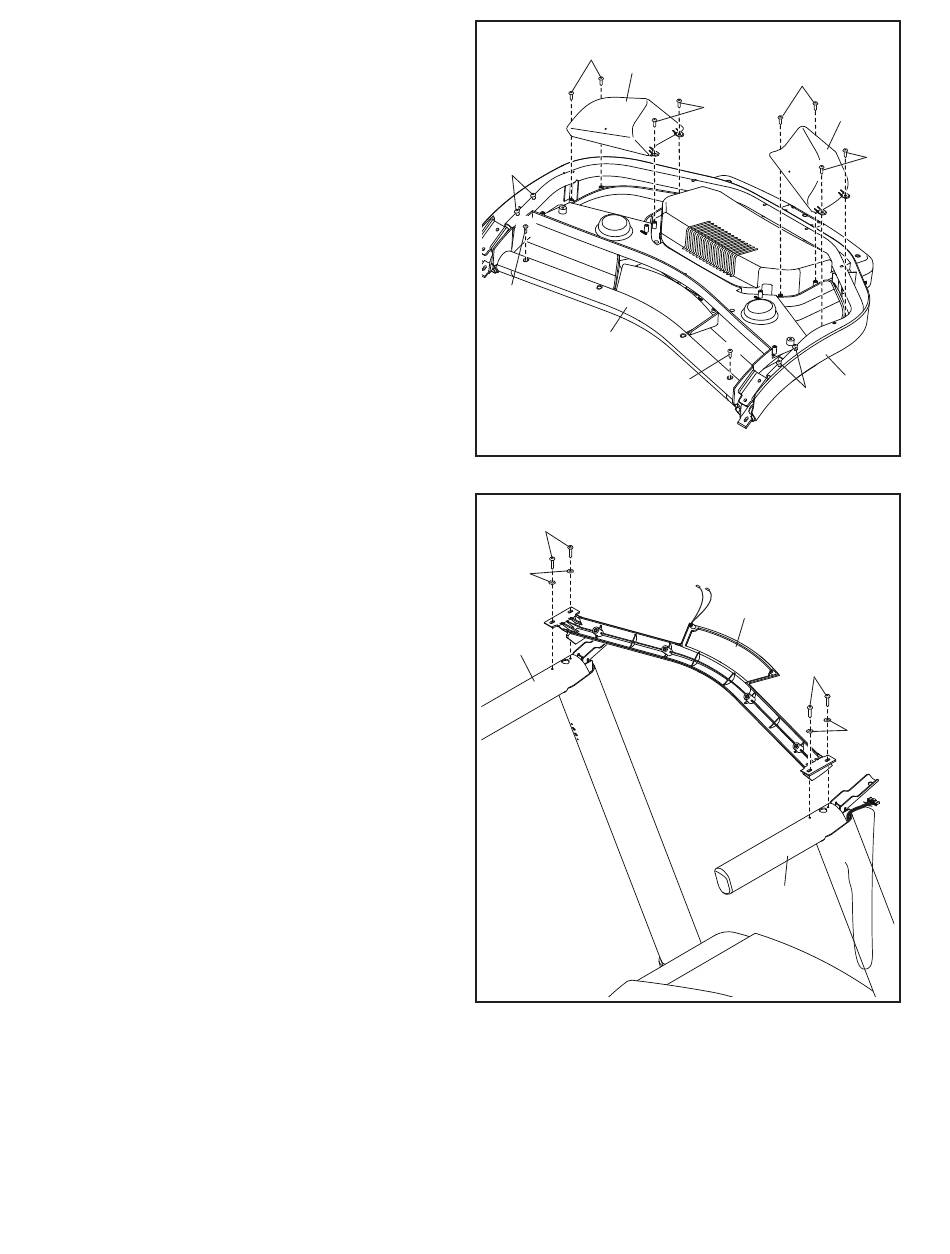

8. Set the Console Base (74) face down on a soft
surface to avoid scratching the Console Base.
Remove and discard the two indicated screws
(J). Then, remove the Crossbar (75).
Next, identify the Left and Right Trays (85, 86).
Attach the Trays to the Console Base (74) with
eight #8 x 1/2" Screws (10); do not overtighten
the Screws.
Then, remove and save the four indicated
5/16" x 3/4" Screws (13).
9. IMPORTANT: To avoid damaging the
Crossbar (75), do not use power tools and do
not overtighten the #10 x 3/4" Screws (9).
Orient the Crossbar (75) as shown. Attach the
Crossbar to the Handrails (72) with four #10 x
3/4" Screws (9) and four #10 Star Washers (8);
start all four Screws, and then tighten them.
8
10
86
13
J
75
9
9
8
72
12
10
10
85
J
74
13
75
9
8
72
10
