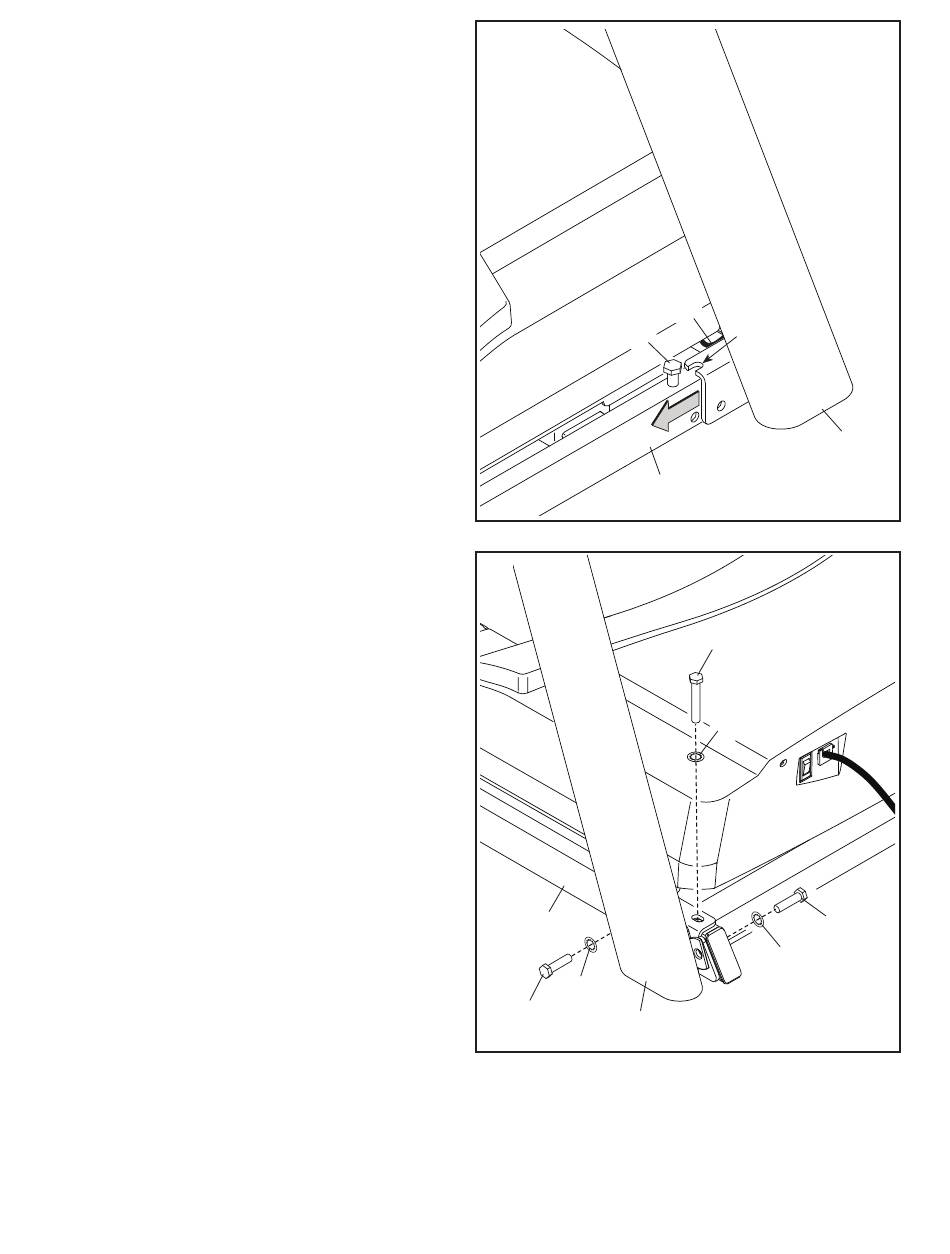

4. Set the Right Upright (79) on the Base (88) as
shown. Do not pinch the Upright Wire (80).
Slide the Right Upright so that the 3/8" x 2 3/8"
Screw (2) in the Base is inserted into the slot
(E) in the Right Upright. Do not tighten the
Screw yet.
5. Attach the Right Upright (79) to the Base (88)
with a 3/8" x 2 3/8" Screw (2), a 3/8" x 1 1/4"
Screw (3), a 3/8" x 1 1/2" Screw (4), and three
3/8" Star Washers (6) as shown; do not fully
tighten the Screws yet.
Attach the Left Upright (not shown) as shown
in steps 4 and 5. Note: There are no wires on
the left side.
4
2
5
88
6
3
79
10
80
E
88
2
6
4
6
79
