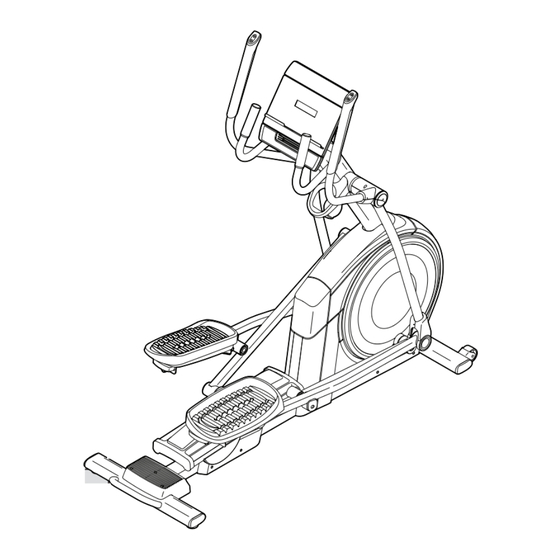

Model No. NTEL89824-INT.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
MEMBER CARE
UNITED KINGDOM
Website: iFITsupport.eu
E-mail: csuk@iconeurope.com
Write:
iFIT Health & Fitness Limited
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: australiacc@iFIT.com
Write:
iFIT Inc.
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
USER'S MANUAL
iconeurope.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NordicTrack AIRGLIDE LE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iFIT NordicTrack AIRGLIDE LE

Summary of Contents for iFIT NordicTrack AIRGLIDE LE

  • Page 1 Write the serial number in the space above for reference. Serial Number Decal MEMBER CARE UNITED KINGDOM Website: iFITsupport.eu E-mail: csuk@iconeurope.com Write: iFIT Health & Fitness Limited Unit 4, Westgate Court Silkwood Park OSSETT WF5 9TT UNITED KINGDOM AUSTRALIA Call: 1800 993 770 E-mail: australiacc@iFIT.com Write: iFIT Inc.

  • Page 2: Table Of Contents

    UK/EU DECLARATION OF CONFORMITY ..........Back Cover NORDICTRACK and IFIT are registered trademarks of iFIT Inc. App Store is a trademark of Apple Inc., registered in the U.S.

  • Page 3: Important Precautions

    To reduce the risk of burns, fire, electric shock, or injury to persons, read all important precautions and instructions in this manual and all warnings on your elliptical before using your elliptical. iFIT assumes no responsibility for personal injury or property damage sus- tained by or through the use of this product.
  • Page 4 18. The elliptical does not have a freewheel; the 20. Over exercising may result in serious injury pedals will continue to move until the fly- or death. If you feel faint, if you become short wheel stops. Reduce your pedaling speed in of breath, or if you experience pain while a controlled way.

  • Page 5: Warning Decal Placement

    WARNING DECAL PLACEMENT This drawing shows the location(s) of the warning decal(s). If a decal is missing or illegible, see the front cover of this manual and request a free replacement decal. Apply the decal in the location shown. Note: The decal(s) may not be shown at actual size.

  • Page 6: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the revolutionary reading this manual, please see the front cover of this NORDICTRACK AIRGLIDE LE elliptical. The manual. To help us assist you, note the product model ® AIRGLIDE LE elliptical provides an impressive selec- number and serial number before contacting us.

  • Page 7: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity needed for assembly.

  • Page 8: Assembly

    ASSEMBLY • Assembly requires two persons. • To identify small parts, see page 7. • Place all parts in a cleared area and remove the • Assembly can be completed using the included packing materials. Do not dispose of the packing tools.
  • Page 9 3. Attach the Rear Stabilizer Cover (15) to the Rear Stabilizer (2) with three M4 x 18mm Machine Screws (155); start all three Machine Screws, and then tighten them. 4. With the help of a second person, place some of the packing materials (not shown) under the front of the Frame (1).
  • Page 10 5. Apply a small amount of the included grease to the axle on the right Crank Arm (20). Next, identify the Right Roller Arm (59), orient it as shown, and slide it onto the right Crank Arm (20). Attach the Right Roller Arm (59) with an M8 x 20mm Screw (146) and a Crank Cover (77);...
  • Page 11 7. Avoid pinching the wires. Have a second person hold the Upright (4) on the Frame (1). Avoid pinching Note: Two M10 x 25mm Screws (92) are the wires preattached to the Frame (1). Attach the Upright (4) with two additional M10 x 25mm Screws (92);...
  • Page 12 9. Orient the Right Pedal Arm (58) as shown, and apply grease to the axle. Insert the Right Pedal Arm (58) into the Right Upper Body Leg (60) and into the Right Roller Arm (59). Attach the Right Pedal Arm (58) to the Right Roller Arm (59) with an M8 x 20mm Flat Head Screw (120) and a Retainer (55);...
  • Page 13 11. See step 7. Tighten the four M10 x 25mm Screws (92). Next, have a second person hold the Console (7) near the Upright (4). Connect the wires on the Console to the Upright Wire (157) and to the Extension Wire (111). IMPORTANT: The wire connectors should slide together easily and snap into place with an audible click.
  • Page 14 13. Orient the Lower Console Cover (152) as shown, and snap it into the back of the Console (7). Note: It may be helpful to pivot the Console downward. Then, orient the Upper Console Cover (153) as shown, and snap it into the back of the Console (7).
  • Page 15 15. Identify the Right Upper Body Arm (61) and have a second person hold it near the Right Upper Body Leg (60). Avoid pinching the wires See the left inset drawing. Locate the wire tie (E) and the wire pull (B) attached to the Right Control Wire (134).
  • Page 16 17. Avoid pinching the wires. Orient a Lower Tray Cover (81) as shown, and hold it near the Right Control Wire (134). Attach the Lower Tray Cover Avoid to the right side of the Accessory Tray (37) with pinching two M4 x 16mm Screws (101). the wires Repeat this step on the other side of the elliptical.
  • Page 17 20. Avoid pinching the wires. Orient the Right Arm Front and Rear Covers (65, 66) around the Right Upper Body Leg (60) as shown, and attach them with two M4 x 16mm Screws (101). Repeat this step on the other side of the elliptical.

  • Page 18: How To Use The Elliptical

    HOW TO USE THE ELLIPTICAL HOW TO PLUG IN THE POWER CORD Follow the steps below to plug in the power cord. This product must be earthed. If it should 1. Plug the malfunction or break down, earthing provides a path of indicated end least resistance for electric current to reduce the risk of the power...
  • Page 19 HOW TO MOVE THE ELLIPTICAL HOW TO LEVEL THE ELLIPTICAL If the elliptical rocks slightly on your floor during use, Due to the size and weight of the elliptical, mov- turn one or both of the leveling feet (J) beneath the rear ing it requires two persons.
  • Page 20 HOW TO EXERCISE ON THE ELLIPTICAL To mount the elliptical, hold the handlebars (M) or the upper body arms (N) and step onto the pedal (O) that is in the lower position. Then, step onto the other pedal. Push the pedals until they begin to move with a continuous motion.

  • Page 21: How To Use The Console

    FEATURES OF THE CONSOLE tured workouts that automatically control the resistance The advanced console offers an array of features of the pedals as iFIT trainers guide you through immer- ELNT89824 designed to make your workouts more effective and sive exercise sessions.
  • Page 22 HOW TO TURN ON THE CONSOLE IMPORTANT: If the incline system does not calibrate automatically, see HOW TO CHANGE IMPORTANT: If the elliptical has been exposed to CONSOLE SETTINGS on page 26 and manually cold temperatures, allow it to warm to room tem- calibrate the incline system.
  • Page 23 Calories per Hour (CALS/HR)—The approximate HOW TO USE THE MANUAL MODE number of calories you are burning per hour. 1. Begin pedaling or press any button on the Resistance (RESIST)—The resistance level of the console to turn on the console. pedals.
  • Page 24 You can also customize the scan mode to display 5. When you are finished exercising, the console only the desired workout information in the will turn off automatically. repeating cycle. If the pedals do not move for several seconds, the console will pause and the time will flash in the To customize the scan mode, first...
  • Page 25 4. Select an iFIT workout. The console offers access to a large and varied library In the iFIT app, touch the buttons at the bottom of of iFIT workouts when you download the iFIT app to the screen to select either the home screen (Home your smart device and connect it to the console.
  • Page 26 To disconnect your smart device from the console, first select the disconnect option in the iFIT app. 3. Change settings as desired. Then, press and hold the iFIT Sync button on the console until the LED on the console turns solid Software Version Number—The software version green or the Bluetooth symbol disappears from the number will appear in the display.
  • Page 27 Display Test—This screen is intended to be used Demo Mode—The currently selected demo mode by service technicians to identify whether the option will appear in the display. The console display is working correctly. features a demo mode, designed to be used if the elliptical is displayed in a store.
  • Page 28 HOW TO USE THE FAN HOW TO USE THE SOUND SYSTEM The fan has several speed To play music or audio books through the console settings, including an auto sound system while you exercise, plug a 3.5 mm male mode. While the auto mode to 3.5 mm male audio cable (not included) into the is selected, the speed of the jack on the console and into a jack on your personal...
  • Page 29 HOW TO USE AN OPTIONAL HEART RATE To connect your Bluetooth Smart heart rate moni- tor to the console, press the iFIT Sync button on the MONITOR console; the console pairing number will appear in the Whether your display. When your heart rate monitor is connected, the goal is to Bluetooth symbol will appear in the display.

  • Page 30: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING MAINTENANCE HOW TO ADJUST THE DRIVE BELT Regular maintenance is important for optimal If the pedals slip while you are pedaling, even while performance and to reduce wear. Inspect and properly the resistance is adjusted to the highest level, the drive tighten all parts each time the elliptical is used.
  • Page 31 See the drawing below. Locate the Reed Switch (38). HOW TO ADJUST THE REED SWITCH Turn the Pulley (19) until a Magnet (43) is aligned with If the console does not display correct feedback, the Reed Switch. the reed switch should be adjusted. To adjust the reed switch, first press the power switch to the off position and unplug the power cord.

  • Page 32: Exercise Guidelines

    EXERCISE GUIDELINES Aerobic Exercise—If your goal is to strengthen your WARNING: cardiovascular system, you must perform aerobic Before beginning this exercise, which is activity that requires large amounts or any exercise program, consult your physi- of oxygen for prolonged periods of time. For aerobic cian.
  • Page 33 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch; never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.
  • Page 34 NOTES...

  • Page 35: Part List

    PART LIST Model No. NTEL89824-INT.0 R1023A Key No. Qty. Description Key No. Qty. Description Frame Roller Rear Stabilizer Left Pedal Handle Access Cover Axle Cover Upright Pivot Spacer M4 x 19mm Screw Retainer Front Stabilizer Roller Arm Bushing Console Pedal Arm Bearing Assembly Roller Guide Right Pedal Arm Crank Bearing Sleeve...
  • Page 36 Key No. Qty. Description Key No. Qty. Description M4 x 16mm Screw Zip Tie M8 Locknut Right Hand Grip/Control Wire M8 x 20mm Washer M6 x 26mm Washer M10 x 115mm Screw Lower Rear Shield M8 x 16mm Screw Right Pedal Handle Lower Motor Cover Pedal Pin Crank Spacer...

  • Page 37: Exploded Drawing

    EXPLODED DRAWING A Model No. NTEL89824-INT.0 R1023A...
  • Page 38 EXPLODED DRAWING B Model No. NTEL89824-INT.0 R1023A...
  • Page 39 EXPLODED DRAWING C Model No. NTEL89824-INT.0 R1023A...

  • Page 40: Ordering Replacement Parts

    UK/EU DECLARATION OF CONFORMITY NTEL89824-INT contains the BMD-ICN-1 Bluetooth module. Hereby, iFIT Health & Fitness declares that the radio equipment type BMD-ICN-1 is in compliance with Directive 2014/53/EU and Radio Equipment Regulation 2017. iFIT Health & Fitness, 1500 S 1000 W, Logan, UT 84320, USA This declaration of conformity is issued under the sole responsibility of the manufacturer.
