SmartRunner 3-D ToF
Product Specifications
2.4

Display Elements

The sensor has eight LEDs that signal various operating states or events.

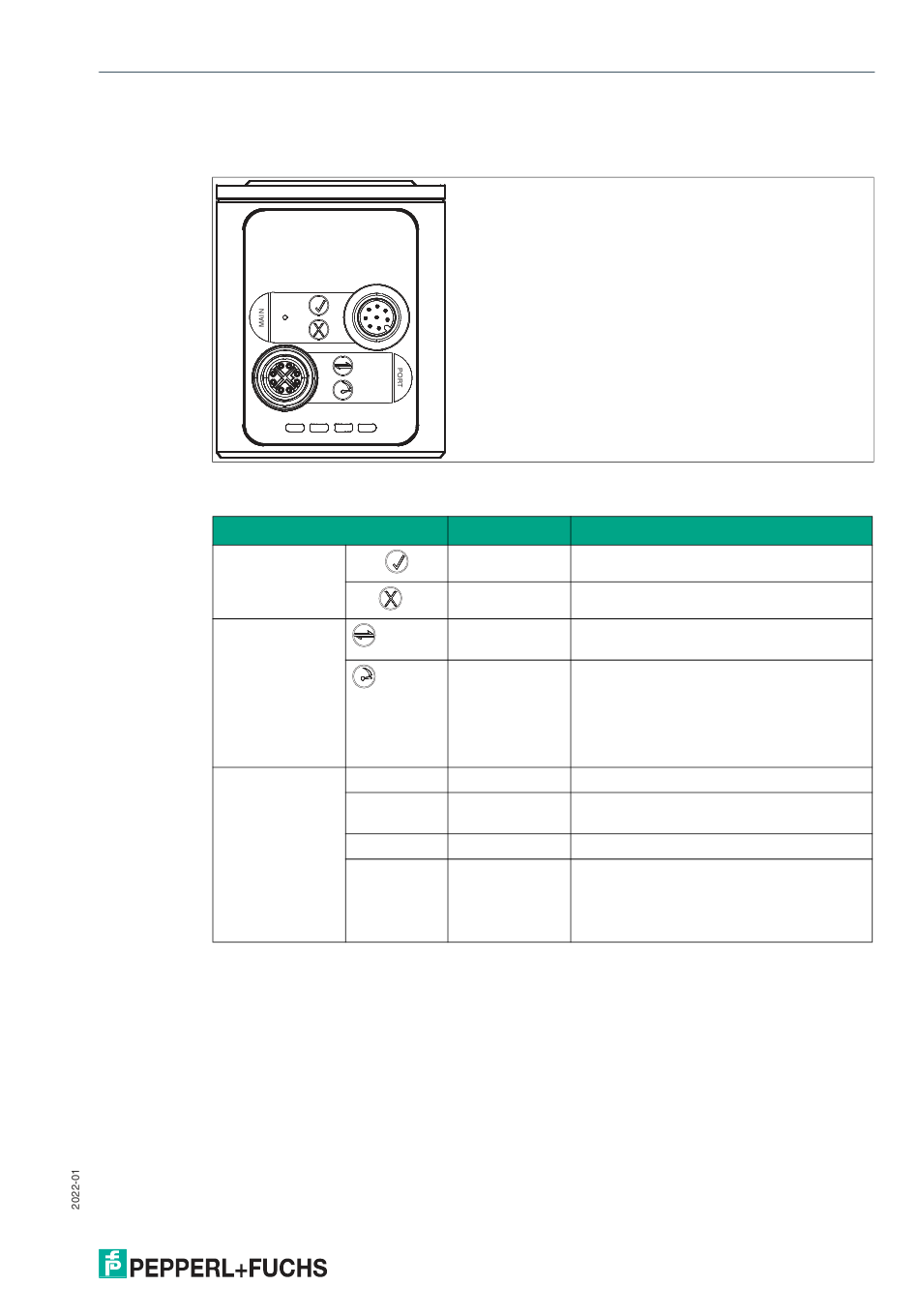

Figure 2.8
Designation
MAIN
PORT
Operating mode
GOOD
BAD
LINK/ACT
SPEED
OUT1 OUT2 BUS PWR
Display elements
LED color
green
GOOD
red
BAD
yellow
LINK/ACT
green/yellow
SPEED
OUT1 green/yellow
OUT2 Yellow
BUS -
PWR red
Description
Reserved
Reserved
The LED flashes at short intervals when
bus data is being exchanged.
• No connection or 10 MBit connec-
tion—LED off
• 100 MBit connection—LED lights up yel-
low
• 1 Gbit connection—LED lights up green
Reserved
The OUT2 LED flashes once briefly when
the image capture starts.
No function
• The LED lights up red when the sensor
restarts or is in update mode.
• The LED lights up red in the event of a sys-
tem-related malfunction.
