U-Line HEX H-2560 Quick Start Manual

π
H-2560
HEX PICNIC TABLE
TOOLS NEEDED
7/16" Socket Wrench
Power Drill (Or Screw Gun)
Base x 3
Support Arm x 3

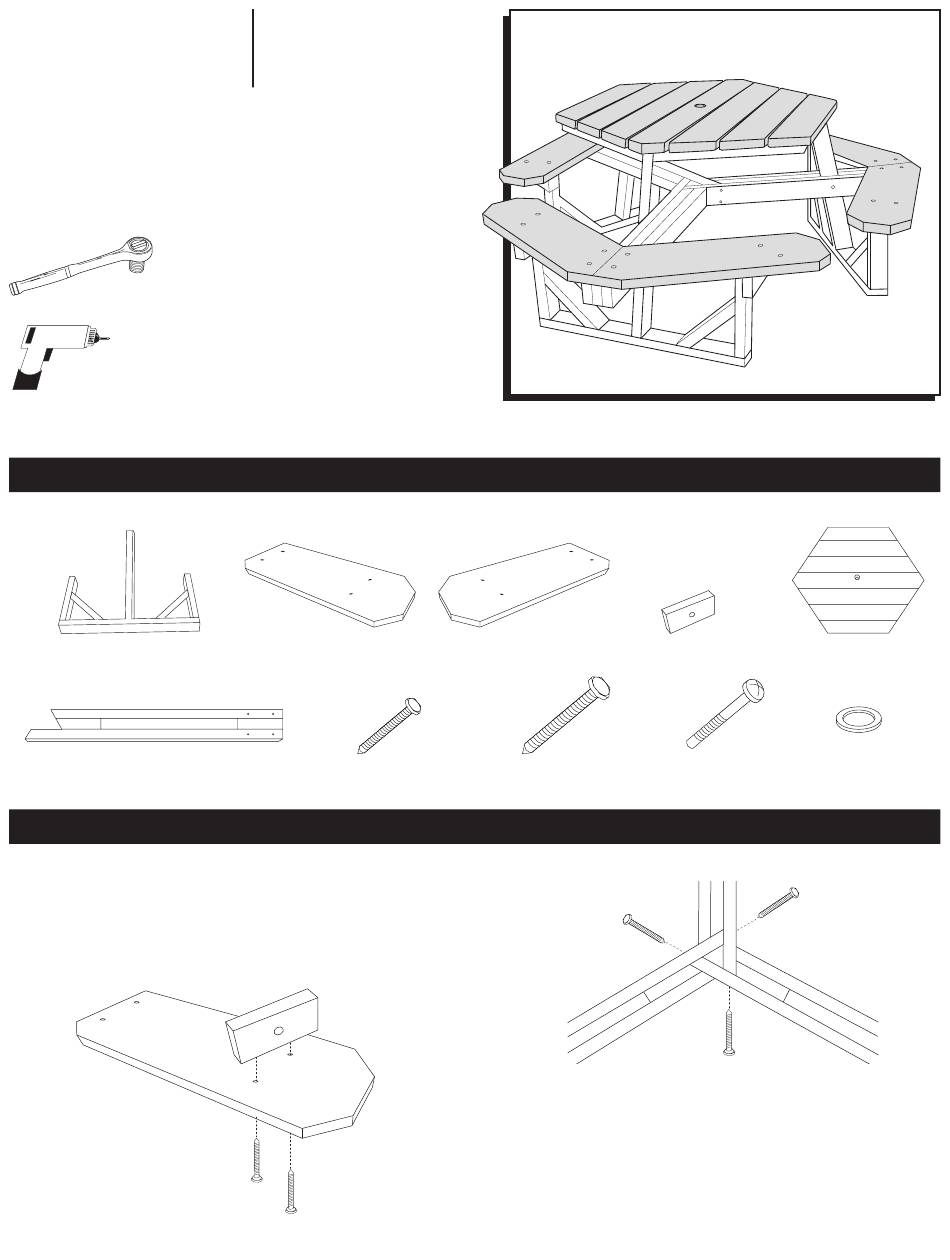

1. Loosely attach the 6 anchor blocks to the bottom of
the 6 seats with the 3½" lag screws and washers with
the socket. The bored hole on the block faces the
side with three edges. (See Figure 1)
Figure 1
PAGE 1 OF 2
1-800-295-5510
uline.com
PARTS
Left Seat x 3 Right Seat x 3
2½" Lag Screw x 6
ASSEMBLY
Anchor Block x 6
3½" Lag Screw x 30 3" Deck Screw x 6
Figure 2
2. Place the 3 support arms on a flat level surface in a
fan pattern. Using the 3" deck screws, loosely attach
the support arms together. Use 2 deck screws per
side. (See Figure 2)
Tabletop x 1
Washer x 36
