U-Line H-6278 Quick Start Manual

U-Line H-6278 Quick Start Manual

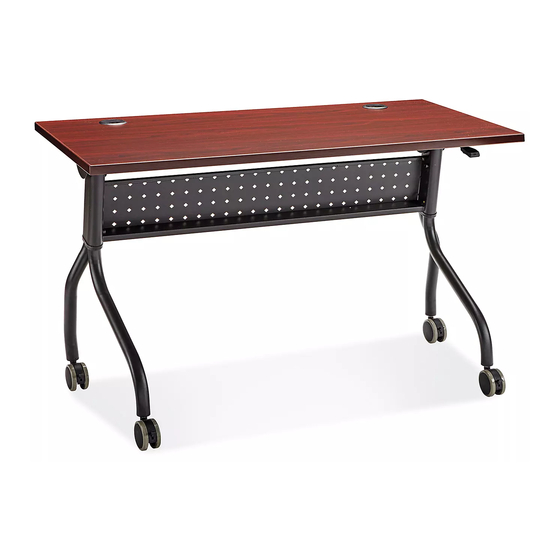

Mobile training table

Advertisement

Available languages

Available languages

Quick Links

H-6278, H-6279
H-6280
MOBILE TRAINING
TABLE
TOOLS NEEDED
Allen Wrench
Open-End Wrench
(included)
(included)
Bracket x 2
NOTE: Assemble on a smooth, non-marring
surface to avoid scratching.
NOTE: Do not fully tighten bolts and screws until
assembly is complete.
IMPORTANT! Check that all parts are included.
1.
Insert leg into socket on table frame. Offset side of
leg must point to lever side of table frame. Repeat
for remaining leg. (See Figure 1)
Figure 1
Lever
PAGE 1 OF 6
1-800-295-5510
uline.com
Phillips
Screwdriver
Table Frame x 1
Knob x 4
Bolt x 4
Offset Side of Leg
Leg
Modesty
Panel
Drill
(optional)
PARTS
Tabletop Panel x 1
Washer x 4
ASSEMBLY
2. Use two bolts to secure leg. Repeat for remaining leg.
(See Figure 2)
Figure 2
3. Place tabletop panel upside down. With second
person, align table frame with holes in tabletop panel.
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Two Person Assembly
Recommended
Leg x 2
5/8" Screw x 10
1⁄" Screw x 8
Bolt
0721 IH-6278

Advertisement

loading
Need help?

Need help?

Do you have a question about the H-6278 and is the answer not in the manual?

Questions and answers

Summary of Contents for U-Line H-6278

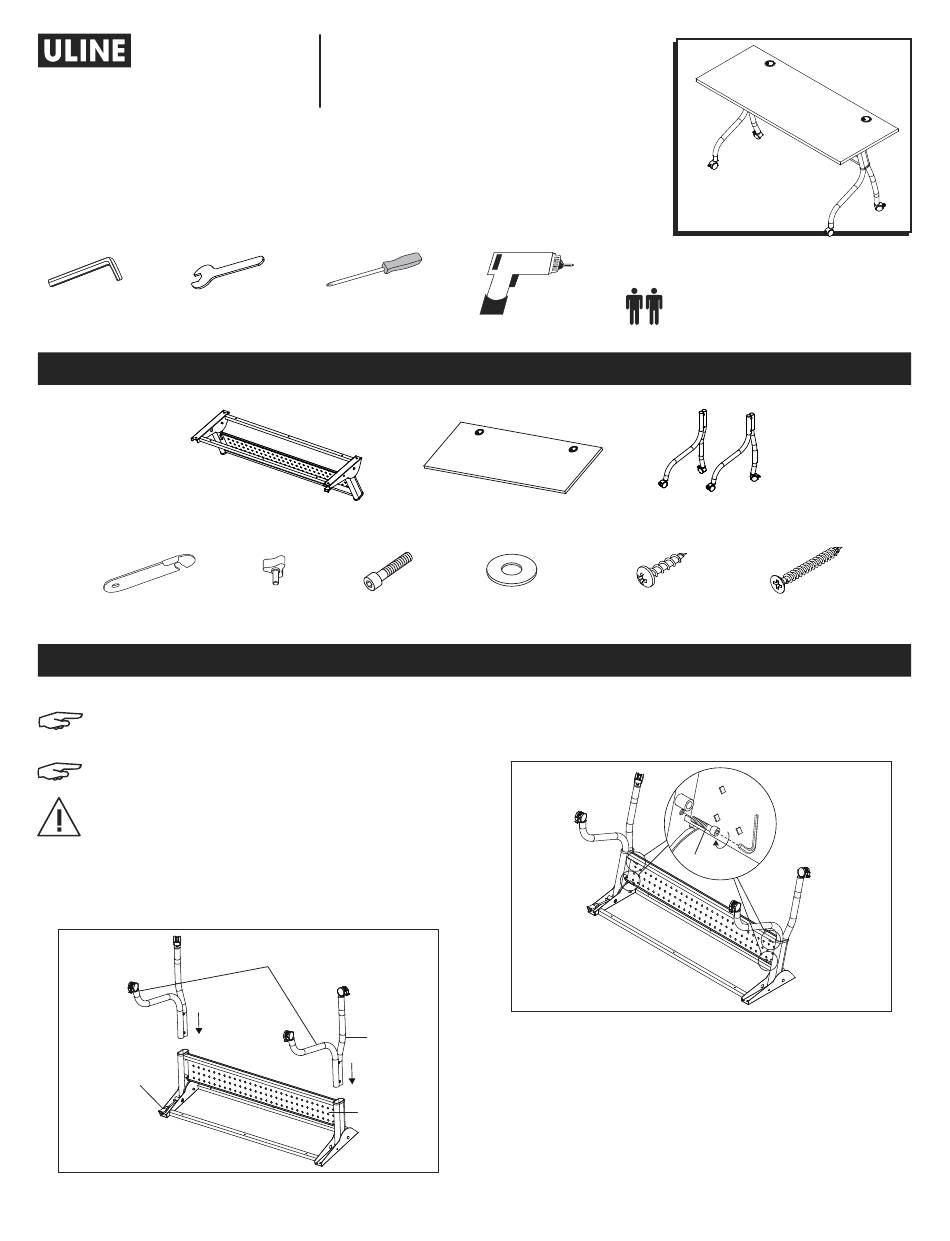

  • Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. H-6278, H-6279 1-800-295-5510 H-6280 uline.com MOBILE TRAINING TABLE TOOLS NEEDED Two Person Assembly Allen Wrench Open-End Wrench Phillips Drill Recommended (included) (included) Screwdriver (optional) PARTS Tabletop Panel x 1...
  • Page 2 ASSEMBLY CONTINUED 4. With second person holding assembled base in NOTE: Fully tighten bolts and screws. place, use two 5/8" screws to secure each corner of 6. With second person, set table upright. Adjust casters table frame. (See Figure 3) to compensate for uneven floors.
