H-6577

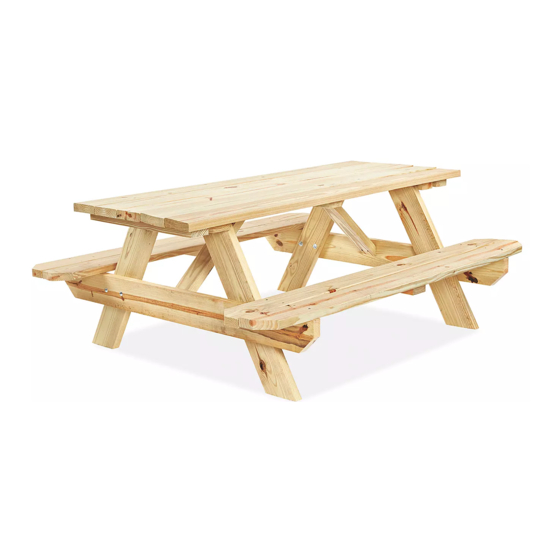

8' DELUXE WOODEN
PICNIC TABLE
TOOLS NEEDED
Drill
Tape Measure
Preassembled Table Top x 1
23½" Diagonal Brace x 2
Figure 1
PAGE 1 OF 6
1-800-295-5510
uline.com
Rubber Mallet
59" Pre-Drilled Seat Cross-Member x 2
30" Pre-Drilled Table Leg x 4
7/16" Socket Wrench
PARTS
96" Seat Plank x 4
62" Seat Brace x 2
ASSEMBLY
1. Verify all parts are present before beginning.
Hardware is bagged and stapled to the table.
2. Place the pre-drilled seat cross-member on top of
the pre-drilled table legs. Position the legs so the
holes are aligned and the tops of the legs are level
and straight. (See Figure 1)
3. Loosely attach with the 3½" carriage bolts through
the pre-drilled holes using the washers and nuts.
NOTE: It is recommended to use a rubber
mallet to tap bolts through holes.
4. Repeat steps 1-3 for the second side.
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
1/8" Drill Bit
Level
2½" Wood Screw x 52
Nut x 8
3½" Carriage
Washer x 8
Bolt x 8
0421 IH-6577
