H-6932, H-6933
ECONOMY TRAINING
TABLE
TOOLS INCLUDED
Allen Wrench
Allen Wrench
5 mm
4 mm
Tabletop x 1
Locking Swivel
Caster x 2
Figure 1
1⁄" Socket
Nut
Screw
PAGE 1 OF 6
1-800-295-5510
uline.com
Double Sided
Wrench
PARTS
Modesty Panel x 1
Nut x 2
Swivel Caster
x 2
ASSEMBLY
Nut
Tabletop
1⁄" Socket Screw
x 2
1.
Place tabletop frame side up on a clean
surface. Depress the lever on the tabletop
locking mechanism to release the lock. Align
holes in legs with holes in tabletop frame as
shown. Secure with a 1⁄" socket screw and
nut on each side. (Ensure the elongated part
for the legs are positioned over the tabletop
as shown.) Tighten with enclosed 5 mm Allen
wrench and double sided wrench.
(See Figure 1)
1⁄" Socket
Screw
Lever
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Leg x 2
1⁄" Socket Screw
x 4
0621 IH-6932
Advertisement
Related Manuals for U-Line Н-6932
Summary of Contents for U-Line Н-6932

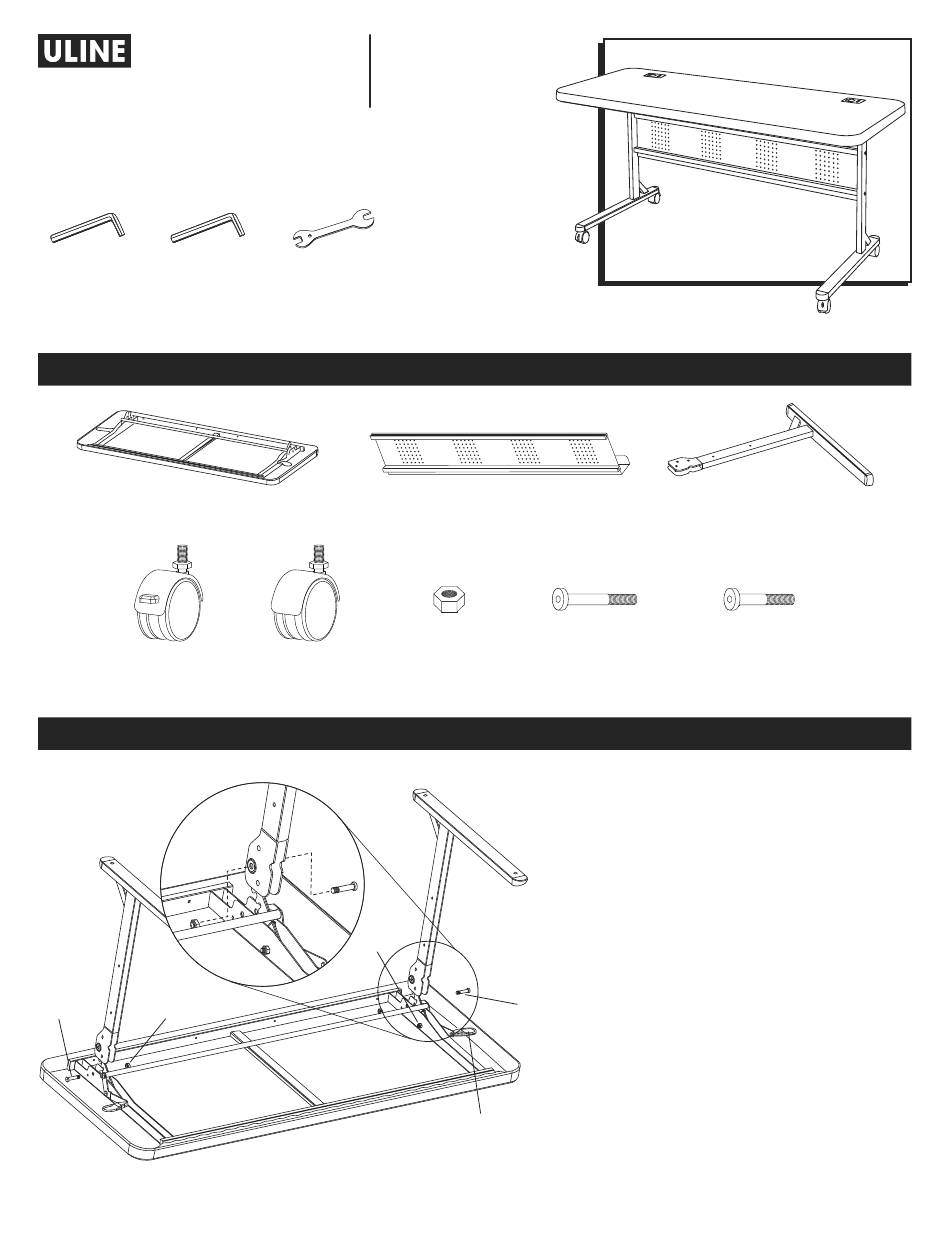

- Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. H-6932, H-6933 1-800-295-5510 uline.com ECONOMY TRAINING TABLE TOOLS INCLUDED Allen Wrench Allen Wrench Double Sided 5 mm 4 mm Wrench PARTS Tabletop x 1 Modesty Panel x 1 Leg x 2 Nut x 2 1⁄"...
