Instruction Manual
Make: Jeep
Model: Wrangler JL
Make: Jeep
Model: Wrangler JL
*** This product was designed to fit 2-Door models equipped with the factory 3-piece hard top.***
P/N: 79-25002
____________________________________________
Year: 2018-2024
Year: 2018-2024

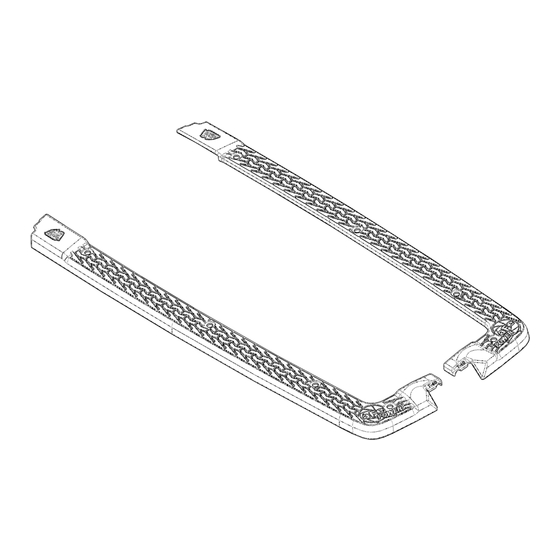

Terra Guard Tub Rail Covers
Engine: I4-2.0L (t)
Engine: V6-3.6L
Advertisement
Related Manuals for aFe Power Terra Guard 79-25002
Summary of Contents for aFe Power Terra Guard 79-25002
- Page 1 Terra Guard Tub Rail Covers Instruction Manual P/N: 79-25002 ____________________________________________ Make: Jeep Model: Wrangler JL Year: 2018-2024 Engine: I4-2.0L (t) Make: Jeep Model: Wrangler JL Year: 2018-2024 Engine: V6-3.6L *** This product was designed to fit 2-Door models equipped with the factory 3-piece hard top.***...
- Page 2 • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • For technical support please call 951-493-7185. • Ensure you have all necessary tools before proceeding. • Do not attempt to work on your vehicle when the engine is hot. •...
- Page 3 Page 3...
- Page 4 REMOVAL Figure A Refer to Figure A for Steps 1-2 Step 1: Starting on the driver’s side, from the inside of the vehicle, unclip and remove the driver’s side freedom panel. Store it in a safe location. Step 2: Moving to the passenger’s side, from the inside of the vehicle, unclip and remove the passenger’s side freedom panel.
- Page 5 REMOVAL Figure B Refer to Figure B for Step 3 Step 3: Using a T-50 Torx bit and driver, remove the (2) two screws from the front of the hard top located on the roll bar rails. There is (1) one screw on each side. Save these bolts for later. Page 5...
- Page 6 REMOVAL Figure C Refer to Figure C for Step 4 Step 4: From the back of the vehicle on the driver’s side, disconnect the electrical connector and water line from the hard top and clip them into their respective storage locations. Page 6...
- Page 7 REMOVAL Figure D Refer to Figure D for Step 5 Step 5: From the back of the vehicle, using a T-50 Torx bit and driver, remove the (6) six bolts that secure the hard top to the tub rail of the Jeep. Save these bolts for later. Page 7...
- Page 8 REMOVAL Figure E Refer to Figure E for Steps 6-7 Step 6: With help from someone else, carefully lift the hard top off the vehicle and store it in a safe location. Step 7: Gently wipe down the surface of the bare surface of the tub rail once the hard top is removed. Page 8...
- Page 9 INSTALL Figure F Refer to Figure F for Step 8 Step 8: Place the new Terra Guard Tub Rail Cover into position over the tub rail on the passenger side. Page 9...
- Page 10 INSTALL Figure G Refer to Figure G for Steps 9-10 Step 9: Using the bolts removed in previous steps, loosly install (4) four bolts into the coorisponding holes in the Tub Rail Cover. Leave bolts loose for alignment. Step 10: Align the end of the Tub Rail Cover with the door jam as shown, then tighten the bolts with a T-50 torx bit and driver.
- Page 11 INSTALL Figure H Refer to Figure H for Step 11 Step 11: Your installation is now complete! Page 11...
- Page 12 Corona, CA 92879 https://afepower.com/contact P/N: 79-25002...
