Seakeeper 7000 GYRO Manual

Procedure: 24VDC INPUT POWER MODIFICATION FOR DELAYED SHUTDOWN
Description: Instructions for how to modify the 24VDC input power for delayed shutdown of Gyro Control J-Box
1. PURPOSE
This service bulletin describes how to install a time delay relay in the 24VDC input power to the Gyro
Control J-Box to delay the shutdown of power for 1.5 hours. This will allow the operator to initiate a
shutdown delay that runs the Gyro's glycol cooling pump for 1.5 hours as the flywheel spools down
and then shuts off power to the Gyro Control J-Box.
2. PARTS REQUIRED
Time Delay Relay, SPDT
Switch, Maintained, SPST
Enclosure, Watertight
DIN Rail, 35mm
Cable, 2 conductor
Cable Gland w/ Lock Nut &
Seal Ring for 24V Power Cable
Cable Gland w/ Lock Nut &
Seal Ring for Switch Cable
3. INSTALLATION
Install the time delay relay in an appropriate enclosure. CABLE 1, 24VDC input power to the Gyro
Control J-Box, must route through this enclosure. Install the SPST switch in an accessible location,
typically the operator console. Connect these items in series with 24VDC input power according to the
schematic diagram below.
M7000 GYRO CONTROL J-BOX
LINE FILTER
FN 2090-10
P' P RED LOAD
LOAD LINE
N' N
Product:
SERVICE
BULLETIN
MODEL 7000 GYRO
Item
Magnecraft P/N: 821TD10H-UNI
Teleflex Marine P/N: RK19650
McMaster-Carr P/N: 7301K34
McMaster-Carr P/N: 8961K15
(to meet applicable standards)
Waytek P/Ns: 24602, 24641, &
24651 (or equivalent)
Waytek P/Ns: 24601, 24640, &
24650 (or equivalent)
TIMER RELAY
16
CB1 +24VDC
LINE 18
10 A
24V RTN

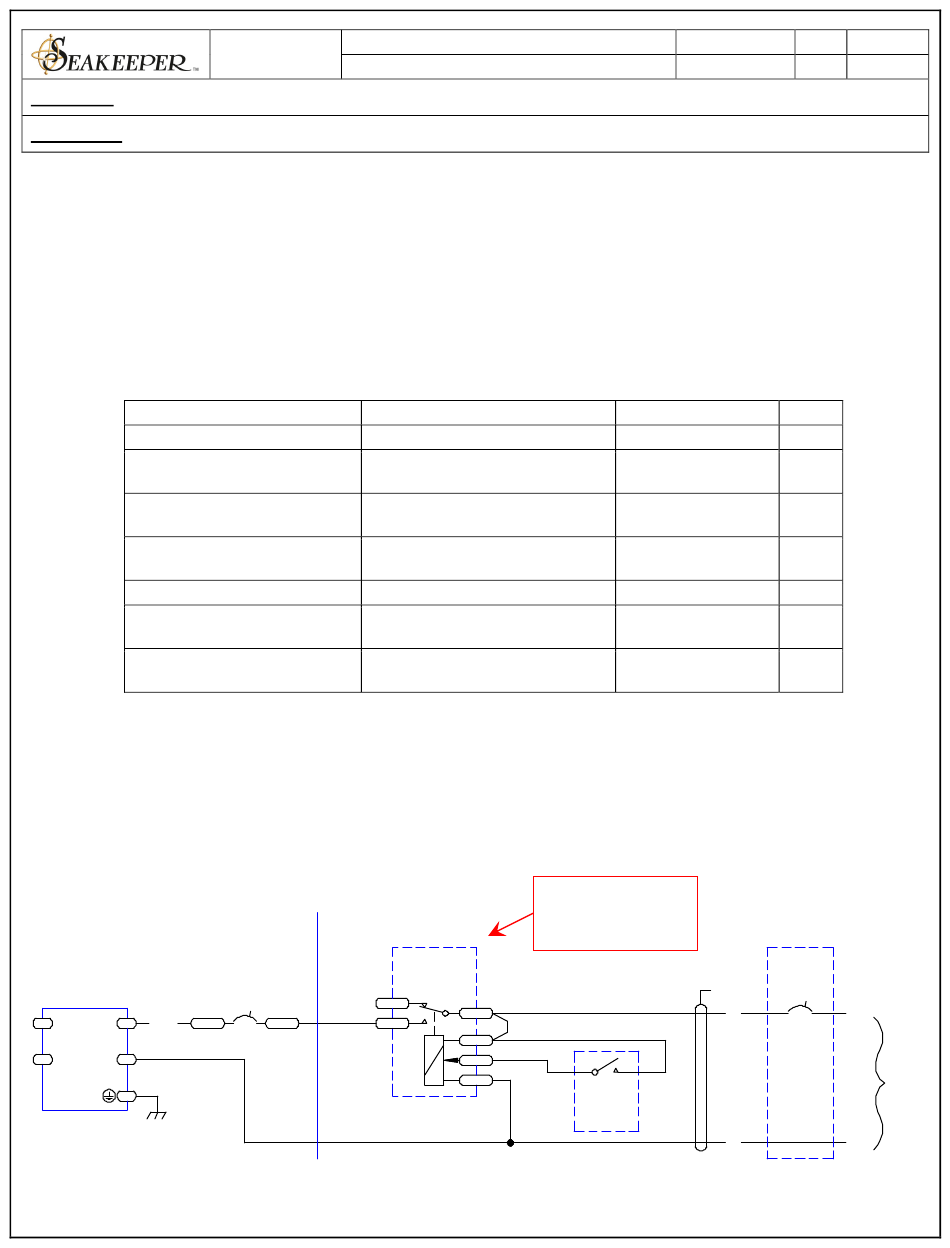

FIGURE 1 – TIME DELAY RELAY & OPERATING SWITCH WIRING
Part Number
(or equivalent)
(or equivalent)
(or equivalent)
Timer Relay may be
located anywhere
in-line with CABLE 1
CUSTOMER
SUPPLIED
TIME DELAY
RELAY
15
OPERATING SWITCH
A1
S
A2
MAGNECRAFT
821TD10H-UNI
Document #:
90057
Scope of Supply
Customer Supplied
Customer Supplied
Customer Supplied
Customer Supplied
Customer Supplied
Customer Supplied
Customer Supplied
MAIN DISCONNECT
CABLE 1
1
CUSTOMER
SUPPLIED
SPST
SWITCH
2
Rev: Page:
1 1 of 6
Qty
1
1
1
150
mm
A/R
2 ea
1 ea
SWITCH
CUSTOMER
SUPPLIED
CIRCUIT
BREAKER
(+)
10 A
24
VDC,
10A
(-)
