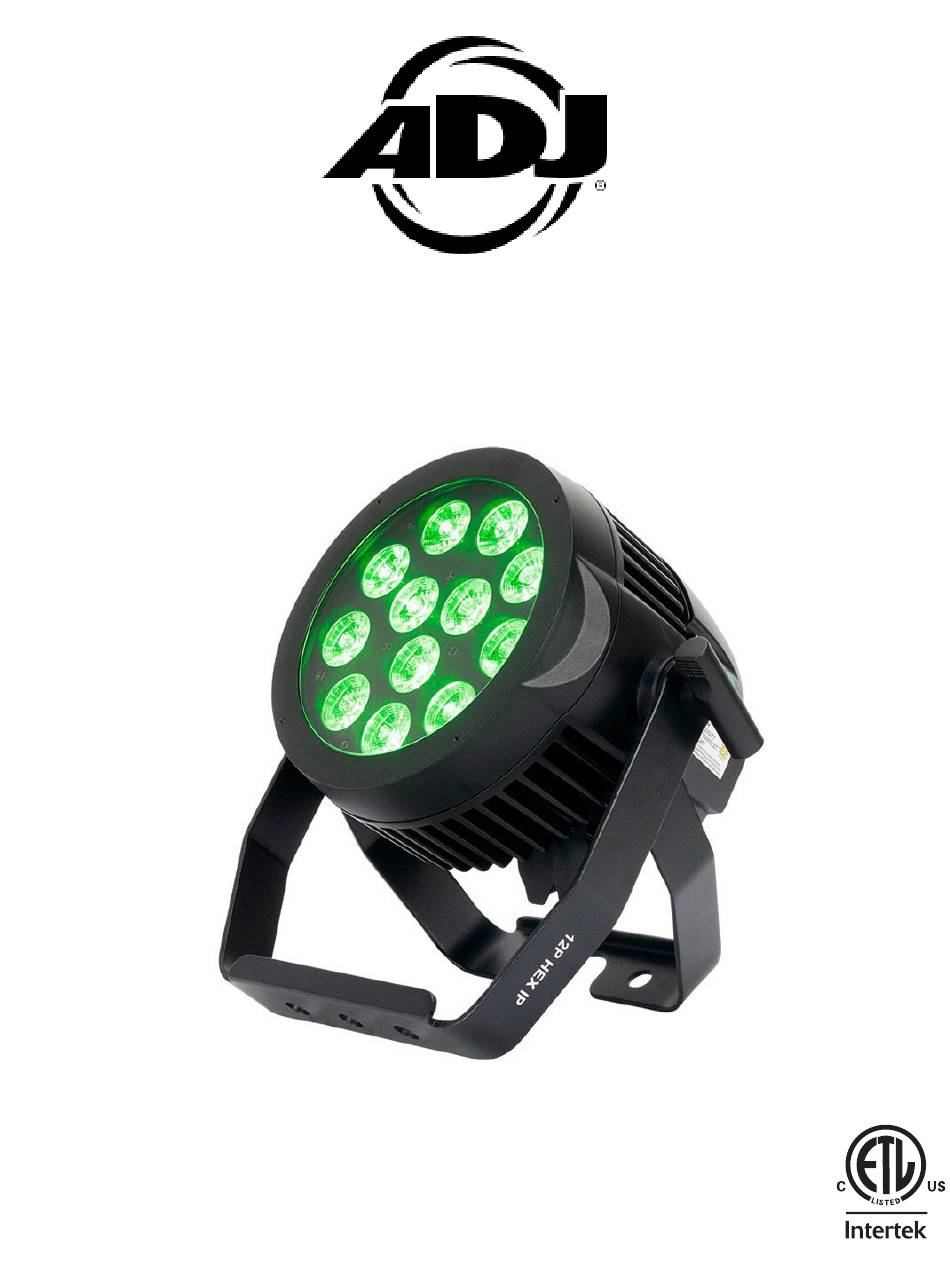

  • Page 1 12P HEX IP User Manual 4010765...
  • Page 2 ©2022 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying prod- uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    T A B L E O F C O N T E N T S Introduction Limited Warranty (USA Only) Warranty Registration | Features | Installation Safety Precautions IP Notice Layout Remote Device Management (RDM) DMX Set Up DMX Addressing DMX Traits Color Macro Chart System Menu (V1.04)

  • Page 4: Introduction

    I N T R O D U C T I O N Unpacking: Thank you for purchasing the 12P Hex IP by ADJ Products, LLC. Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping.

  • Page 5: Limited Warranty (Usa Only)

    The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect.

  • Page 6: Warranty Registration | Features | Installation

    W A R R A N T Y R E G I S T R A T I O N The 12P Hex IP carries a 2 year (730 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number.

  • Page 7: Safety Precautions

    S A F E T Y P R E C A U T I O N S • Do not attempt to operate this unit if the power cord has been frayed or broken. • Do not attempt to remove or break off the ground prong from the electrical cord. This prong is used to reduce the risk of electrical shock and fire in the event of an internal short.
  • Page 8 S A F E T Y P R E C A U T I O N S RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION! FIXTURE EMITS HIGH INTENSITY ULTRAVIOLET (UV) LIGHT FROM THE UV LED. WEAR PROPER EYE AND SKIN PROTECTION. AVOID PROLONGED PERIODS OF EXPOSURE TO THE UV LED.

  • Page 9: Ip Notice

    NOT be subject to any warranty claims and/or repairs. OPTIONAL CORROSION RESISTANT COATING Optional Corrosion-Resistant Coatings may be available for this fixture. Please consult your ADJ Products, LLC sales representative for details.

  • Page 10: Layout

    L A Y O U T LCD Screen Mode Button Up Button Down Button Enter Button IP65 Locking Power Connection In/Out IP65 Locking 5-Pin XLR Connector In/Out...

  • Page 11: Remote Device Management (Rdm)

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

  • Page 12: Dmx Set Up

    2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior. Termination reduces signal errors and avoids signal transmission problems and interference.

  • Page 13: Dmx Addressing

    D M X A D D R E S S I N G All fixtures should be given a DMX starting address when using a DMX controller, so that the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen”...

  • Page 14: Dmx Traits

    D M X T R A I T S CHANNEL DMX VALUES FUNCTION 6 CH 7 CH 8 CH 13 CH Red, 0% to 100% 000 - 255 Green, 0% to 100% 000 - 255 Blue, 0% to 100% 000 - 255 White, 0% to 100% 000 - 255 Amber, 0% to 100%...
  • Page 15 D M X T R A I T S CHANNEL DMX VALUES FUNCTION 6 CH 7 CH 8 CH 13 CH Dimmer Modes 000 - 020 Standard 021 - 040 Stage 041 - 060 061 - 080 Architectural 081 - 100 Theatre 101 - 255 Default to unit setting...

  • Page 16: Color Macro Chart

    C O L O R M A C R O C H A R T COLOR INTENSITY COLOR VALUES GREEN BLUE WHITE AMBER Color1 001 - 004 Color2 005 - 008 Color3 009 - 012 Color4 013 - 016 Color5 017 - 020 Color6 021 - 024...
  • Page 17 C O L O R M A C R O C H A R T COLOR INTENSITY COLOR VALUES GREEN BLUE WHITE AMBER Color40 157 - 160 Color41 161 - 164 Color42 165 - 168 Color43 169 - 172 Color44 173 - 176 Color45 177 - 180...

  • Page 18: System Menu (V1.04)

    S Y S T E M M E N U ( V 1 . 0 4 ) Update Wait... Display Menu Vx.xx Menu Set ADDR 001 - 506 DMX Addressing Set ADDR Menu DMX Channel CHxx User Mode Modes Standard Stage Dimmer Curve Set- DimCurve...
  • Page 19 S Y S T E M M E N U ( V 1 . 0 4 ) 900, 1000, 1100, 1200, 1300, 1400, 1500, Set LED Refresh Fre_hz 2500, 4000, 5000, 10k, 15k, 20k, 25k Frequency Rate Menu Function Set Gamma Bright- (continued) Gamma ness...

  • Page 20: System Menu (V1.07)

    S Y S T E M M E N U ( V 1 . 0 7 ) Update Wait... Display Menu Vx.xx Menu Set ADDR 001 - 506 DMX Addressing Set ADDR Menu DMX Channel CHxx User Mode Modes Standard Stage Dimmer Mode Set- Dim Mode...
  • Page 21 S Y S T E M M E N U ( V 1 . 0 7 ) 900, 1000, 1100, 1200, 1300, 1400, 1500, Set LED Refresh Fre_hz 2500, 4000, 5000, 10k, 15k, 20k, 25k Frequency Rate Menu Linear Function Square (continued) Dim Curve...

  • Page 22: Operating Instructions

    O P E R A T I N G I N S T R U C T I O N S DMX Addressing: Operating through a DMX controller gives the user the freedom to create custom programs tailored to his or her own needs. This device offers 4 DMX modes: 6 Channel mode, 7 Channel mode, 8 Channel mode, and a 13 Channel mode.
  • Page 23 O P E R A T I N G I N S T R U C T I O N S Static Color Mode: 1. Access the main menu, and press the UP or DOWN buttons so that “Menu Function” is highlight- ed, then press ENTER.
  • Page 24 O P E R A T I N G I N S T R U C T I O N S Unit Temperature: Switch the temperature units between Celsius and Fahrenheit. 1. Access the main menu and press the UP or DOWN buttons until “Menu Function” is displayed, and then press ENTER.
  • Page 25 O P E R A T I N G I N S T R U C T I O N S Time Information: 1. Access the main menu and press the UP or DOWN buttons until “Menu Info” is displayed, and then press ENTER.

  • Page 26: Primary-Secondary Configuration | Multiple Unit Power Linking

    P R I M A R Y - S E C O N D A R Y C O N F I G U R A T I O N This function the units to be linked together to run in a Primary-Secondary set-up, in which one unit will act as the controlling unit and the others will react to the controlling unit’s built-in programs.

  • Page 27: Dimmer Mode Chart | Dimmer Curve Chart

    D I M M E R M O D E C H A R T 0 sec Fade Time Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) D I M M E R C U R V E C H A R T 100% 100% 100%...

  • Page 28: Dimensional Drawing

    D I M E N S I O N A L D R A W I N G *NOT TO SCALE 6.64” / 168.7mm 11.73” / 298mm 2.9” / 73.6mm 10.40” / 264.1mm...

  • Page 29: Trouble Shooting | Cleaning

    T R O U B L E S H O O T I N G Below is a common problem the user may encounter, with potential solutions. Unit not responding to DMX: Check that the DMX cables are connected and wired correctly (pin 3 is “hot”; on some other DMX devices, pin 2 may be “hot”).

  • Page 30: Specifications

    S P E C I F I C A T I O N S Optical: • Light Source: 12 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV LED) - Rated at approximately 50,000 hrs.) • Beam angle: 25-degree Features: •...
