- Page 1 Installation and Operation Manual CSE2 F G75 1F PUMP STATION CSE2 F G75 1F...
-
Page 2: Table Of Contents
UPM3 FLEX AS 25-75 130 PUMP ..........3.2. CHECK VALVE ................3.3. FILTER WITH MAGNET ..............3.4. BALL VALVES ................EXAMPLES OF PUMP STATION CONNECTION ........PUMP STATION INSTALLATION ............. TEMPERATURE SENSOR INSTALLATION ..........OPTIONAL ACCESSORIES ..............Regulus CSE2 F G75 1F - www.regulus.eu │... -
Page 3: Introduction

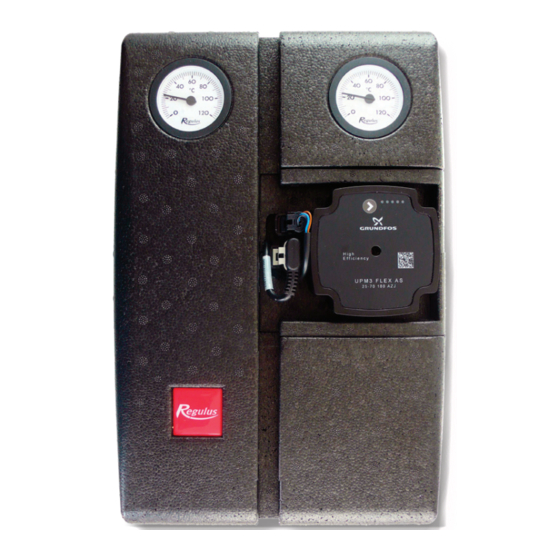

INTRODUCTION CSE2 F G75 1F Twin-line pump station is designed for unmixed heating circuits or hot water storage tank heating circuits. The pump station includes a filter with magnet, so it is also suitable for older steel pipe systems. It can be easily mounted on a wall or on a manifold for multiple heating circuits. -
Page 4: Pump Station Components
5 – Dirt filter with magnet 6 – Lever for ball valves 7 – Ball valve w. sheath for temperature sensor (heating circuit outlet) 8 – Ball valve w. sheath for temperature sensor (heating circuit inlet) Regulus CSE2 F G75 1F - www.regulus.eu │... -
Page 5: Upm3 Flex As 25-75 130 Pump
- without PWM signal the pump runs at the max. speed according to the selected curve Performance Curves Curve Max. H Max. P (upper (lower graph) graph) 33 W 39 W 7.5 m 60 W Regulus CSE2 F G75 1F - www.regulus.eu │... - Page 6 If you pass the desired setting, you have to go one more round until it appears again. ERROR DISPLAY DISPLAY ERROR Seized pump Too low power supply voltage Electric fault Regulus CSE2 F G75 1F - www.regulus.eu │...
-
Page 7: Check Valve
As a result, unintentional closure of the system by an unauthorized person is not possible. OPEN CLOSED groove in the flow direction groove perpendicular to the flow direction Regulus CSE2 F G75 1F - www.regulus.eu │... -
Page 8: Examples Of Pump Station Connection
EXAMPLES OF PUMP STATION CONNECTION Regulus CSE2 F G75 1F - www.regulus.eu │... - Page 9 Regulus CSE2 F G75 1F - www.regulus.eu │...
-
Page 10: Pump Station Installation
Permitted and prohibited positions of the pump station Permitted positions Conditionally permissible positions Prohibited positions (may be used when a filter is replaced by the filter replacement section, code 19017) Regulus CSE2 F G75 1F - www.regulus.eu │... -
Page 11: Temperature Sensor Installation
Temperature sensor placement Securing the temperature sensor with the screw Running the sensor cable through the recess in the insulation Regulus CSE2 F G75 1F - www.regulus.eu │... - Page 12 Trimming the cable passage lock Installed sensors Regulus CSE2 F G75 1F - www.regulus.eu │...
-
Page 13: Optional Accessories
The following optional accessories are available for the pump station: A – Filter replacement section for CSE2 Code 19017 Loosen the unions above and under Remove the filter and mount the filter the filter. replacement section (code 19017) in its place. Regulus CSE2 F G75 1F - www.regulus.eu │... - Page 14 Union 1“ Fu/M incl. gasket Code 15695 Remove both the connecting fittings. Install the union 15695 in their place, then attach the ball valve w. drain valve (17415) to the union. Regulus CSE2 F G75 1F - www.regulus.eu │...
- Page 15 (for flow line of CSE2 pump stations) Code 187977 Remove both the connecting fittings. Install the extended union with check valve (18653) to the return line. Install the extended union (18797) to the flow line. Regulus CSE2 F G75 1F - www.regulus.eu │...
- Page 16 Code 17920 Remove both the connecting fittings. Replace them with the union 17920 intended for connection to a manifold. v1.1-06/2022 ©2022 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
