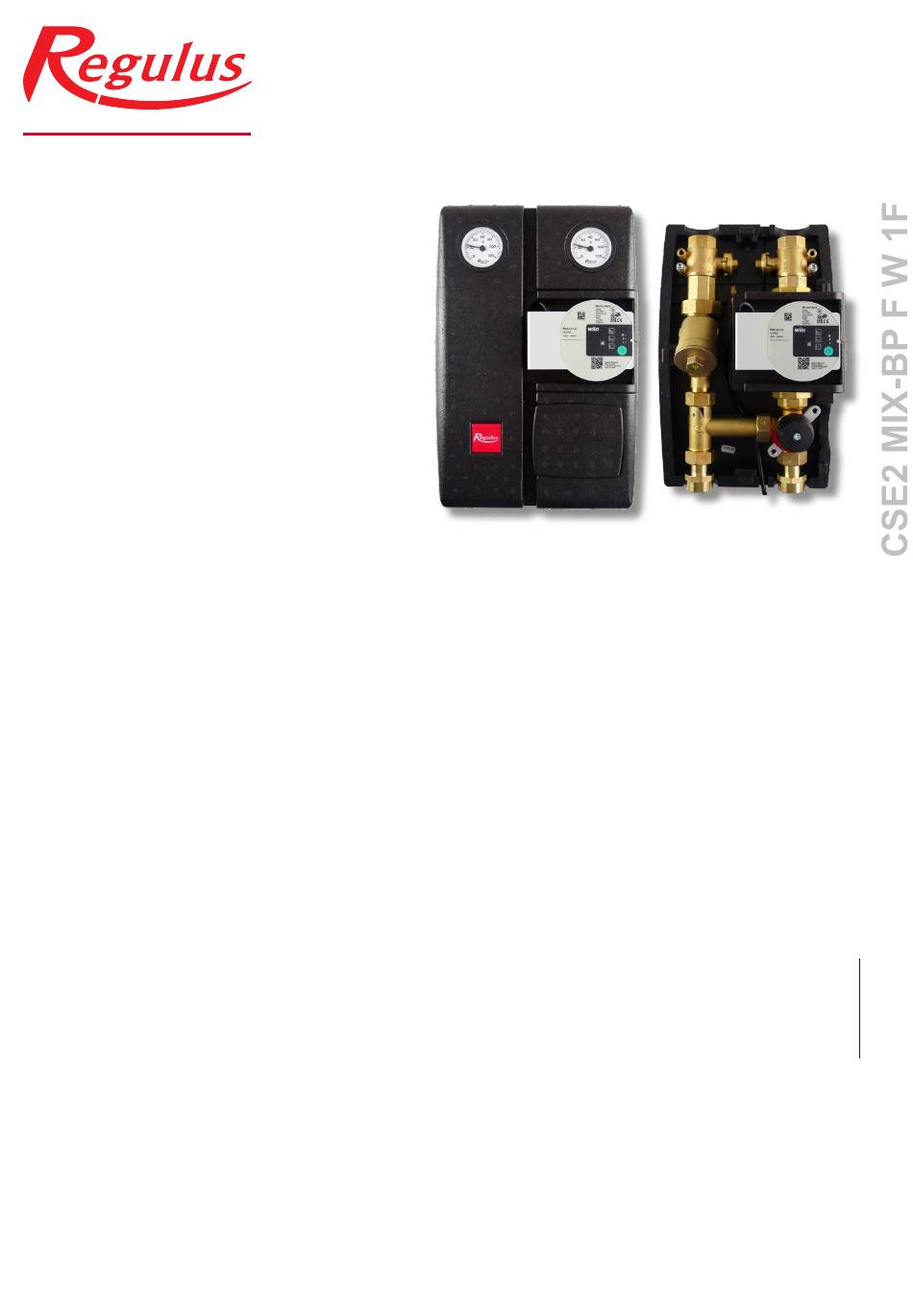

  • Page 1 Installation and Operation Manual CSE2 MIX-BP F W 1F PUMP STATION CSE2 MIX-BP F W 1F...

  • Page 2: Table Of Contents

    WILO PARA 25/8 SC PUMP ............3.2. LK 840 MIXING VALVE ..............3.3. CHECK VALVE ................3.4. FILTER WITH MAGNET ..............3.5. BALL VALVES ................PUMP STATION INSTALLATION ............. TEMPERATURE SENSOR INSTALLATION ..........OPTIONAL ACCESSORIES ..............Regulus CSE2 MIX-BP F W 1F - www.regulus.eu │...

  • Page 3: Introduction

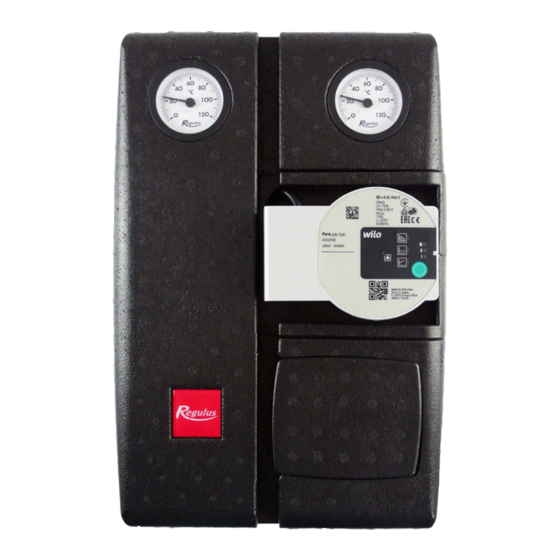

    INTRODUCTION CSE2 MIX-BP F W 1F twin-line pump station is designed for mixed heating circuits. It provides flow through the heating system, mixes to the outlet temperature. Since the mixing valve is not fitted with an actuator, any actuator may be used that will meet the needs of the particular system and control.

  • Page 4: Pump Station Components

    6 – Lever for ball valves 7 – Ball valve w. sheath for temperature sensor (heating circuit outlet) 8 – Ball valve w. sheath for temperature sensor (heating circuit inlet) 9 – LK 840 mixing valve Regulus CSE2 MIX-BP F W 1F - www.regulus.eu │...

  • Page 5: Wilo Para 25/8 Sc Pump

    Energy Efficiency Index (EEI) ≤ 0.21 by EN 16297/3 IP rating IPX4D Motor protection integrated Pump Connection 1. POWER SUPPLY (1 ~ 230V, 50 Hz) brown (L) blue (N) yellow-green (PE) Regulus CSE2 MIX-BP F W 1F - www.regulus.eu │...
  • Page 6 To return to the factory settings, press and hold the operating button for at least 4 seconds (all LEDs flash for 1 second) and turn off the pump by unplugging. When switched on again, the pump will run at the factory settings. Regulus CSE2 MIX-BP F W 1F - www.regulus.eu │...
  • Page 7 / n=const and the respective performance curve). LED indicators Operating mode Performance curve constant speed constant speed Δp-v variable Δp-v variable Δp-v variable Δp-c constant Δp-c constant Δp-c constant constant speed Regulus CSE2 MIX-BP F W 1F - www.regulus.eu │...
  • Page 8 HW storage tank heating) and for single- line heating systems with radiators. The pump maintains a constant set delivery head regardless of pumping capacity. Q [m³/ h] max. P [W] Q [m³/ h] Regulus CSE2 MIX-BP F W 1F - www.regulus.eu │...

  • Page 9: Lk 840 Mixing Valve

    Leak rate < 1 % Kv at 5 mH O pressure difference Connections 3 x G 1“ M Materials Valve housing, spindle and member brass Gasket EPDM Mixing Valve Pressure Drop Diagram Regulus CSE2 MIX-BP F W 1F - www.regulus.eu │...

  • Page 10: Check Valve

    Dirt trapped on the magnet must be wiped off and then reassembled by inserting the strainer, screwing in and tightening the cap. Filter w. Magnet Pressure Drop Diagram Regulus CSE2 MIX-BP F W 1F - www.regulus.eu │...

  • Page 11: Ball Valves

    As a result, unintentional closure of the system by an unauthorized person is not possible. OPEN CLOSED groove in the flow direction groove perpendicular to the flow direction Regulus CSE2 MIX-BP F W 1F - www.regulus.eu │...

  • Page 12: Pump Station Installation

    The package includes a mounting kit that is used to fix the pump station to the intended place. The mounting kit includes: Screw 5x50, round head 2 pcs 6.4 stainless steel washer, DIN 9021/A2 2 pcs Wall plug 8mm TX 2 pcs Regulus CSE2 MIX-BP F W 1F - www.regulus.eu │...

  • Page 13: Temperature Sensor Installation

    Temperature sensor placement Securing the temperature sensor with the screw Running the sensor cable through the recess in the insulation Regulus CSE2 MIX-BP F W 1F - www.regulus.eu │...

  • Page 14: Optional Accessories

    Code 17928 – G 1“ Fu x G 5/4“ F manifold connection fittings Code 17920 Code 17928 v1.1-11/2020 ©2020 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
