Gas Spring
Shipping Brackets
(2 each side)

Filter Drum Assembly

To remove and replace the Filter Drum (FD) Assembly refer to Figure 5-9 and follow the
procedure below:
1. Using the Motor Control Pad, move the table up and in as far as it will go, and center
the C-arm, for easier access to the FD.
2. Using SURVEY, move the FD aperture to 7.
3. Turn off the QDR 4500 computer and instrument power switches, and main power
circuit breaker.
4. Remove the lower C-arm cover by removing 2 Phillips screws and sliding it out from
the front. Also remove the bottom cover.
5. Remove the 4 Phillips screws holding the XRC (see Figure 5-9).
5-20

QDR 4500 Technical Manual
L-Brackets
X-Ray Controller Assembly

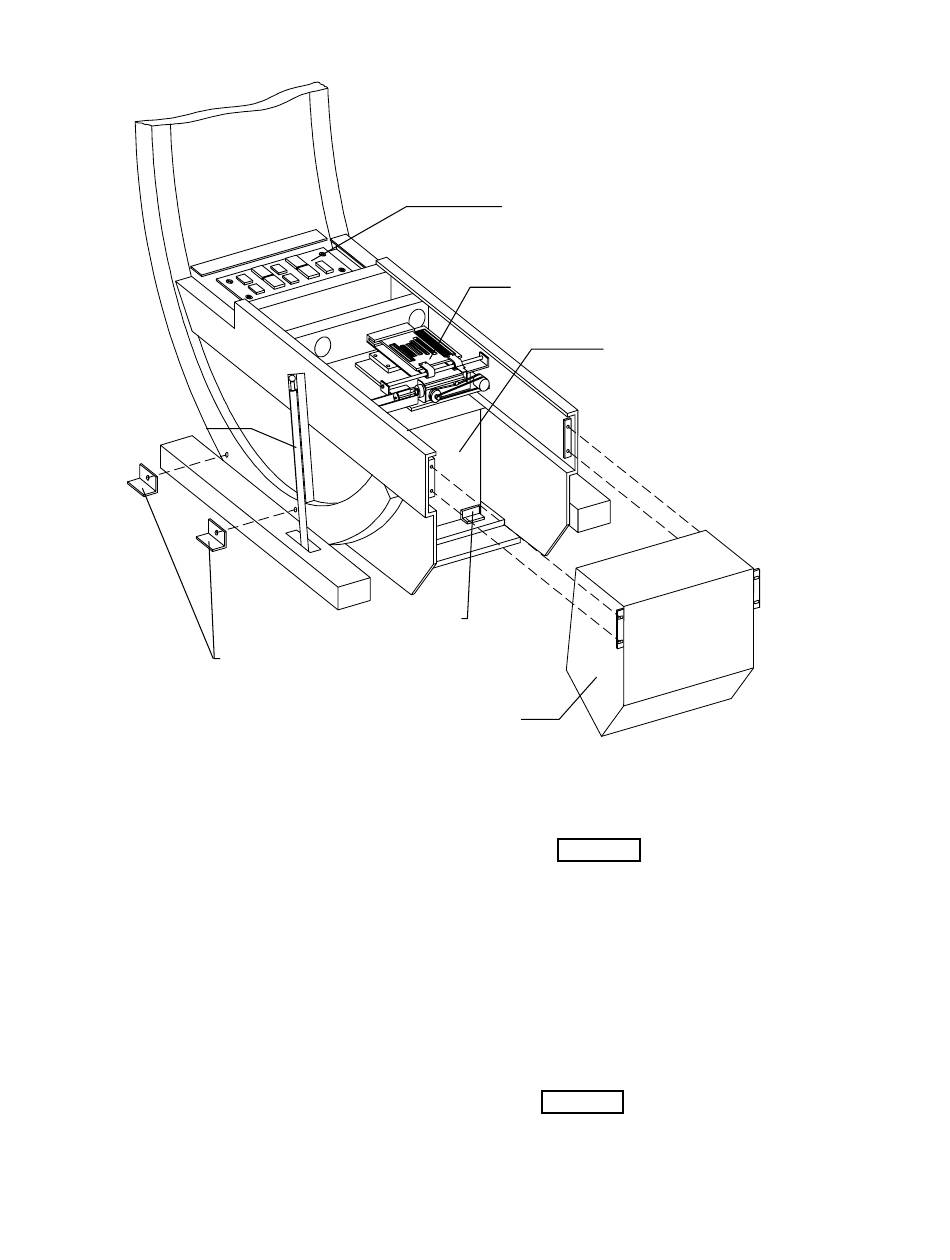

Figure 5-9. Lower C-Arm FRUs

C-Arm Interface Bd
Filter Drum Assembly
Tank Assembly
