- Page 1 HDMI KVM Switch （8 Port / 16 Port） User Manual www.kinankvm.com @all right reserved Shenzhen Kinan Technology Co., Ltd. Printing date：2022/04 Version：V1.1...
- Page 2 8 Port /16 Port User Manual Overview Descriptions HDMI switch is a control device which controls multiple computers from a single console (keyboard, video and mouse). It is easy and fast to install the KVM switch, you just need to connect corresponding cables to the right ports of the KVM.
- Page 3 8 Port /16 Port User Manual Hardware Installation Rack Mounting Make sure all the computers and external device are shut down before installation. Put the KVM switch in place, screw the brackets to the two sides of the KVM to install the KVM in the standard 19”...
- Page 4 8 Port /16 Port User Manual Rear View Instruction Grounded Screw Power adapter socket Console HDMI port Console USB port ( keyboard, Mouse) KVM Port Installation Diagram Make sure the KVM has been connected to the ground(①) Connect the power adapter to KVM(②) ...

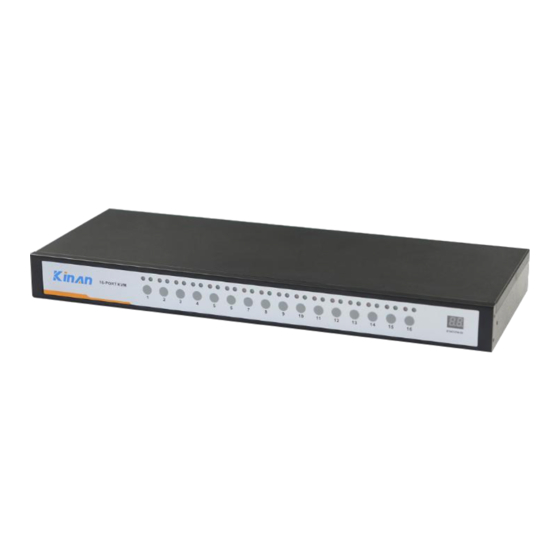

- Page 5 8 Port /16 Port User Manual LED Instructions 1.3 KVM front view Table 1.2 Components Function 1-8 or 1-16 1)Switching freely from port 1 to port 8/16 1）An online LED light(orange) indicates that the KVM has connected to its corresponding Port Selection computer and power on.
- Page 6 8 Port /16 Port User Manual Scroll + Left: Scroll + Right: to previous port to next port Left Right Hotkey Operation Double click【Scroll Lock】(in 2 seconds) , when you heard the beep sound, you are in hotkey mode. If there are no any operations in Hotkey Mode in 2 second, keyboard out hotkey mouse.
- Page 7 Hotkey cycling mode: 【Scroll-Lock】+【Scroll-Lock】 【L_Ctrl】--> 【Caps Lock】--> +【F】 【F12】-->【Scroll Lock】 【Scroll-Lock】+【Scroll-Lock】 Restore to the original factory setting +【R】 Specification Model RHD108 RHD116 Direct Computer Connection Max Computer Connection Port Selection Pushbutton, Hotkey Monitor 1x HDMI Type A Console Keyboard 2x USB type A...
- Page 8 8 Port /16 Port User Manual Operating 0-50℃ Temperature Environment Storage Temperature -20-60℃ Humidity 0-80%RH, Non-condensing Material Metal Physical Weight 2.0kg 2.2kg Features Dimension 440x169x43mm - 7 -...
