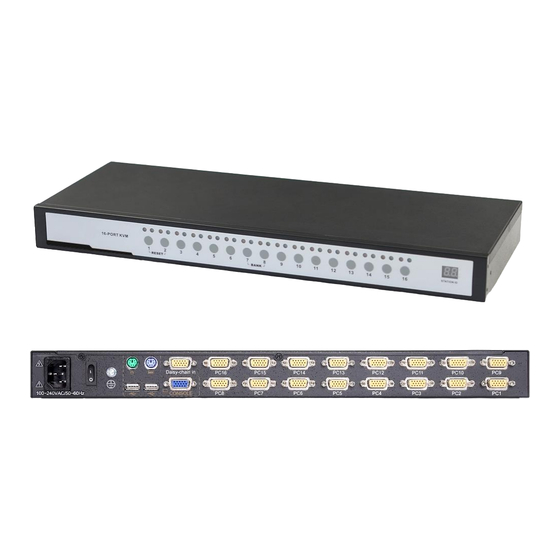

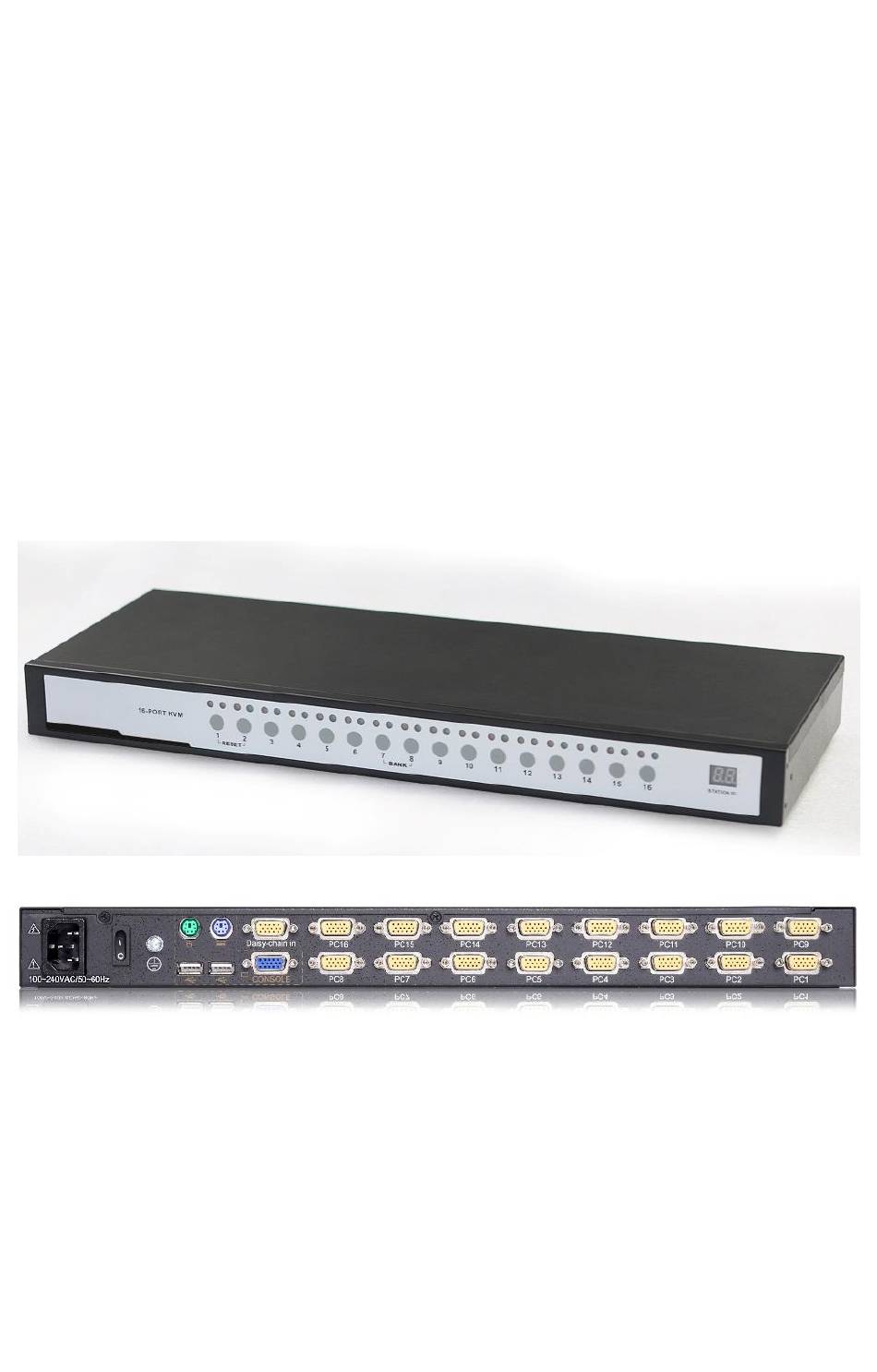

- Page 1 VGA KVM Switch (8 Port/ 16 Port) User Manual Print date: 2020/ 04 Version: V1.0...
- Page 2 User Manual 8 Port /16 Port The VGA KVM Switch integrates multiple-port VGA KVM switches in a 1U height console. Multiple computers can be controlled from the single monitor-keyboard-mouse console. Installation Instruction 1. Make sure the KVM switch has been connected to the ground. 2.
- Page 3 User Manual 8 Port /16 Port Opening the KVM The KVM makes two “beep” sounds and the LED flashes two times after power on. Then below window appears for you to input user name and password. The default password is “blank”, double click to 【Enter】 the OSD main menu to operate the KVM.
- Page 4 User Manual 8 Port /16 Port OSD Operation Double click the right button of the mouse or double click hotkey【Scroll Lock】 to invoke below OSD main menu. You can customize the OSD hotkeys; find more details in OSD function instructions. To access the OSD menu through keyboard: 1 .In the submenus that appear, moving the highlight bar to your selected port and then press Enter.
- Page 5 User Manual 8 Port /16 Port OSD Functions Menu Keys Submenu/Explanation Set User login-Set User login account and password Set accessible-Set access permissions BRC Mode -monitor multiple computers at the same time Load Default-reset the menu to the original factory default settings All-Lists all the ports on the installation Power On-lists only powered on ports that have attached...
- Page 6 User Manual 8 Port /16 Port OSD Hotkey Operation Operating instruction Press【F3】and move the highlight bar with【↓】 to select “OSD Hotkey” submenu . Press 【Enter】and below screen appears: KVM default hotkey:【Scroll Lock】 3.Select the“【Ctrl】 【Ctrl】 +【KVM Hotkey】 “ and press【Enter】, and then the 【Ctrl hotkey is availablein this hotkey mode, themouse hotkey can't enter the OSD menu.
- Page 7 User Manual 8 Port /16 Port Specifications Model KXM-0108 KXM-0116 Direct Computer Connections Port Selection Pushbuttons, hotkeys, OSD menu 1*HDB-15 Female(blue) monitor 1 * 6P Mini-DIN F(purple) Console keyboard 1* 6P Mini-DIN F(green) mouse 2* USB Type A Connector KVM port...
- Page 8 User Manual 8 Port /16 Port 1. The KVM console doesn’t work when I connect and use the console for the first time. Solutions: 1) Power off the KVM and disconnect the monitor, keyboard and mouse. 2) Disconnect all the signal cables connected to the KVM. 3) Disconnect all the signal cables connected to the PC, especially those cables with USB or PS/2 port.
