Summary of Contents for KinAn KA1302
- Page 1 2-Port USB Cable KVM Switch User Manual @ All rights reserved Shenzhen Kinan technology co., LTD Printing date：2021/11 Version： V1.3...

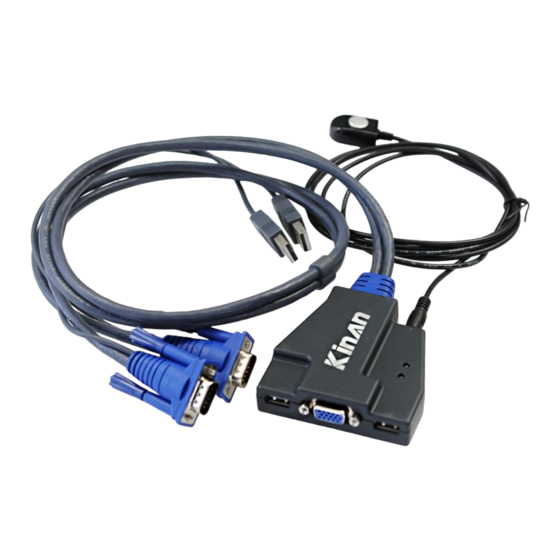

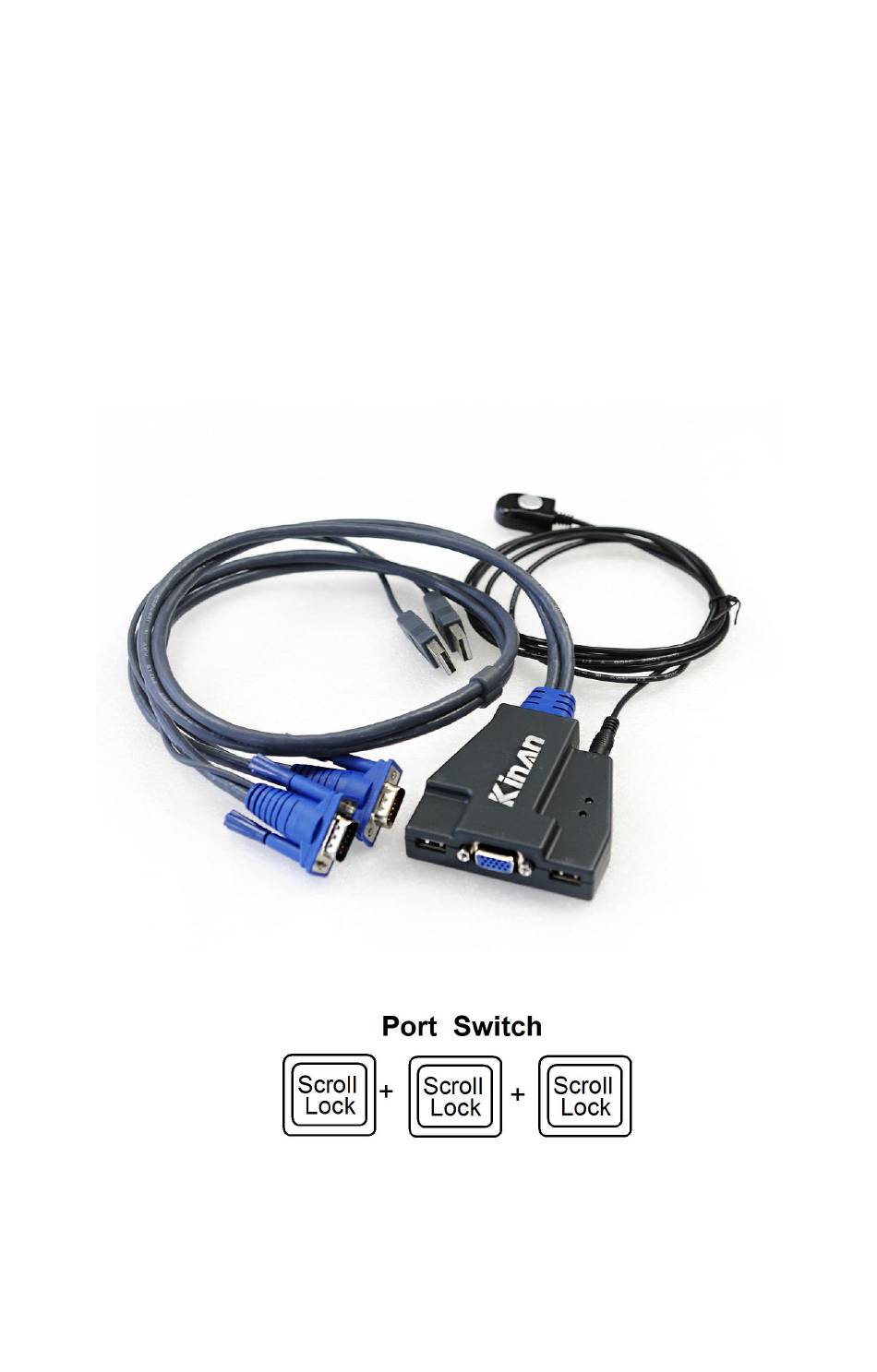

- Page 2 KA1302 User Manual Description 2-Port USB Cable KVM Switch, users can place the main unit under the desktop, through the Scroll-Lock key or position the Remote Switch reach on your desktop you can easily and quickly switch the computers. Feature Can be connected to a computer or KVM switch directly ，to operate...
- Page 3 KA1302 User Manual Hardware Review (See fig 1-1) Console PC Port Fig 1-1 Fig 1-1.1 Description： Console PC Port 6. USB Connector 1．Console USB Port 7. Video Connector 2．Console Monitor Port 3．Port LEDs 4.．A.S Marking: External button line 5．KVM Cables：Connect PC Port...
- Page 4 KA1302 User Manual Hardware Installation Instruction： Before beginning the installation procedure, ensure sure that all equipment to be connected is powered off To prevent damage to your installation, make sure that all devices are properly grounded Note ： Switching to computer shuts down the port, will not be able to use the...
- Page 5 KA1302 User Manual Technical Specifications Model KA1302 Direct 2 (DB15 Female blue) Computer Connections Maximum Port Selection Hot key, Pushbuttons Video 1x HDB-15 Female(blue) Console Keyboard 1x USB type A Ports Mouse 1x USB type A Video 1x HDB-15 Female(blue)
- Page 6 KA1302 User Manual Issue Solution Check whether the USB cable is connected to the host PC. Check whether the monitor is connected to the No display KVM switch. Connect the monitor to the PC host directly, and then power on the monitor and PC.
