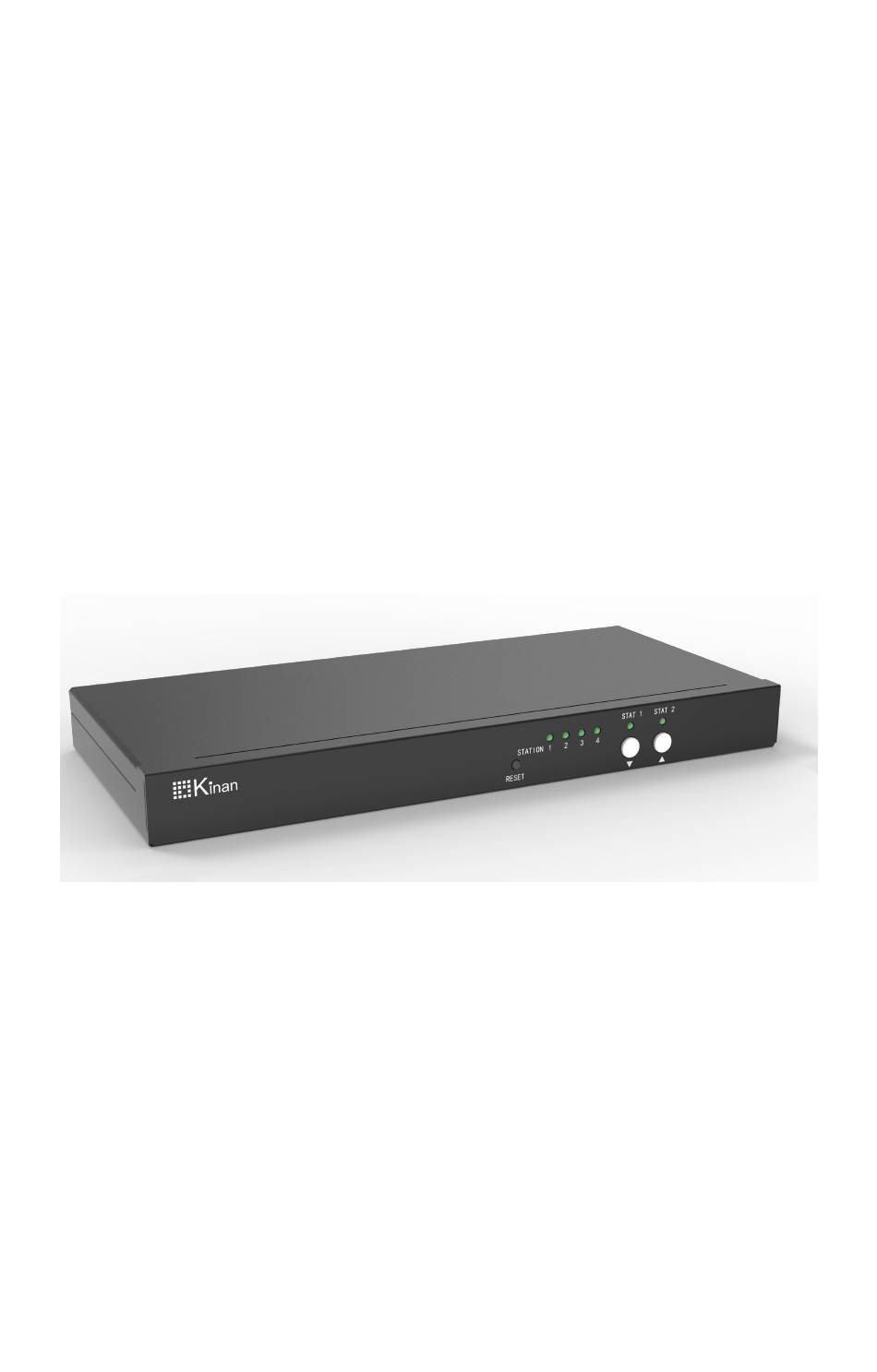

- Page 1 4 Port KM Switch (KM0104) User Manual www.kinankvm.com @all right reserved Shenzhen Kinan Technology Co., Ltd. Printing date：2021/09 Version： V2.1...
- Page 2 (Keyboard and Mouse) functions of four connected computers, including multi-head computers. It supports seamless Keyboard-Mouse Command on 4 computers from a single workstation. The KM0104 is completely driverless, requiring no software. It is compatible with any PC and all major operating systems without the need for software downloads.
- Page 3 Before starting the installation, please confirm that all devices are powered off. 1) Please connect USB keyboard and mouse to the USB port of the KM0104(①) 2) Connect computers and KM switch with attached USB cables(②) 3) Plug in the power adapter(③)

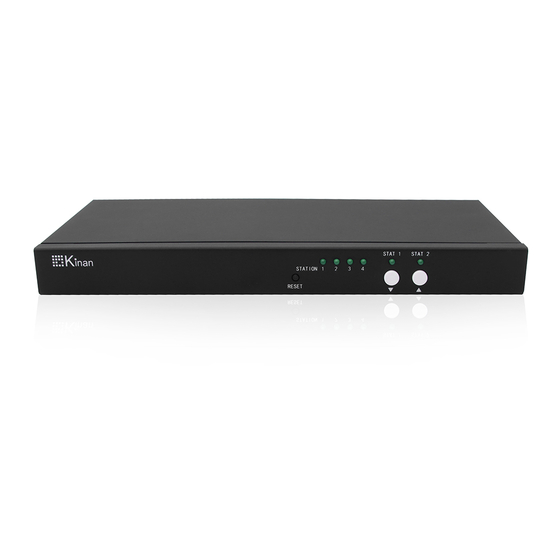

- Page 4 The flashing STAT1, STAT2 LED lights indicates normal communication Press [ ]+ [ ] key for 2 seconds to disable hotkey function. To enable the hotkey function, Press[ ]+ [ key for 2 seconds and restart the KM0104. - 3 -...
- Page 5 *The factory default setting is no hotkey. If you need hotkey operation, press the two white [ ] key for 2 seconds. The hotkey will be ] + [ enabled after restart the KM0104. Commands Hotkeys Description Switch Keyboard, Mouse, Audio and USB...
- Page 6 4 Port User Manual Single-Head Mode KM Switching Allows users to seamlessly switch between computers by moving the mouse cursor from one display to another, making it easy and efficient for users to switch between PCs. Multi-Head Mode KM Switching When using computers with multiple displays, simply press the scroll wheel twice and then move the mouse in the direction of the channel you desire to switch.
- Page 7 4 Port User Manual Specification Model KM0104 Computer Connections Pushbuttons, Hotkey, Mouse Port selection cursor Keyboard/Mouse 1 x double-layer USB type A User Console Speaker (out) 1 x Min Stereo Audio Keyboard/Mouse 4 x USB type B PC ports Speaker (in)
