- Page 1 2-Port Dual Monitor UHD HDMI KVM Switch www.kinankvm.com @All right reserved Shenzhen Kinan Technology Co., Ltd. Date:2022 / 08 Version: V1.1...
-
Page 2: User Notification
DM6232 User Manual User Notification · All information, documentation, and specifications contained in this manual are subject to change without prior notice. ·The manufacturer does not make any explicit or implied statement or guarantee about the contents of this document, especially for merchantability or fitness for any specific purpose. -
Page 3: Table Of Contents
DM6232 User Manual Content User Notification....................... 1 Overview ........................3 Product Features....................4 Required equipment....................5 Components.......................6 Front panel......................6 Back panel......................8 Hardware Settings..................... 9 Connection diagram.....................10 Mouse Switching..................... 10 Hotkey Operation ....................11 Specifications......................12 Frequently Asked Questions................... 13 - 2 -... -
Page 4: Overview
DM6232 User Manual Overview DM6232 is a 2 in 2 out UHD KVM switch that allows users to access to two dual HDMI interface computers via a single USB keyboard and mouse. Both input and output support HDMI2.0. With a built-in 1 USB 3.0 hub and 2.1 channel audio for rich bass surround sound. It supports superior video quality up to 4K UHD @ 60 Hz and 4K DCI @ 60Hz,displaying vivid high-definition images and providing high-quality sound effects for music, movies and games. -
Page 5: Product Features
DM6232 User Manual Product Features A single USB keyboard and mouse controls 2 computers with dual HDMI interface. Supports HDMI2.0 input and output. Supports screen dynamic synchronization display---optimize display resolution, speed up switching between systems, and ensure that the screen can be displayed normally (when switching ports, the windows opened on the extended screen will not be restored to their default setting of the main screen). -
Page 6: Required Equipment
DM6232 User Manual Required equipment Please follow the table below to prepare the required equipment and cables. DM6232 Two HDMI monitors One USB mouse Console One USB keyboard Microphone and Speaker Two HDMI ports Computers ... -
Page 7: Components
DM6232 User Manual Components Front panel Function Description This panel contains three icons to indicate the mode LED Status and port status. And the mode and port selection Panel buttons have three corresponding LED icons to indicate the status - KVM, audio and USB HUB. Port selection Press the button to switch to the button... - Page 8 DM6232 User Manual LED status panel Components Port LED Mode Selection LED Audio LED KVM LED USB HUB LED Mode selection button and mode indicator Pressing the Mode Selection button at different times will light up different Mode LED . Press Button Mode LED that lights up KVM、Audio、USB HUB...
-

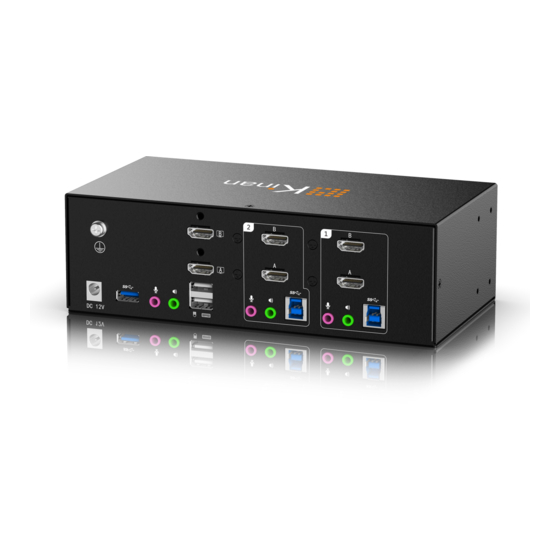

Page 9: Back Panel

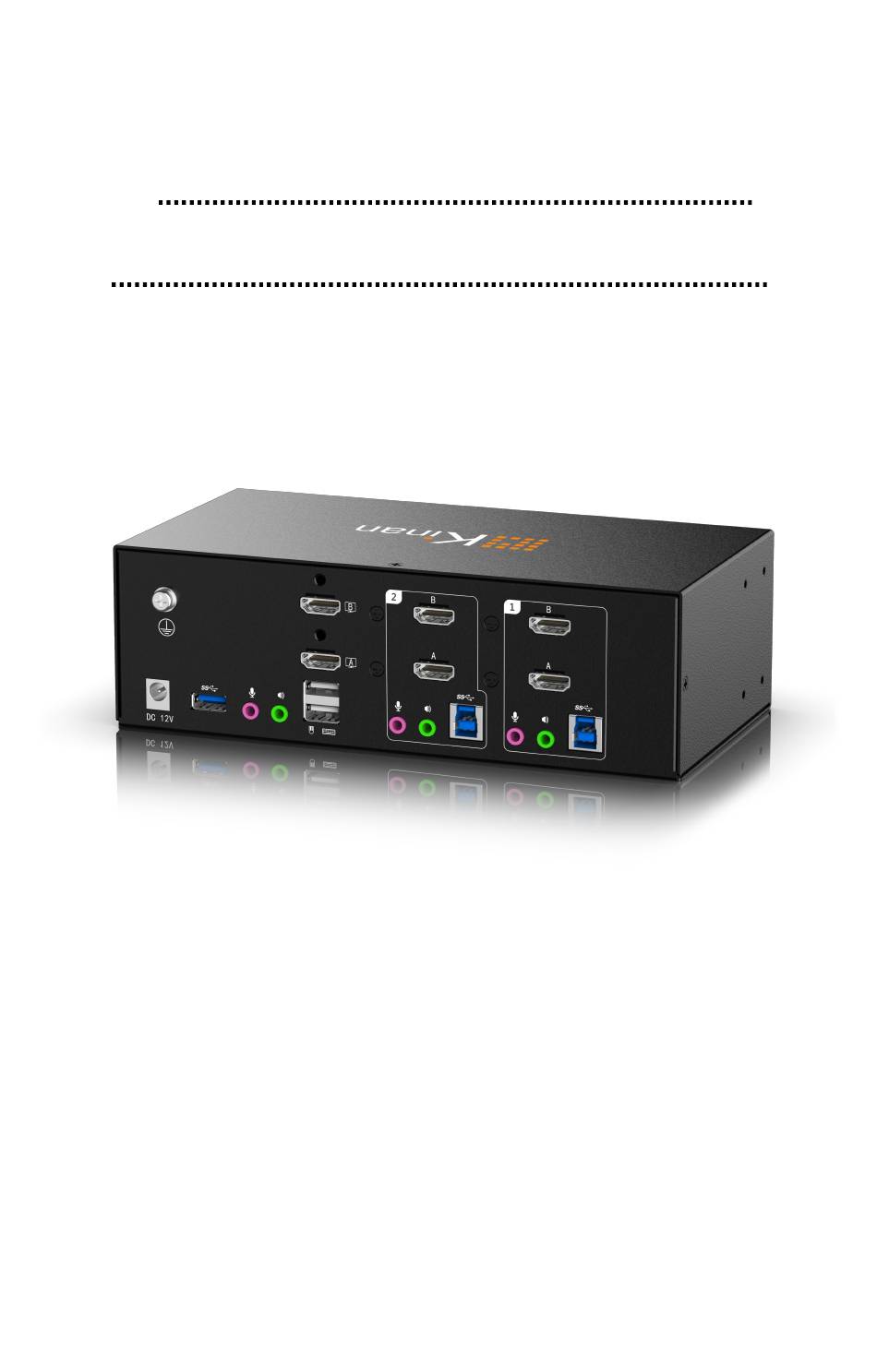

DM6232 User Manual Back panel Function Description Power input Connect to the 12V power supply Plug USB peripherals (printers, scanners, drivers, USB3.0 interface etc.) into this port Audio output and Connect speaker and microphone here microphone input USB HID ports Connect USB keyboard and USB mouse Audio input and Connect the computer's audio and microphone... -
Page 10: Hardware Settings
DM6232 User Manual Hardware Settings It is important that all connected equipment must be properly grounded to prevent damage from electrical surges or static electricity. Ensure that power of all devices will be connected to this installation are turned off. You must unplug the power cord of all computers with "Keyboard on"... -
Page 11: Connection Diagram
DM6232 User Manual Connection diagram Mouse Switching ： ： Middle + left Middle + right Switch to the previous port Switch to the next port Middle button + left button Switch to the previous port Mouse Switching Middle button + right button Switch to the next port - 10 -... -
Page 12: Hotkey Operation
DM6232 User Manual Hotkey Operation The DM series provides a wealth of hotkey functions to control and configure the device using the keyboard. Press [Scroll Lock] twice continuously (within 2S interval) to enter the keyboard hotkey mode. If no key is pressed within two seconds in the keyboard hotkey mode, the keyboard will exit the hotkey operation mode. -
Page 13: Specifications
DM6232 User Manual Specifications Model DM6232 Computer Connections Port Selection Pushbutton, Hotkey , Mouse Monitor 2 * HDMI Keyboard/mouse 2 * USB type A（White） Console Microphone (Pink)） 1* 3.5mm Audio Jack Speaker (Green) 1 * 3.5mm Audio Jack Connectors Video input 4 * HDMI USB input 2 * USB3.0 type B（Blue）... -
Page 14: Frequently Asked Questions
DM6232 User Manual Frequently Asked Questions Issue Solution Check whether the port indicator on the front panel of the device is on. Check whether the USB cable is connected (USB-B connects to the KVM switch, USB-A connects to the PC host ). No display Check whether the monitor is connected to the KVM switch.
