Summary of Contents for KinAn KM0104

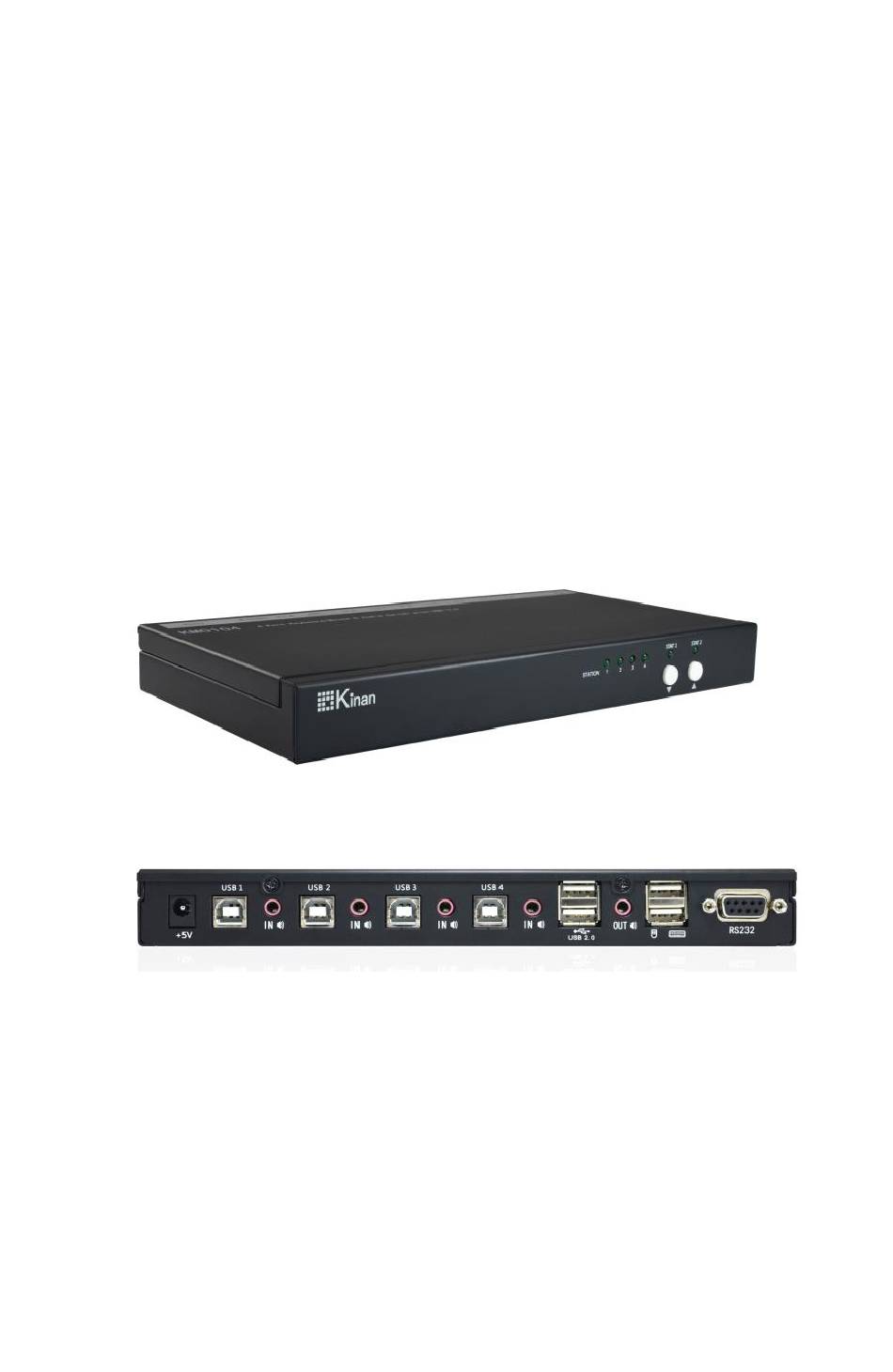

- Page 1 4 Port Keyboard-Mouse Switch KM0104 www.kinankvm.com Version: V1.1...
- Page 2 (Keyboard and Mouse) functions of four connected computers, including multi-head computers. It supports seamless Keyboard-Mouse Command on 4 computers from a single workstation. The KM0104 is completely driverless, requiring no software. It is compatible with any PC and all major operating systems without the need for software downloads.
- Page 3 User Manual Installation Before starting the installation, please confirm that all devices are powered off. 1） Please plug USB keyboard and mouse in USB port(①) 2） Connect computers and KM switch with USB cable(②) 3） Plug in the power adapter(③) 4）...

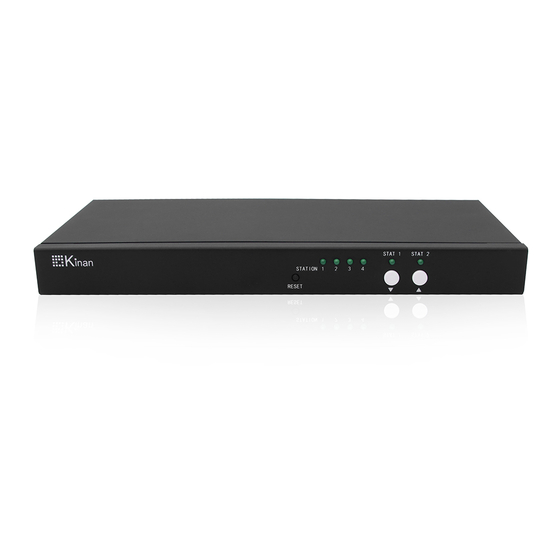

- Page 4 User Manual Pushbuttons Button Description Switch Keyboard, Mouse and Audio to Previous Channel STATTION (1-4): Switch to the previous channel, the corresponding LED light is on The flashing STAT1, STAT2 LED lights indicates normal communication Switch Keyboard, Mouse and Audio to Next Channel STATTION (1-4): Switch to the previous channel, the corresponding LED light is on The flashing STAT1, STAT2 LED lights indicates...
- Page 5 User Manual Hotkeys Commands Hotkeys Description Switch Keyboard, Mouse, Audio and PC switching L_Ctrl + L_Ctrl + port# USB from port 1 to port 4 L_Ctrl + L_Ctrl + M +0 All PC exit the Cross-display mode 1：Horizontal Cross-display mode Mode selection L_Ctrl + L_Ctrl + M + 2：Vertical Cross-display mode...
- Page 6 User Manual Single-Head Mode KM Switching: Allows users to seamlessly switch between computers by moving the mouse cursor from one display to another, making it easy and efficient for users to switch between PCs. Multi-Head Mode KM Switching: When using computers with multiple displays, simply press the scroll wheel twice and then move the mouse in the direction of the channel you desire to switch.
-
Page 7: Specification
User Manual Specification Model KM0104 Computer Connections Port selection Pushbuttons, Hotkey, Mouse Keyboard/Mouse 1 x double-layer USB type A User Console Speaker (out) 1 x Min Stereo Audio Keyboard/Mouse 4 x USB type B PC ports Connectors Speaker (in) 4 x Min Stereo Audio...
