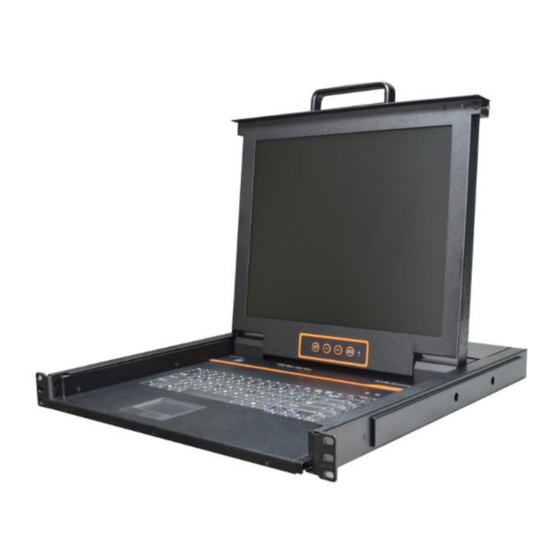

- Page 1 17” 4 port VGA KVM Switch User Manual Printing date: 2018/01 Version: V1.1...
-
Page 2: Product Description
It is easy and fast to install the KVM console; you just need to connect corresponding cables to the right ports of KVM and its module without software configuration. As many as 4 computers can be directly connected to the XL1704; it supports multiple hardware platforms and multiple operating systems. Product Features ... -
Page 3: Product Overview
4 Port User Manual Product Overview Figure 1-1 front view 1. LCD monitor 6. Touchpad 2. Rear bracket 7. Handle 3. OSD controls 8. Release lock 4. Front bracket 9. Display panel 5. Keyboard 10. Switching LEDs Figure 1-2 1. PC connection port: 4 ports 2. -
Page 4: Installation
4 Port User Manual Installation 1. Make sure the KVM has been connected to the ground (1 in the diagram ) 2. Connect the KVM with the computer according to 2 in the diagram 3. Connect power cable to KVM port as shown in 3 in the diagram 4. - Page 5 4 Port User Manual 3) Open the LCD panel, the LCD display can be opened up to 108°. Best Resolution : 1280x1024@60Hz Figure 1-5 open angle of the console 4) Power on the KVM, the power LED will turn to green after power on. 5) Power on computer or server after power on KVM and you will see green light at each port.
-
Page 6: Menu Select
4 Port User Manual LCD OSD Configuration The LCD OSD allows you to set up and configure the LCD display. Buttons Functions Press this button invokes the menu function and MENU SELECT brings up the main menu. Press this button exits the current menu and returns to the previous menu or presses this EXIT/AUTO button exits the LCD OSD. - Page 7 4 Port User Manual Hot Key Operations Press 【L_Ctrl】 key twice, you can use the hot keys after hearing a warning sound. Keyboard mode: The keyboard will exit the hot key mode if no operation in 2 seconds. See below hot keys operation instructions: Press【L_Ctrl】...
-
Page 8: Specifications
4 Port User Manual Specifications Model XL1704 Direct Computer Connections Port Keyboard, mouse PS/2, USB Simulation LCD type SXGA TFT View area 17 " Resolution 1280×1024@60Hz LCD monitor Color Display 16.7 M 250cd/m²（ T y p ） Brightness 1000 : 1 （ T y p ）...
